MTD OHV Engines 1X65TU 159cc Engine

Model: 1X65TU 159cc Engine

Back To Assemblies

Save Part Not Listed?
product name

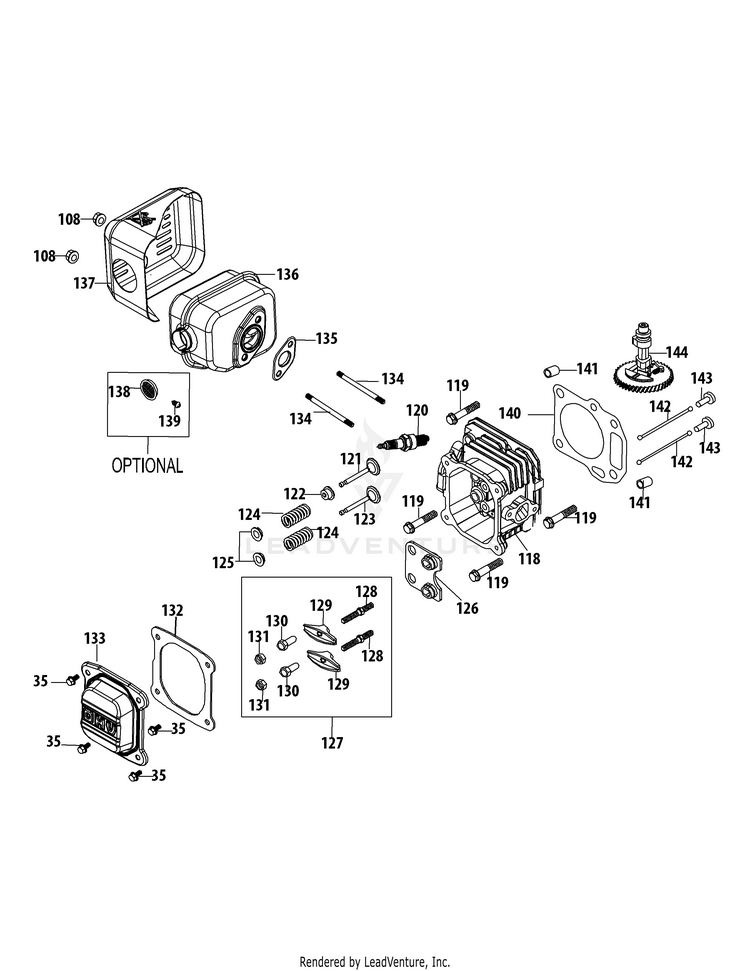

1X65TU Cylinder Head

...
...
35
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
108
HEX NUT MTD-712-05015
...
118
CYLINDER HEAD ASSEMBLY MTD-951-05151
...
118
CYLINDER HEAD MTD-951-14639A
...
119
BOLT-M8 x 54 MTD-910-06185
...
120
SPARK PLUG MTD-951-14437
...
120
GENUINE FACTORY PARTS® Walk Spark Plug 951-14437 Retail Packaged Part MTD-490-250-F014
...
121
INTAKE VALVE MTD-951-14640A
...
122
INTAKE VALVE SEAL MTD-921-04237A
...
123
EXHAUST VALVE MTD-951-14641
...
124
VALVE SPRING MTD-751P12004A
...
125
Valve Spring Retainer MTD-951-11977
...
126
PUSH ROD GUIDE MTD-951-11687A
...
127
ROCKER ARM MTD-951-11606A
...
128
PIVOT STUD MTD-710-04902
...
129
ROCKER ARM MTD-951-12001
...
130
VALVE ADJUST NUT MTD-751-11123
...
131
PIVOT LOCKING NUT MTD-751-11124
...
132
VALVE COVER GASKET MTD-951-11551
...
133
VALVE COVER MTD-951-14609A
...
134
STUD M6-1 x 95 MTD-710-05094
...
135
MUFFLER GASKET MTD-951-14427A
...
136
MUFFLER MTD-951-10403
...
137
MUFFLER SHIELD MTD-951-15072
...
138
SPARK ARRESTOR MTD-951-10351A
...
139
SCREW M3.5 x 9.5 MTD-710-04983
...
140
CYLINDER HEAD GASKET MTD-951-14431
...
141
DOWEL PIN MTD-715-04108
...
142
PUSH ROD MTD-747P04862A
...
143
TAPPET MTD-951-14432A
...
144
CAMSHAFT ASSEMBLY MTD-951-11741
...
xx
COMPLETE ENGINE 159cc MTD-952Z1X65TU
