MTD OHV Engines 1X65TU 159cc Engine

Model: 1X65TU 159cc Engine

Back To Assemblies

Save Part Not Listed?
product name

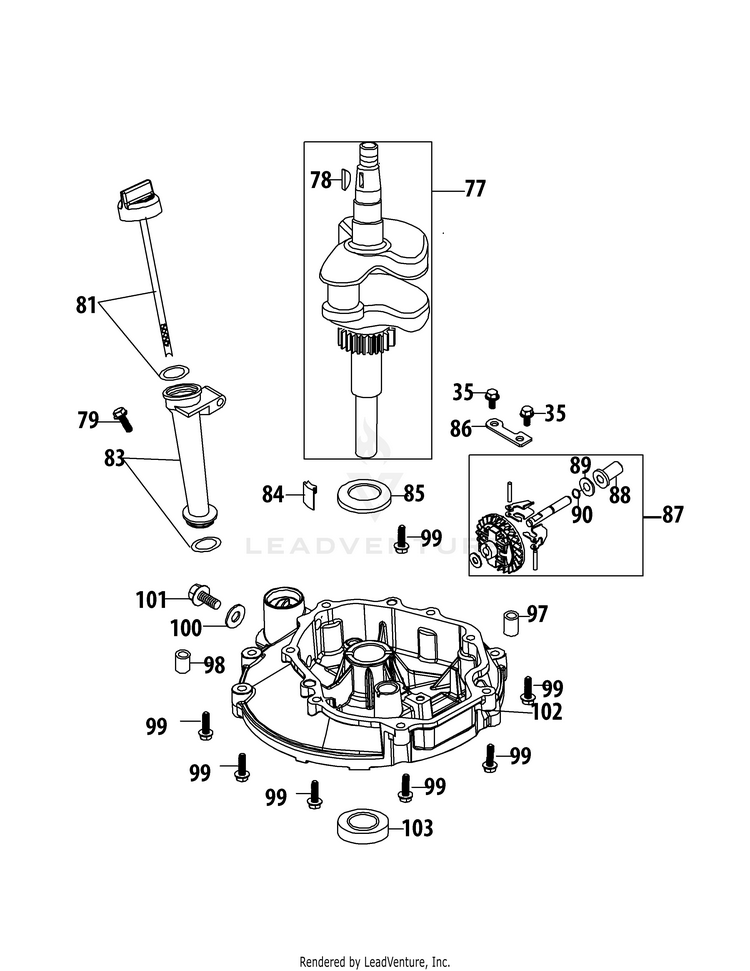

1X65TU Crankshaft & Cover

...
...
35
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
77
CRANKSHAFT ASSEMBLY MTD-951-14607
...
78
WOODRUFF KEY MTD-751P10307A
...
79
BOLT M6-1 x 35 GR8.8 MTD-710-04980
...
81
Oil Dipstick Assembly MTD-951-14440
...
83
Oil Fill Tube Assembly MTD-951-14441
...
84
OIL RETURN SEAL MTD-951-11733
...
85
THRUST WASHER MTD-736-04491
...
86
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609
...
87
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
88
GOVERNOR CUP MTD-931-09595
...
89
WASHER-6.2 x 0.6 x 15 MTD-936-05038
...
90
CLAMP MTD-916-05003
...
97
DOWEL PIN 9 X 14 MTD-715-04096A
...
98
DOWEL PIN 9 X 14 MTD-715-04096A
...
99
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
100
FLAT WASHER MTD-736-04440A
...
101
OIL DRAIN PLUG MTD-710-04906
...
102
CRANKCASE COVER MTD-951-14418A
...
103
LOWER CRANKSHAFT SEAL MTD-951-11545A
