MTD OHV Engines 1X65RU Engine

Model: 1X65RU Engine

Back To Assemblies

Save Part Not Listed?
product name

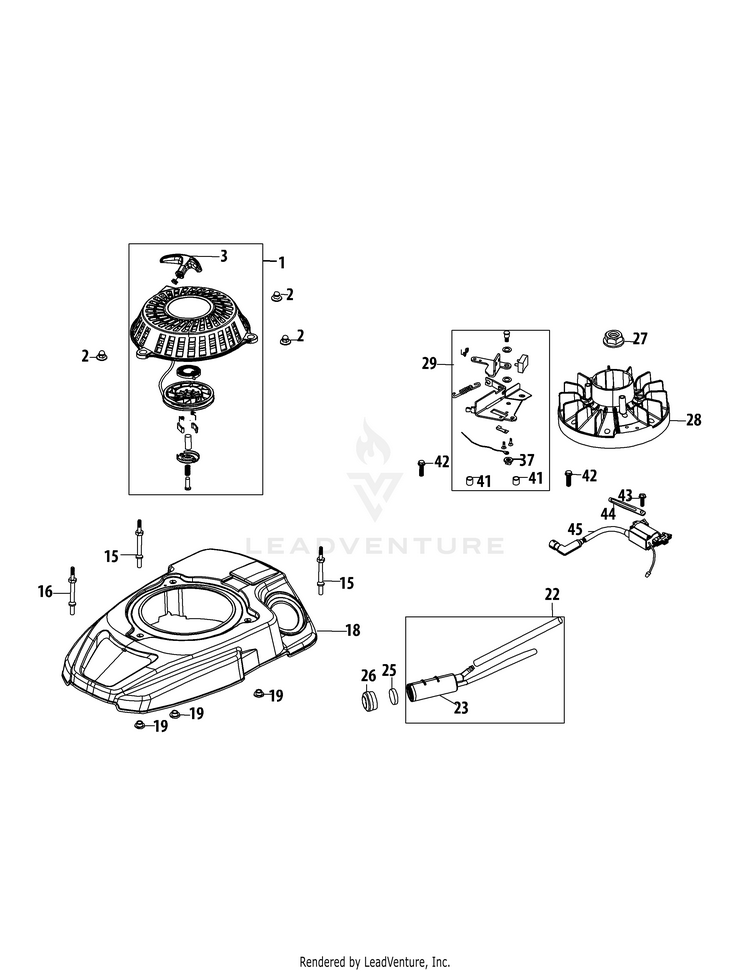

1X65RU Flywheel & Shroud

...
...
1
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
2
ACORN NUT M6-1 MTD-712-04276A
...
3
Starter Handle MTD-731-07925
...
15
Starter/Shroud Rear Stud M6×78.5 MTD-951-14397
...
16
Starter/Shroud Front Stud M6×74 MTD-951-14398
...
18
Engine Shroud MTD-951-14399
...
19
Engine Shroud Spacer MTD-750-05320
...
22
Carbon Canister Assembly MTD-951-14442
...
23
Carbon Canister MTD-951-14126
...
25
Carbon Canister Filter MTD-951-14400
...
26
Carbon Canister Filter Cap MTD-951-14127
...
27
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
28
FLYWHEEL MTD-951-14401A
...
29
Brake Assembly MTD-951-14402
...
37
Brake Arm Nut MTD-712-04219
...
41
Brake Spacer MTD-750-05384
...
42
Bolt M6X35 Af Base/Brake/Dipstick MTD-710-04980
...
43
Bolt M6×20 Ignition Coil MTD-710-04918
...
44
FLEXIBLE CLAMP MTD-951-11622A
...
45
Ignition Coil Assembly MTD-951-14403
