MTD OHV Engines 1X65RU Engine

Model: 1X65RU Engine

Back To Assemblies

Save Part Not Listed?
product name

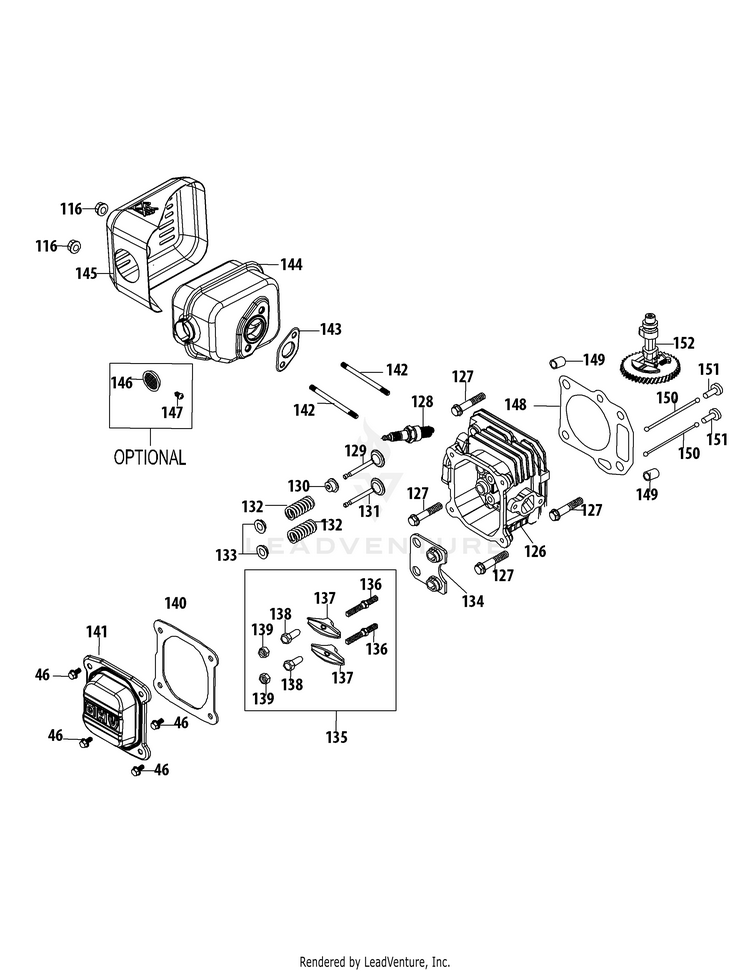

1X65RU Cylinder Head

...
...
46
Bolt M6X14 Multi-Purpose MTD-710-04916
...
116
Nut M6X10Mm Starter/Carb/Muff MTD-712-05015
...
126
CYLINDER HEAD MTD-951-14639A
...
127
BOLT-M8 x 54 MTD-910-06185
...
128
Spark Plug/F5Rtc MTD-951-14437
...
128
GENUINE FACTORY PARTS® Walk Spark Plug 951-14437 Retail Packaged Part MTD-490-250-F014
...
129
INTAKE VALVE MTD-951-14640A
...
130
INTAKE VALVE SEAL MTD-921-04237A
...
131
Exhaust Valve MTD-951-14641
...
132
VALVE SPRING MTD-751P12004A
...
133
Valve Spring Retainer MTD-951-11977
...
134
PUSH ROD GUIDE MTD-951-11687A
...
135
ROCKER ARM MTD-951-11606A
...
136
Rocker Arm Stud MTD-710-04902
...
137
Rocker Arm MTD-951-12001
...
138
Fulcrum Nut MTD-751-11123
...
139
Jam Nut MTD-751-11124
...
140
VALVE COVER GASKET MTD-951-11551
...
141
VALVE COVER MTD-951-14609A
...
142
Muffler Stud M6X95 MTD-710-05094
...
143
MUFFLER GASKET MTD-951-14427A
...
144
Muffler Assembly MTD-951-10403
...
145
MUFFLER SHIELD MTD-951-15072
...
146
SPARK ARRESTOR MTD-951-10351A
...
147
Spark Arrestor Screw MTD-710-04983
...
148
Cylinder Head Gasket MTD-951-14431
...
149
Cylinder Head Dowel Pin F10×16 MTD-715-04108
...
150
PUSH ROD MTD-747P04862A
...
151
TAPPET MTD-951-14432A
...
152
Camshaft Assembly MTD-951-11741
