MTD OHV Engines 1X65LUA 159cc Engine

Model: 1X65LUA 159cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

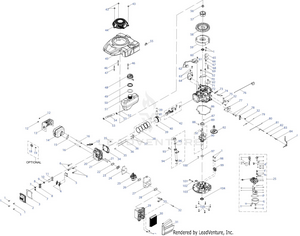

1X65LUA General Assembly

...
...
1
Bolt M6x14 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-951-11551
...
4
Rocker Arm Assembly MTD-951-11606
...
5
Push Rod Guide MTD-951-11687
...
6
Bolt M8x54 MTD-910-06185
...
7
Valve Spring Retainer MTD-951-11977
...
8
VALVE SPRING MTD-751P12004A
...
9
INTAKE VALVE SEAL MTD-921-04237A
...
10
Exhaust Valve MTD-951-14641
...
11
INTAKE VALVE MTD-951-14640A
...
12
Nut M6X10 MTD-712-05015
...
13
Muffler Shield MTD-951-15566
...
14
Muffler Assembly MTD-951-10403
...
15
MUFFLER GASKET MTD-951-14427A
...
16
Muffler Stud M6x95 MTD-710-05094
...
17
Spark Plug/F5RTC MTD-951-14437
...
17
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
17
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
18
SPARK ARRESTOR MTD-951-10351A
...
19
Spark Arrestor Screw MTD-710-04983
...
20
Cylinder Head MTD-951-14639
...
21
Carb Stud M6x87 MTD-951-14425
...
22
Carburetor Insulator Gasket MTD-951-11528
...
23
CARBURETOR INSULATOR MTD-951-11738A
...
24
Carburetor Gasket MTD-951-14424
...
25
Carburetor Assembly MTD-951-05433
...
26
AIR FILTER BASE GASKET MTD-951-14419A
...
27
Air Filter Bracket MTD-908-05251
...
28
Choke Temp Control Bracket Gasket MTD-951-14422
...
29
Air Filter Base MTD-931-12769
...
30
Air Filter Element, Paper MTD-951-15245
...
30
Cub Cadet AIR FILTER Retail Packaged Part MTD-490-200-C065
...
30
Troy-Bilt AIR FILTER Retail Packaged Part MTD-490-200-Y065
...
31
AIR FILTER COVER MTD-931-12768A
...
32
Bolt M6x12 MTD-710-04915
...
33
Breather Hose Assembly MTD-951-15567
...
34
Cylinder Head Gasket MTD-951-14431
...
35
Cylinder Head Dowel Pin ?10x16 MTD-715-04108
...
36
Push Rod MTD-747-04862
...
37
TAPPET MTD-951-14432A
...
38
PISTON RING SET MTD-951-14433A
...
39
Piston Pin Snap Ring MTD-951-11603
...
40
PISTION MTD-951-14434A
...
41
Piston Pin MTD-951-14435
...
42
CONNECTING ROD MTD-951-14436A
...
43
ACORN NUT M6-1 MTD-712-04276A
...
44
Starter Recoil Assembly MTD-951-05435
...
45
Engine Shroud Assembly MTD-931-05437
...
46
Shroud Stud M6x78.5 MTD-951-14397
...
47
Shroud Stud M6x74 MTD-951-14398
...
48
FUEL CAP W/TETHER MTD-951-15255A
...
49
Fuel Tank Upper Grommet MTD-951-14406
...
50
Fuel Tank Nut MTD-931-10290
...
51
FUEL TANK MTD-931-12771A
...
52
FUEL FILTER MTD-951-12296A
...
52
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
53
CARBURETOR HOSE CLAMP MTD-951-11700A
...
54
Fuel Hose MTD-935-05202
...
55
Ignition Switch MTD-925-06174
...
56
Flywheel Nut M14 MTD-712-04287
...
57
Starter Cup MTD-951-12161
...
58
COOLING FAN MTD-951-10909B
...
59
Flywheel MTD-951-14596
...
60
Upper Crankshaft Seal MTD-951-11596
...
61
Bolt M6x20 MTD-710-04918
...
62
Ignition Coil Assembly MTD-925-07035
...
63
Bolt M6x25 MTD-710-04919
...
64
Engine Brake Cover Plate MTD-951-14597
...
65
Breather Cover Plate MTD-951-14404
...
66
Breather Gasket MTD-951-14405
...
67
Breather Valve Spring MTD-732-04718
...
68
Breather Valve MTD-951-11614
...
69
Breather Screen MTD-951-11730
...
70
Air Vane Cover Plate MTD-951-14605
...
71
Ground Wire Cover Plate MTD-908-05252
...
72
Crankcase MTD-951-14635
...
73
FLEXIBLE CLAMP MTD-951-11622A
...
74
Grounding Wire MTD-925-07036
...
75
Choke Control Bracket MTD-908-05253
...
76
Choke Control MTD-951-15569
...
77
Component Bracket MTD-908-05254
...
78
Governor Shield MTD-908-05255
...
79
Throttle Linkage Spring MTD-951-14409
...
80
Throttle Linkage MTD-951-14721
...
81
GOVERNOR ARM SHAFT MTD-951-11621
...
82
OIL SEAL MTD-951-11902A
...
83
Governor Arm Shaft Cotter Pin MTD-714-04078
...
84
Governor Spring MTD-951-15570
...
85
Governor Arm Assembly MTD-951-05160A
...
86
Crankcase Cover Gasket MTD-951-14415
...
87
DOWEL PIN 9 X 14 MTD-715-04096A
...
88
DOWEL PIN 9 X 14 MTD-715-04096A
...
89
Main Bearing MTD-951-11369
...
90
Crankshaft Assembly MTD-951-14607
...
91
WOODRUFF KEY MTD-751P10307A
...
92
Camshaft Assembly MTD-951-15571
...
93
Bolt M6x35 MTD-710-04980
...
94
Dipstick Assembly MTD-951-05438
...
95
O-RING MTD-921-04795A
...
96
Dipstick / Oil Fill Tube O-Ring MTD-921-04697
...
97
Crankshaft Thrust Washer MTD-736-04491
...
98
Governor Gear Mounting Plate MTD-951-11609
...
99
GEAR GOVERNOR MTD-951-05336A
...
100
Oil Return Seal MTD-951-11733
...
101
Oil Drain Plug MTD-710-04906
...
102
FLAT WASHER MTD-736-04440A
...
103
CRANKCASE COVER MTD-951-14418A
...
104
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
105
Bolt M6x28 MTD-710-04943
...
a
Choke Shaft MTD-(NOT SERVICED)
...
b
Choke Plate MTD-(NOT SERVICED)
...
c
Idle Jet Assembly MTD-(NOT SERVICED)
...
d
LOCK WASHER MTD-736-04638A
...
e
Screw M3x6 Throttle Plate MTD-(NOT SERVICED)
...
f
Fuel Shut Off Cover MTD-951-12792
...
g
Fuel Shut Off Washer MTD-(NOT SERVICED)
...
h
Fuel Shut Off Lever MTD-951-15572
...
i
Fuel Shut Off Valve MTD-(NOT SERVICED)
...
j
Carburetor Body MTD-(NOT SERVICED)
...
k
Fuel Inlet MTD-(NOT SERVICED)
...
l
Float Pin MTD-(NOT SERVICED)
...
m
Needle Valve MTD-(NOT SERVICED)
...
n
Needle Valve Spring MTD-(NOT SERVICED)
...
o
Float MTD-(NOT SERVICED)
...
p
FUEL BOWL GASKET MTD-951-11348A
...
q
FLOAT BOWL MTD-908-05001
...
r
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
s
FUEL DRAIN PLUG MTD-710-04938
...
t
Fuel Bowl Mounting Bolt MTD-710-04945
...
u
Fuel Bowl O-Ring MTD-951-11589
...
v
Main Jet MTD-(NOT SERVICED)
...
w
Emulsion Tube MTD-(NOT SERVICED)
...
x
Idle Speed Adjusting Screw MTD-(NOT SERVICED)
...
y
Throttle Plate MTD-(NOT SERVICED)
...
z
Throttle Shaft MTD-(NOT SERVICED)
...
xx
Complete Engine MTD-952Z1X65LUA
...
...
...
