MTD OHV Engines 1T65NUB 140cc Engine

Model: 1T65NUB 140cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

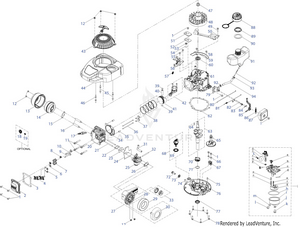

1T65NUB General Assembly

...
...
1
Bolt M6x14 MTD-710-04916
...
2
Valve Cover MTD-908-05094
...
3
VALVE COVER GASKET MTD-951-11551
...
4
Rocker Arm Assembly MTD-951-11606
...
5
Push Rod Guide MTD-951-11687
...
6
Valve Spring Retainer MTD-951-11977
...
7
VALVE SPRING MTD-751P12004A
...
8
Intake Valve Seal MTD-921-04705
...
9
Exhaust Valve MTD-951-14641
...
10
INTAKE VALVE MTD-951-14640A
...
11
Bolt M8x54 Cylinder Head MTD-710-06200
...
12
Nut M6X10 MTD-712-05015
...
13
Muffler Shield MTD-951-14752
...
14
MUFFLER ASSEMBLY MTD-951-14692A
...
15
MUFFLER GASKET MTD-951-14427A
...
16
Muffler Stud M6x76 MTD-710-06204
...
17
Spark Plug/F5RTC MTD-951-14437
...
17
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
17
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
18
SPARK ARRESTOR MTD-951-10351A
...
19
Spark Arrestor Screw MTD-710-04983
...
20
Cylinder Head MTD-951-14689
...
21
Carb Stud M6x98 MTD-710-06205
...
22
Carburetor Insulator Gasket MTD-951-11528
...
23
Carburetor Insulator MTD-951-14698
...
24
Carburetor Gasket MTD-921-04706
...
25
Carburetor Assembly MTD-951-05221
...
26
AIR FILTER BASE GASKET MTD-951-14419A
...
27
Air Filter Assembly MTD-951-05226
...
28
Air Filter Base Order Ref 27 MTD-NA
...
29
FOAM AIR FILTER MTD-951-14627A
...
29
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-490-200-M055
...
30
Air Filter Cover Order Ref 27 MTD-NA
...
31
Breather Hose MTD-735-05055
...
32
Primer Hose MTD-735-05056
...
33
PRIMER ASSEMBLY MTD-951-05177A
...
34
Cylinder Head Gasket MTD-951-14431
...
35
Cylinder Head Dowel Pin 10x16 MTD-715-04108
...
36
Push Rod MTD-747-04862
...
37
Tappet MTD-951-11607
...
38
PISTON RING SET MTD-951-14433A
...
39
Piston Pin Snap Ring MTD-951-11603
...
40
Piston Pin MTD-951-14435
...
41
PISTION MTD-951-14434A
...
42
Connecting Rod Assembly MTD-951-05163
...
43
STARTER RECOIL ASSEMBLY MTD-951-05320A
...
44
Engine Shroud Assembly MTD-931-05602
...
45
Shroud Stud M6x75 MTD-710-06208
...
46
Shroud Stud M6x73 MTD-710-06209
...
47
Flywheel Nut M14 MTD-712-04287
...
48
ENGINE FLYWHEEL MTD-925-06190A
...
49
Bolt M6x25 MTD-710-04919
...
50
Ignition Coil Assembly MTD-925-07231
...
51
BREATHER COVER PLATE MTD-908-05092
...
52
Breather Gasket MTD-921-04703
...
53
Breather Valve Spring MTD-732-04718
...
54
Breather Valve MTD-951-11614
...
55
Bolt M6x12 MTD-710-04915
...
56
Brake Assembly MTD-951-05551
...
57
Brake Spring MTD-932-05580
...
58
Bolt M6x10 MTD-710-04914
...
59
Shroud Cover Plate MTD-908-05269
...
60
Upper Crankshaft Seal MTD-921-04700
...
61
Crankcase MTD-951-14686
...
62
Crankcase Cover Gasket MTD-951-14415
...
63
Crankshaft Assembly MTD-951-14754
...
64
WOODRUFF KEY MTD-751P10307A
...
65
Camshaft Assembly MTD-951-11741
...
66
Governor Gear Mounting Plate MTD-951-11609
...
67
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
68
Dipstick Assembly MTD-951-05161
...
69
Dipstick Seal Order Ref 68 MTD-NA
...
70
GEAR MTD-931-10288A
...
71
Crankshaft Thrust Washer MTD-736-04491
...
72
Oil Drain Plug MTD-710-04906
...
73
FLAT WASHER MTD-736-04440A
...
74
DOWEL PIN 9 X 14 MTD-715-04096A
...
75
DOWEL PIN 9 X 14 MTD-715-04096A
...
76
CRANKCASE COVER MTD-951-14688A
...
77
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
78
Bolt M6x28 MTD-710-04943
...
79
Component Bracket MTD-908-05135
...
80
Throttle Linkage MTD-951-14696
...
81
THROTTLE LINKAGE SPRING MTD-732P05188A
...
82
GOVERNOR ARM SHAFT MTD-951-11621
...
83
OIL SEAL MTD-951-11902A
...
84
Governor Arm Shaft Cotter Pin MTD-714-04078
...
85
Governor Arm Assembly MTD-951-05160A
...
86
Governor Spring MTD-951-14411
...
87
Governor Shield MTD-931-10287
...
88
FUEL CAP W/TETHER MTD-951-15255A
...
89
Fuel Tank Nut MTD-931-10290
...
90
Fuel Tank Upper Grommet MTD-951-14406
...
91
FUEL TANK MTD-931-10291A
...
92
FUEL FILTER MTD-951-12296A
...
92
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
93
CARBURETOR HOSE CLAMP MTD-951-11700A
...
94
FUEL HOSE MTD-735-05053A
...
25
Carburetor Assembly MTD-951-05221
...
a
Idle Jet Assembly MTD-NA
...
b
Primer Port MTD-NA
...
c
Carburetor Body MTD-NA
...
d
Float Pin MTD-NA
...
e
Needle Valve MTD-NA
...
f
Needle Valve Spring MTD-NA
...
g
Float MTD-NA
...
h
Fuel Bowl O-Ring MTD-951-11589
...
i
FLOAT BOWL MTD-908-05001
...
j
FUEL BOWL GASKET MTD-951-11348A
...
k
Fuel Bowl Mounting Bolt MTD-710-04945
...
l
FUEL DRAIN PLUG MTD-710-04938
...
m
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
n
Main Jet MTD-NA
...
o
Emulsion Tube MTD-NA
...
p
Idle Speed Adjusting Screw MTD-NA
...
q
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
r
Screw M3x6 Throttle Plate MTD-NA
...
s
LOCK WASHER MTD-736-04638A
...
t
Throttle Plate MTD-NA
...
u
Throttle Shaft MTD-NA
...
xx
Complete Engine MTD-952Z1T65NUB
...
...
...
