MTD OHV Engines 1P70L0A-11 Engine

Model: 1P70L0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

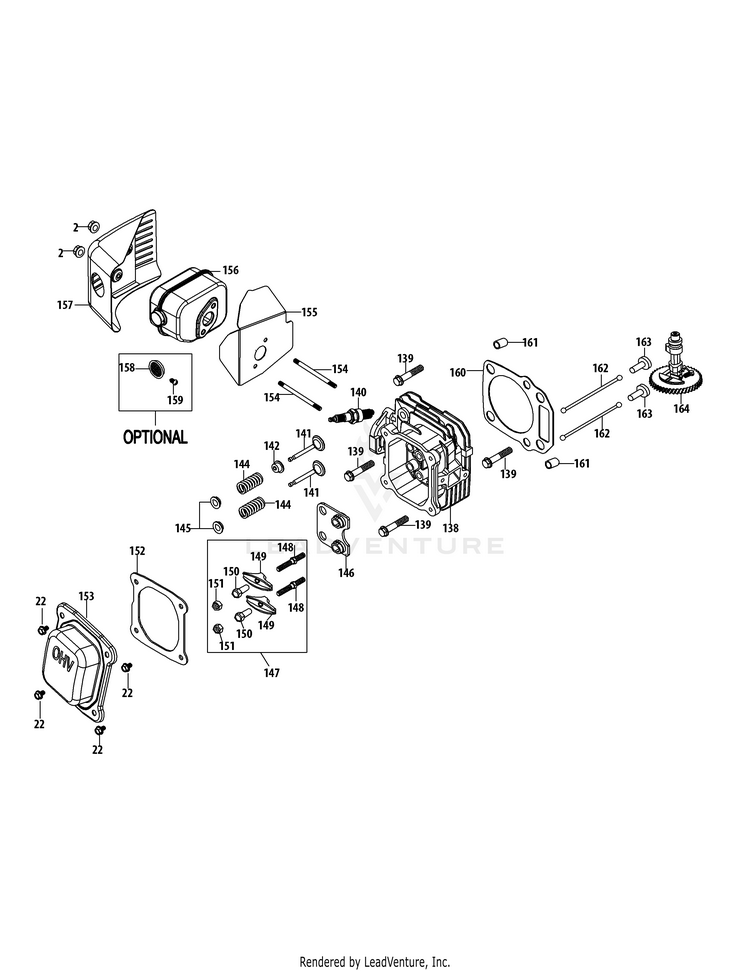

1P70L0A-11 Cylinder Head

...
...
2
Nut M6 MTD-712-05015
...
22
Bolt M6×14 MTD-710-04916
...
138
Cylinder Head Assembly (Incl.135,136,138,141-146,148-152,155,160) MTD-951-10413B
...
139
Head Bolt M8×54 MTD-710-04982
...
140
Spark Plug/F6Rtc MTD-951-10292A
...
141
Valve Kit MTD-951-10345
...
142
VALVE SEAL MTD-951-11818
...
143
Valve Kit MTD-951-10345
...
144
Valve Spring MTD-951-12116
...
145
Valve Spring Retainer MTD-951-12000
...
146
PUSH ROD GUIDE MTD-951-11629
...
147
ROCKER ARM MTD-951-11606A
...
148
Rocker Arm Stud MTD-710-04902
...
149
ROCKER ARM MTD-951-12175
...
150
Valve Adjusting MTD-751-11123
...
151
Pivot Locking Nut MTD-751-11124
...
152
VALVE COVER GASKET MTD-951-11551
...
153
VALVE COVER MTD-951-11548
...
154
Muffler stud M6×95 MTD-710-05094
...
154
Muffler Stud Assemlby MTD-951-10342
...
155
Muffler Gasket MTD-951-11739
...
156
Muffler Assembly MTD-951-10403
...
157
Muffler Shield MTD-951-10411
...
158
SPARK ARRESTOR MTD-951-10351A
...
159
Spark Arrestor Screw MTD-710-04983
...
160
CYLINDER HEAD GASKET MTD-951-11630
...
161
Dowel Pin 10×16 MTD-715-04108
...
162
Push Rod Kit MTD-951-10344
...
163
Tappet MTD-951-11607
...
164
CAMSHAFT ASSEMBLY MTD-951-11767
...
xx
Carburetor Kit - Major Not shown (Incl.110,118,119,122-129,130,132) MTD-951-12178A
...
xx
GASKET KIT (COMPLETE) Not shown (Incl.25,27,54,72,79,96,99,134,136,152,155,160) MTD-951-11770
...
xx
GASKET KIT (EXTERNAL) Not shown (Incl.27,79,96,136,146,152,155) MTD-951-11772
...
xx
COMPLETE ENGINE 159cc Not shown MTD-952Z1X65LUA
