MTD OHV Engines 1P70L0A-11 Engine

Model: 1P70L0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

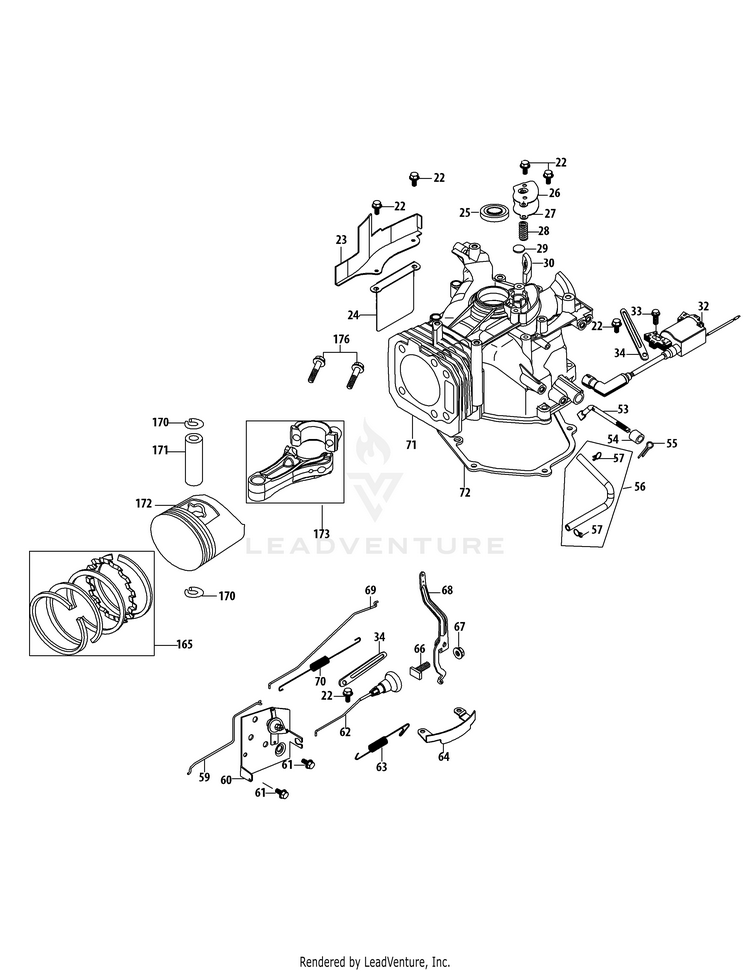

1P70L0A-11 Crankcase

...
...
22
Bolt M6×14 MTD-710-04916
...
23
AIR GUIDE BRACKET MTD-951-12104
...
24
BRACKET MTD-951-11602
...
25
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
26
Breather Cover Plate MTD-951-11728
...
27
Breather Gasket MTD-951-11729
...
28
Breather Spring MTD-732-04718
...
29
Breather Valve MTD-951-11614
...
30
BREATHER SCREEN MTD-951-11762
...
32
IGNITION COIL MTD-951-10931
...
33
Bolt M6×18 MTD-710-04979
...
34
Flexible Clamp MTD-951-11680
...
53
GOVERNOR ARM SHAFT MTD-951-11621
...
54
OIL SEAL MTD-951-11902A
...
55
COTTER PIN MTD-714-04078A
...
56
Breather Hose Assembly MTD-951-11260
...
57
Breather Hose Clamp MTD-726-04101
...
59
CHOKE LINKAGE MTD-951-12107
...
60
VAR SPEED CONTROL ROD BRACKET MTD-951-12170
...
61
Bolt M6×12 MTD-710-05103
...
62
CHOKE CONTROL KNOB MTD-951-12187
...
63
Governor Spring MTD-951-10387
...
64
GOVERNOR ARM SHIELD MTD-951-12171
...
66
Governor Arm Bolt MTD-710-04908
...
67
Nut M6 MTD-712-05015
...
68
GOVERNOR ARM MTD-951-12172
...
69
Throttle Linkage MTD-951-11259
...
70
THROTTLE SPRING MTD-951-11258A
...
71
SHORTBLOCK ASSEMBLY (Incl.22,25-30,53-55,71-74,79,81-83,93-99,107,135,136,152,155,160,161,163-165,170-176,176) MTD-951-11992
...
72
Crankcase Cover Gasket MTD-951-11763
...
165
PISTON RING SET MTD-751P12111A
...
170
PISTON PIN SNAP RING MTD-951-11632
...
171
PISTON PIN MTD-951-11633
...
172
PISTON MTD-951-11634
...
173
CONNECTING ROD ASSEMBLY MTD-951-11768
...
176
CONNECTING ROD BOLT MTD-710-05162
...
xx
GASKET KIT (EXTERNAL) Not shown (Incl.27,79,96,136,146,152,155) MTD-951-11772
...
xx
Carburetor Kit - Major Not shown (Incl.110,118,119,122-129,130,132) MTD-951-12178A
...
xx
GASKET KIT (COMPLETE) Not shown (Incl.25,27,54,72,79,96,99,134,136,152,155,160) MTD-951-11770
...
xx
COMPLETE ENGINE 159cc Not shown MTD-952Z1X65LUA
