MTD OHV Engines 1P70L0A-11 Engine

Model: 1P70L0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

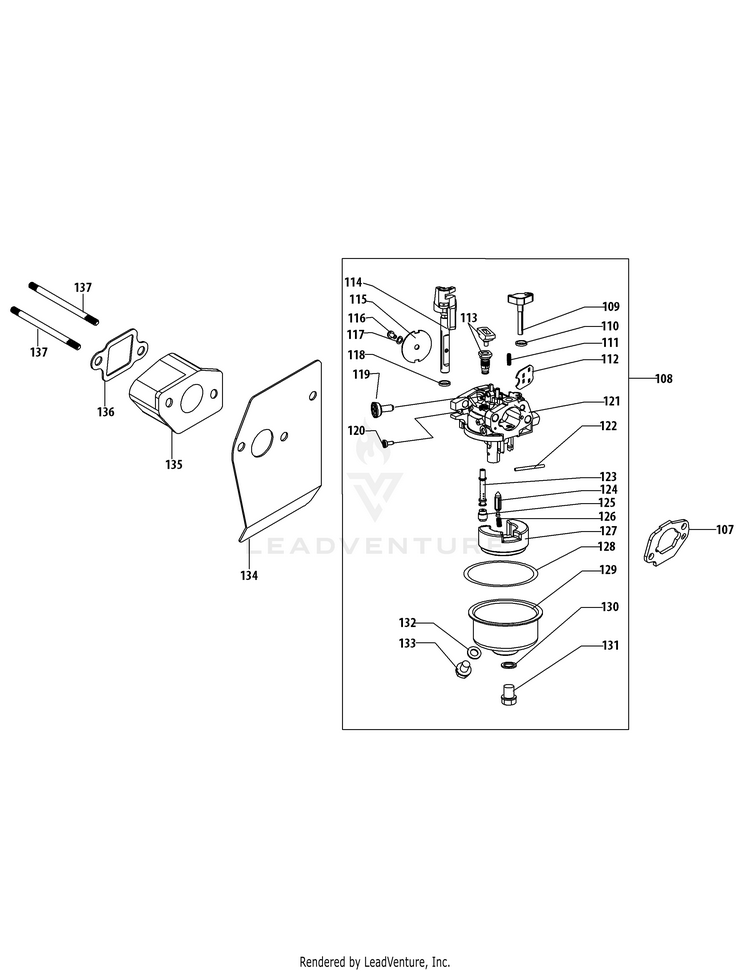

1P70L0A-11 Carburetor

...
...
107
Carburetor Gasket Plate MTD-951-11525
...
108
Carburetor Assembly MTD-951-10929
...
109
Choke Shaft MTD-NA
...
110
Fiber O-Ring MTD-NA
...
111
Choke Plate MTD-NA
...
112
Choke Return Spring MTD-NA
...
113
Idle Jet Assembly MTD-NA
...
114
Throttle Shaft MTD-NA
...
115
Throttle Plate MTD-NA
...
116
Lock Washer MTD-NA
...
117
Screw M3×6 MTD-NA
...
118
Fiber O-Ring MTD-NA
...
119
Idle Speed Adjusting Screw MTD-NA
...
120
Idle Mixture Screw MTD-NA
...
121
Carburetor Body MTD-NA
...
122
Float Pin MTD-NA
...
123
Emulsion Tube MTD-NA
...
124
Needle Valve MTD-NA
...
125
Main Jet MTD-NA
...
126
Needle Valve Spring MTD-NA
...
127
Float MTD-NA
...
128
Fuel Bowl O-Ring MTD-951-11589
...
129
Fuel Bowl MTD-NA
...
130
FUEL BOWL GASKET MTD-951-11348A
...
131
Fuel Bowl Mounting Bolt MTD-710-04945
...
132
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
133
FUEL DRAIN PLUG MTD-710-04938
...
134
Carburetor Gasket MTD-951-12110
...
135
Carburetor Insulator MTD-951-11255
...
136
Carburetor Insulator Gasket MTD-951-11254
...
137
STUD M6 x 113 MTD-710-04981
...
xx
Carburetor Kit - Major Not shown (Incl.110,118,119,122-129,130,132) MTD-951-12178A
