MTD OHV Engines 1P70L0A-11 Engine

Model: 1P70L0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

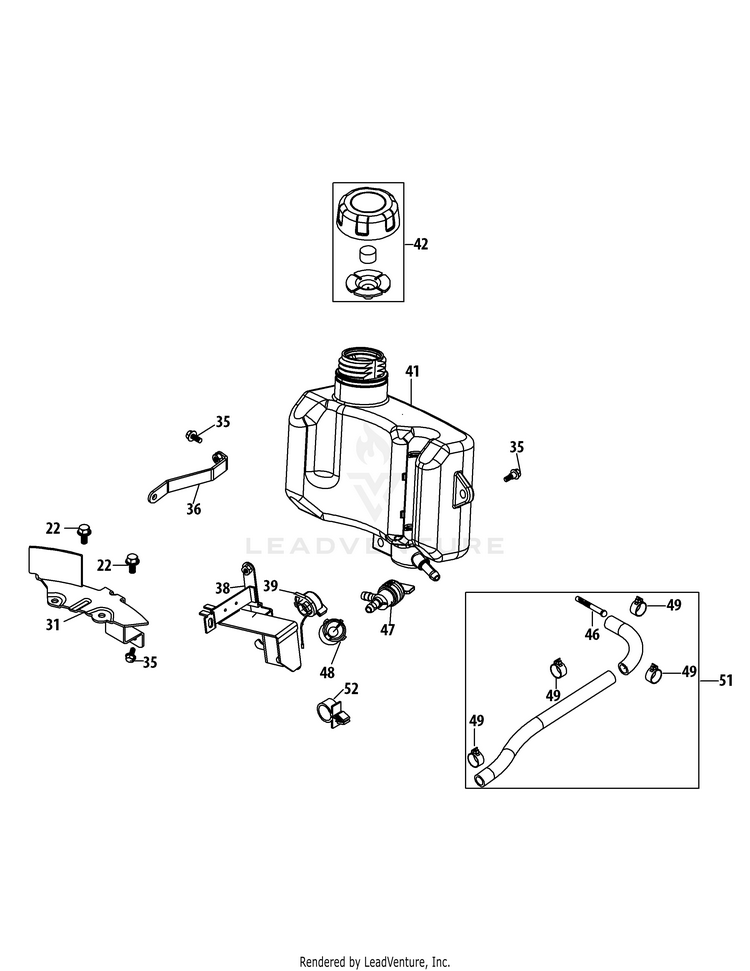

1P70L0A-11 Fuel Tank & Mounting

...
...
22
Bolt M6×14 MTD-710-04916
...
31
FUEL TANK BOTTOM BRACKET MTD-951-12184
...
35
Fuel Tank Bolt MTD-710-04968
...
36
FUEL TANK SUPPORT BRACKET MTD-951-12185
...
38
FUEL TANK SIDE BRACKET MTD-951-12186
...
39
IGNITION SWITCH MTD-951-12289
...
41
Fuel Tank - Clear White MTD-951-12191
...
42
FUEL CAP ASSEMBLY MTD-951-12291
...
46
FUEL FILTER MTD-951-12296A
...
47
FUEL SHUT-OFF VALVE MTD-951-12290
...
48
FUEL SHUT OFF SUPPORT CLIP MTD-951-12192
...
49
CARBURETOR HOSE CLAMP MTD-951-11700A
...
51
FUEL LINE KIT MTD-951-12188
...
52
FUEL LINE SUPPORT CLAMP MTD-723-04071A
