MTD OHV Engines 1P70FUA Engine

Model: 1P70FUA Engine

Save Part Not Listed?
product name

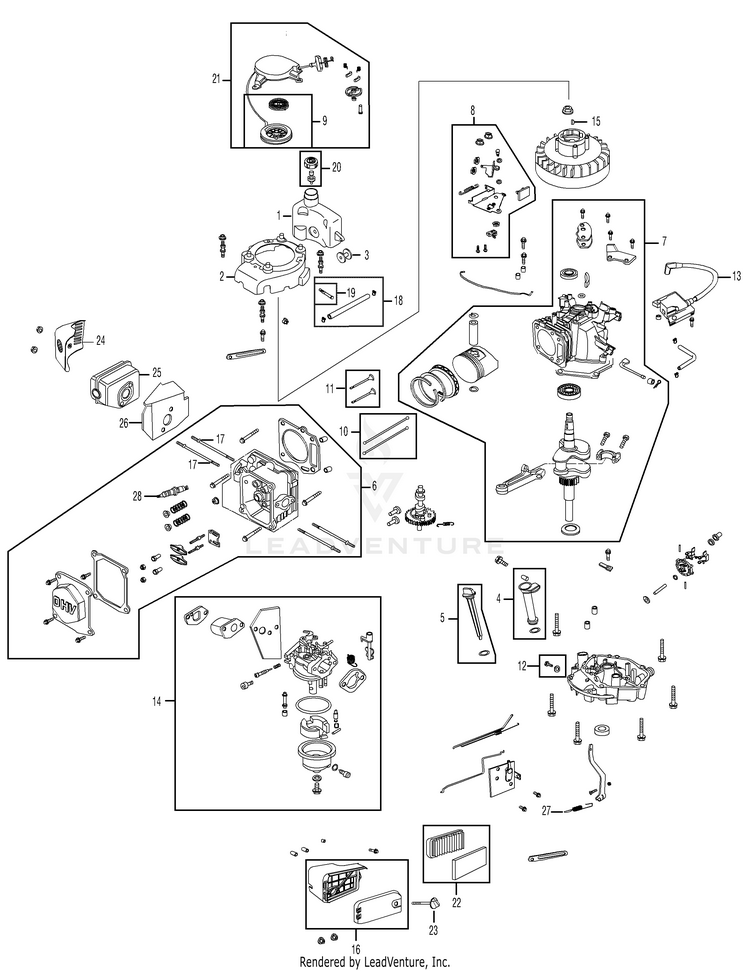

Engine Assembly 1P70FUA

...
...
1
FUEL TANK ASSEMBLY MTD-951-12739
...
2
FLYWHEEL SHROUD MTD-951-10369
...
2
STARTER SHROUD STUD MTD-710-04976
...
2
Shroud Stud Front/Unmarked MTD-710-04977
...
2
STARTER SHROUD STUD M6 x 79 MTD-710-04978
...
2
Nut M6 MTD-712-05015
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
Dipstick Assembly MTD-951-10333
...
6
Cylinder Head Assembly MTD-951-10413B
...
7
SHORTBLOCK ASSEMBLY MTD-951-12724
...
8
Stop Switch and Brake Ass'y MTD-951-10321A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
9
STARTER SHROUD STUD MTD-710-04976
...
9
STARTER SHROUD STUD M6 x 79 MTD-710-04978
...
9
Starter Shroud Stud M6 x 87-51.5 MTD-710-04977
...
9
Nut M6 MTD-712-05015
...
10
Push Rod Kit MTD-951-10344
...
10
PUSH ROD GUIDE MTD-951-11629
...
11
Valve Kit MTD-951-10345
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10366
...
14
Carburetor Assembly MTD-951-10310
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assy Comp MTD-951-10412B
...
17
Muffler Stud Assembly MTD-951-10342
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10364
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
22
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
Muffler Guard MTD-951-10411
...
25
Muffler MTD-951-10403
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Return Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
29
THROTTLE LINKAGE ROD MTD-951-11259
...
29
THROTTLE SPRING MTD-951-11258A
...
xx
Carburetor Kit - Major (Not shown) MTD-951-12425A
...
xx
Carburetor Repair Kit - Minor (Not shown) MTD-951-10323
...
xx
GASKET KIT (COMPLETE) (Not shown) MTD-951-10416A
...
xx
Gasket Kit - External (Not shown) MTD-951-10417A
...
xx
SPARK ARRESTOR (Not shown) MTD-951-10351A
...
xx
COMPLETE ENGINE 173cc (Not shown) MTD-952Z5P70MU
