product name

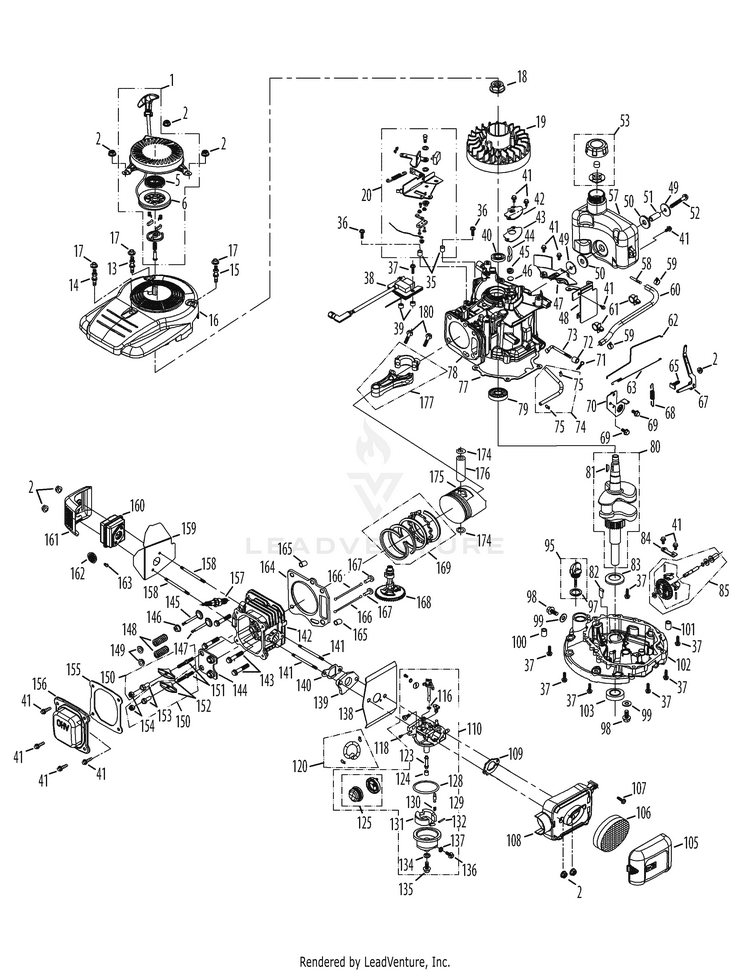

MTD OHV Engines 1P65B0B Engine 2010

Model: 1P65B0B Engine 2010

Save Part Not Listed?
product name

Engine Assembly 1P65B0B

...
...
1
Recoil Starter Assembly MTD-951-12683
...
2
Nut M6 MTD-712-05015
...
5
Spring Furnish 951-11721, Recoil Pulley & Spring Assembly MTD-NA
...
6
Pulley Furnish 951-11721, Recoil Pulley & Spring Assembly MTD-NA
...
13
Starter/Shroud Stud Black M6 x 75 MTD-751-11722
...
14
Starter/Shroud Stud Front M6 x 75.3 MTD-951-11723
...
15
Starter/Shroud Stud White M6-73 MTD-951-11724
...
16
ENGINE SHROUD-BLACK MTD-931-05692
...
17
Engine Shroud Spacer MTD-750-05320
...
18
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
19
Flywheel MTD-951-11043
...
20
Brake Assembly MTD-951-10320A
...
35
Brake Spacer MTD-750-05384
...
36
Brake Assy Bolt M6×35 MTD-710-04980
...
37
Bolt M6×28 MTD-710-04931
...
37
Bolt M6×28 Furnish 951-11747, Shortblock Assembly MTD-710-04931
...
38
Ignition Coil Assembly MTD-951-10367
...
39
IGNITION COIL SPACER MTD-951-11675
...
40
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
40
UPPER CRANKSHAFT SEAL Furnish 951-11709, Gasket Kit, Complete MTD-951-11596A
...
40
UPPER CRANKSHAFT SEAL Furnish 951-11747, Shortblock Assembly MTD-951-11596A
...
41
Bolt M6×14 MTD-710-04916
...
41
Bolt M6×14 Furnish 951-11747, Shortblock Assembly MTD-710-04916
...
42
Breather Cover Plate MTD-951-11728
...
42
Breather Cover Plate Furnish 951-11747, Shortblock Assembly MTD-951-11728
...
43
Breather Gasket MTD-951-11729
...
43
Breather Gasket Furnish 951-11710, Gasket Kit External MTD-951-11729
...
43
Breather Gasket Furnish 951-11709, Gasket Kit, Complete MTD-951-11729
...
43
Breather Gasket Furnish 951-11747, Shortblock Assembly MTD-951-11729
...
44
Breather Screen MTD-951-11730
...
44
Breather Screen Furnish 951-11747, Shortblock Assembly MTD-951-11730
...
45
Breather Spring MTD-732-04718
...
45
Breather Spring Furnish 951-11747, Shortblock Assembly MTD-732-04718
...
46
BREATHER VALVE MTD-951-11735
...
46
BREATHER VALVE Furnish 951-11747, Shortblock Assembly MTD-951-11735
...
47
Fuel Tank Bottom Bracket MTD-951-11542
...
48
Tank/Label Bracket MTD-951-11748
...
49
FUEL TANK WASHER MTD-736-04456
...
50
Rubber Bushing MTD-951-10335
...
51
Fuel Tank Bushing MTD-750-05322
...
52
Tank Bolt M8x50 MTD-710-04922
...
53
Fuel Cap Assembly MTD-951-10300
...
57
FUEL TANK MTD-951-10337
...
58
FUEL FILTER MTD-951-12296A
...
58
FUEL FILTER Furnish 951-10363, Fuel Line Kit MTD-951-12296A
...
59
CARBURETOR HOSE CLAMP MTD-951-11700A
...
59
CARBURETOR HOSE CLAMP Furnish 951-10363, Fuel Line Kit MTD-951-11700A
...
60
Fuel Hose Furnish 951-10363, Fuel Line Kit MTD-NA
...
61
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
62
Throttle Linkage MTD-951-11677
...
63
Throttle Linkage Spring MTD-951-11522
...
65
Governor Arm Bolt MTD-710-04908
...
67
Governor Arm MTD-951-11523
...
68
Governor Spring MTD-951-10387
...
69
Bolt M6×12 MTD-710-04915
...
70
Throttle/Governor Bracket MTD-951-11544
...
71
Cotter Pin MTD-714-04078
...
71
Cotter Pin Furnish 951-11747, Shortblock Assembly MTD-714-04078
...
72
OIL SEAL MTD-951-11902A
...
72
OIL SEAL Furnish 951-11709, Gasket Kit, Complete MTD-951-11902A
...
72
OIL SEAL Furnish 951-11747, Shortblock Assembly MTD-951-11902A
...
73
GOVERNOR ARM SHAFT MTD-951-11621
...
73
GOVERNOR ARM SHAFT Furnish 951-11747, Shortblock Assembly MTD-951-11621
...
74
Breather Hose Assembly MTD-951-11725
...
75
Breather Hose Clamp MTD-726-04101
...
77
Crankcase Cover Gasket MTD-951-11732
...
77
Crankcase Cover Gasket Furnish 951-11709, Gasket Kit, Complete MTD-951-11732
...
77
Crankcase Cover Gasket Furnish 951-11747, Shortblock Assembly MTD-951-11732
...
78
Crankcase Furnish 951-11747, Shortblock Assembly MTD-NA
...
79
Main Bearing MTD-951-11369
...
79
Main Bearing Furnish 951-11747, Shortblock Assembly MTD-951-11369
...
80
CRANKSHAFT MTD-951-11591
...
80
CRANKSHAFT Furnish 951-11747, Shortblock Assembly MTD-951-11591
...
81
WOODRUFF KEY MTD-751P10307A
...
81
WOODRUFF KEY Furnish 951-11747, Shortblock Assembly MTD-751P10307A
...
82
Oil Return Seal MTD-951-11733
...
83
Crankshaft Thrust Washer MTD-736-04491
...
83
Crankshaft Thrust Washer Furnish 951-11747, Shortblock Assembly MTD-736-04491
...
84
Governor Gear Mounting Plate MTD-951-11609
...
84
Governor Gear Mounting Plate Furnish 951-11747, Shortblock Assembly MTD-951-11609
...
85
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
85
GOVERNOR GEAR/SHAFT ASSEMBLY Furnish 951-11747, Shortblock Assembly MTD-951-11549
...
95
Dipstick Assembly MTD-951-10617
...
97
DIPSTICK-O-RING MTD-951-11734
...
97
DIPSTICK-O-RING Furnish 951-11710, Gasket Kit External MTD-951-11734
...
97
Dipstick O-Ring Furnish 951-11709, Gasket Kit, Complete MTD-NA
...
98
Oil Drain Plug MTD-710-04906
...
98
Oil Drain Plug Furnish 951-11747, Shortblock Assembly MTD-710-04906
...
98
Oil Drain Plug Furnish 951-10370, Oil Drain Play & Washer Assembly MTD-710-04906
...
99
FLAT WASHER MTD-736-04440A
...
99
FLAT WASHER Furnish 951-11710, Gasket Kit External MTD-736-04440A
...
99
FLAT WASHER Furnish 951-11709, Gasket Kit, Complete MTD-736-04440A
...
99
FLAT WASHER Furnish 951-11747, Shortblock Assembly MTD-736-04440A
...
99
FLAT WASHER Furnish 951-10370, Oil Drain Play & Washer Assembly MTD-736-04440A
...
100
DOWEL PIN MTD-715-04089
...
100
DOWEL PIN Furnish 951-11747, Shortblock Assembly MTD-715-04089
...
101
DOWEL PIN 9 X 14 MTD-715-04096A
...
101
DOWEL PIN 9 X 14 Furnish 951-11747, Shortblock Assembly MTD-715-04096A
...
102
Crankcase Cover Furnish 951-11747, Shortblock Assembly MTD-NA
...
103
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
103
LOWER CRANKSHAFT SEAL Furnish 951-11709, Gasket Kit, Complete MTD-951-11545A
...
103
LOWER CRANKSHAFT SEAL Furnish 951-11747, Shortblock Assembly MTD-951-11545A
...
105
Outer Air Filter Cover Furnish 951-10739, Air Cleaner Housing Assembly MTD-NA
...
106
Air Filter Element, Oval MTD-951-10732
...
106
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10732
...
107
A/F Base Bolt M6×30 MTD-710-04969
...
108
Inner Air Filter Housing Furnish 951-10739, Air Cleaner Housing Assembly MTD-NA
...
109
Carburetor Gasket Plate MTD-951-11527
...
109
Carburetor Gasket Plate Furnish 951-11747, Shortblock Assembly MTD-951-11527
...
110
Carburetor Assembly MTD-951-11707
...
116
Fiber O-Ring Furnish 951-11708, Carburetor Kit Major MTD-NA
...
118
Idle Speed Adjusting Screw Furnish 951-11708, Carburetor Kit Major MTD-NA
...
120
Primer Hose Assembly MTD-951-11736
...
123
Main Nozzle (Emulsion Tube) Furnish 951-11708, Carburetor Kit Major MTD-NA
...
124
Main Jet Furnish 951-11708, Carburetor Kit Major MTD-NA
...
125
PRIMER MTD-951-10639B
...
128
Fuel Bowl O-Ring MTD-951-11589
...
128
Fuel Bowl O-Ring Furnish 951-11708, Carburetor Kit Major MTD-951-11589
...
129
Needle Valve Furnish 951-11708, Carburetor Kit Major MTD-NA
...
130
Needle Valve Spring Furnish 951-11708, Carburetor Kit Major MTD-NA
...
131
Float Furnish 951-11708, Carburetor Kit Major MTD-NA
...
132
Float Pin Furnish 951-11708, Carburetor Kit Major MTD-NA
...
134
FUEL BOWL GASKET MTD-951-11348A
...
134
FUEL BOWL GASKET Furnish 951-11708, Carburetor Kit Major MTD-951-11348A
...
135
Fuel Bowl Mounting Bolt MTD-710-04945
...
136
FUEL DRAIN PLUG MTD-710-04938
...
137
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
137
FUEL DRAIN PLUG GASKET Furnish 951-11708, Carburetor Kit Major MTD-951-11349A
...
138
Carburetor Gasket MTD-951-11737
...
138
Carburetor Gasket Furnish 951-11710, Gasket Kit External MTD-951-11737
...
138
Carburetor Gasket Furnish 951-11709, Gasket Kit, Complete MTD-NA
...
139
CARBURETOR INSULATOR MTD-951-11738A
...
139
CARBURETOR INSULATOR Furnish 951-11710, Gasket Kit External MTD-951-11738A
...
139
CARBURETOR INSULATOR Furnish 951-11709, Gasket Kit, Complete MTD-951-11738A
...
139
CARBURETOR INSULATOR Furnish 951-11746, Cylinder Head MTD-951-11738A
...
139
CARBURETOR INSULATOR Furnish 951-11747, Shortblock Assembly MTD-951-11738A
...
140
Carburetor Insulator Gasket MTD-951-11528
...
140
Carburetor Insulator Gasket Furnish 951-11710, Gasket Kit External MTD-951-11528
...
140
Carburetor Insulator Gasket Furnish 951-11709, Gasket Kit, Complete MTD-951-11528
...
140
Carburetor Insulator Gasket Furnish 951-11746, Cylinder Head MTD-951-11528
...
140
Carburetor Insulator Gasket Furnish 951-11747, Shortblock Assembly MTD-951-11528
...
141
Carb Stud M6x92 MTD-710-05093
...
142
Cylinder Head Furnish 951-11746, Cylinder Head MTD-NA
...
143
Head Bolt M8×54 MTD-710-04982
...
143
Head Bolt M8×54 Furnish 951-10846, Cylinder Head Service Kit MTD-710-04982
...
144
PUSH ROD GUIDE MTD-951-11687A
...
144
PUSH ROD GUIDE Furnish 951-11746, Cylinder Head MTD-951-11687A
...
145
Intake Valve Furnish 951-11746, Cylinder Head MTD-NA
...
145
Intake Valve Furnish 951-10313, Valve Kit MTD-NA
...
146
Intake Valve Seal Furnish 951-10846, Cylinder Head Service Kit MTD-NA
...
146
Intake Valve Seal Furnish 951-11746, Cylinder Head MTD-NA
...
147
Exhaust Valve Furnish 951-11746, Cylinder Head MTD-NA
...
147
Exhaust Valve Furnish 951-10313, Valve Kit MTD-NA
...
148
Valve Spring Furnish 951-11746, Cylinder Head MTD-NA
...
149
Valve Spring Retainer Furnish 951-11746, Cylinder Head MTD-NA
...
150
ROCKER ARM MTD-951-11606A
...
151
Rocker Arm Stud MTD-710-04902
...
151
Rocker Arm Stud Furnish 951-11746, Cylinder Head MTD-710-04902
...
152
Rocker Arm Furnish 951-11746, Cylinder Head MTD-NA
...
153
Fulcrum Nut MTD-751-11123
...
153
Fulcrum Nut Furnish 951-11746, Cylinder Head MTD-751-11123
...
154
Jam Nut MTD-751-11124
...
154
Jam Nut Furnish 951-11746, Cylinder Head MTD-751-11124
...
155
VALVE COVER GASKET MTD-951-11551
...
155
VALVE COVER GASKET Furnish 951-11710, Gasket Kit External MTD-951-11551
...
155
VALVE COVER GASKET Furnish 951-11709, Gasket Kit, Complete MTD-951-11551
...
155
VALVE COVER GASKET Furnish 951-10846, Cylinder Head Service Kit MTD-951-11551
...
155
VALVE COVER GASKET Furnish 951-11746, Cylinder Head MTD-951-11551
...
155
VALVE COVER GASKET Furnish 951-11747, Shortblock Assembly MTD-951-11551
...
156
VALVE COVER MTD-951-11548
...
157
Spark Plug/F6rtc MTD-951-10292A
...
158
Muffler Stud M6x95 MTD-951-11740
...
158
Muffler Stud Furnish 951-11745, Muffler Stud Assembly MTD-951-11740
...
159
Muffler Gasket MTD-951-11739
...
159
Muffler Gasket Furnish 951-11710, Gasket Kit External MTD-951-11739
...
159
Muffler Gasket Furnish 951-11709, Gasket Kit, Complete MTD-951-11739
...
159
Muffler Gasket Furnish 951-11746, Cylinder Head MTD-951-11739
...
159
Muffler Gasket Furnish 951-11747, Shortblock Assembly MTD-951-11739
...
160
MUFFLER ASSEMBLY MTD-951-11742
...
161
MUFFLER SHIELD MTD-951-11743
...
162
SPARK ARRESTOR MTD-951-10351A
...
163
Spark Arrestor Screw MTD-710-04983
...
164
CYLINDER HEAD GASKET MTD-951-11555
...
164
CYLINDER HEAD GASKET Furnish 951-11709, Gasket Kit, Complete MTD-951-11555
...
164
CYLINDER HEAD GASKET Furnish 951-10846, Cylinder Head Service Kit MTD-951-11555
...
164
CYLINDER HEAD GASKET Furnish 951-11746, Cylinder Head MTD-951-11555
...
164
CYLINDER HEAD GASKET Furnish 951-11747, Shortblock Assembly MTD-951-11555
...
165
Cylinder Head Dowel 10x16 MTD-715-04108
...
165
Cylinder Head Dowel 10x16 Furnish 951-11747, Shortblock Assembly MTD-715-04108
...
166
Push Rod (2 per order) MTD-951-10314
...
167
Tappet MTD-951-11607
...
167
Tappet Furnish 951-11747, Shortblock Assembly MTD-951-11607
...
168
Camshaft Assembly MTD-951-11741
...
168
Camshaft Assembly Furnish 951-11747, Shortblock Assembly MTD-951-11741
...
169
Piston Ring Set MTD-951-11688
...
169
Piston Ring Set Furnish 951-11747, Shortblock Assembly MTD-951-11688
...
174
Piston Pin Snap Ring MTD-951-11603
...
174
Piston Pin Snap Ring Furnish 951-11747, Shortblock Assembly MTD-951-11603
...
175
PISTON MTD-951-11605
...
175
PISTON Furnish 951-11747, Shortblock Assembly MTD-951-11605
...
176
Piston Pin MTD-951-11604
...
176
Piston Pin Furnish 951-11747, Shortblock Assembly MTD-951-11604
...
177
CONNECTING ROD ASSEMBLY MTD-951-11744
...
177
CONNECTING ROD ASSEMBLY Furnish 951-11747, Shortblock Assembly MTD-951-11744
...
180
CONNECTING ROD BOLT MTD-710-05162
...
xx
Carburetor Repair Kit - Major Not Shown (Incl. Ref No. 116,118,123,124,128-134,137) MTD-951-11708
...
xx
GASKET KIT (EXTERNAL) Not Shown (Incl. Ref No. 43,97,99,138-140,155,159) MTD-951-11710
...
xx
Gasket Kit, Complete Not Shown (Incl. Ref No. 40,43,72,77,97,99,103,138-140,155,159,164) MTD-951-11709
...
xx
CYLINDER HEAD SERVICE KIT Not Shown (Incl. Ref No. 143,146,155,164) MTD-951-10846A
...
xx
CYLINDER HEAD Not Shown (Incl. Ref No. 139,140,142,144-149,151-155,159,164) MTD-951-11746
...
xx
Fuel Line Kit Not Shown (Incl. Ref No. 58-60) MTD-951-10363
...
xx
SHORTBLOCK ASSEMBLY Not Shown (Incl. Ref No. 37,40-46,71-73,77-79,80,81,83,84,85,98-103,109,139,140,155,159,164,165,167-169,174-177) MTD-951-11747
...
xx
Oil Drain Plug & Washer Ass'y Not Shown (Incl. Ref No. 98,99) MTD-951-10370
...
xx
Air Cleaner Housing Ass'y Not Shown (Incl. Ref No. 105,108) MTD-951-10739
...
xx
Valve Kit Not Shown (Incl. Ref No. 145,147) MTD-951-10313
...
xx
Recoil Pulley & Spring Ass'y Not Shown (Incl. Ref No. 5,6) MTD-951-11721
...
xx
MUFFLER STUD ASSEMBLY Not Shown (Incl. Ref No. 158) MTD-951-11745
...
xx
COMPLETE ENGINE 139cc Not Shown MTD-952Z1P65BU
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
