MTD OHV Engines 1P61N0 Engine

Model: 1P61N0 Engine

Save Part Not Listed?
product name

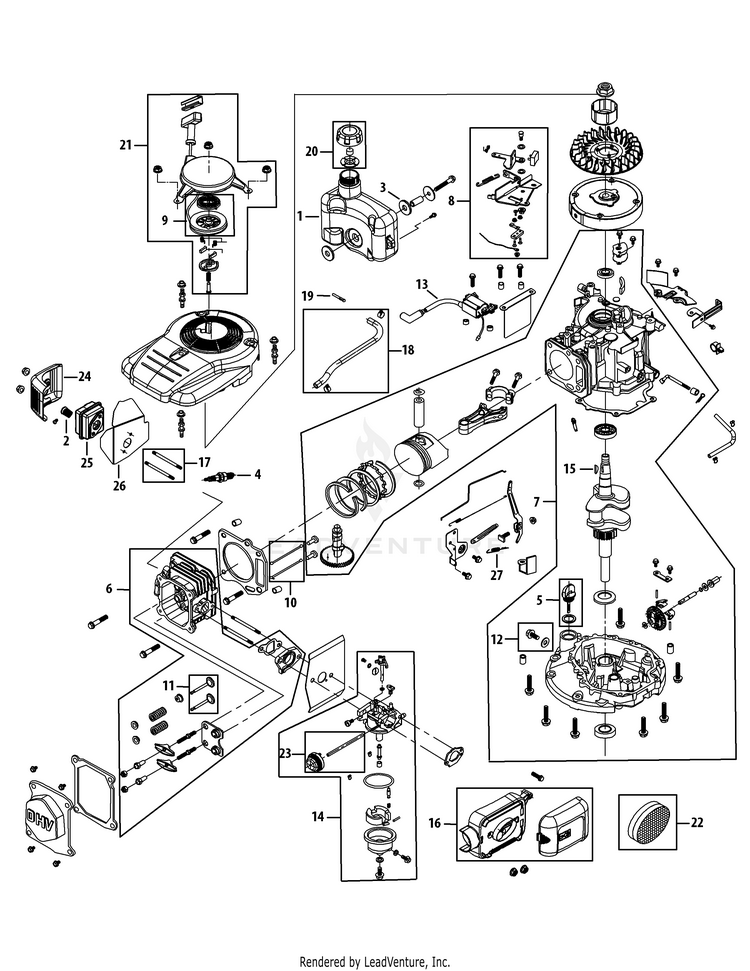

Engine Assembly 1P61N0

...
...
1
FUEL TANK MTD-951-10337
...
2
SPARK ARRESTOR MTD-951-10737
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Spark Plug MTD-951-10292A
...
4
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
5
Dipstick Assembly MTD-951-10617
...
6
CYLINDER HEAD ASSEMBLY MTD-951-10743
...
7
SHORTBLOCK ASSEMBLY MTD-951-10742
...
8
STOP SWITCH BRAKE ASSEMBLY MTD-951-10740
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
IGNITION COIL MTD-951-10937
...
14
Carburetor Assembly MTD-951-10736
...
15
Flywheel Key MTD-951-10307
...
16
Air Cleaner Housing Assembly Complete MTD-951-10739
...
17
MUFFLER STUD ASSEMBLY MTD-951-10747
...
18
Fuel Line Kit - Inc. hose & clamps MTD-951-10363
...
19
Fuel Filter MTD-951-10358
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter Assembly MTD-951-10299
...
22
Air Filter MTD-951-10732
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10732
...
23
Primer Assembly MTD-951-10814
...
24
MUFFLER SHIELD MTD-951-10735
...
25
MUFFLER ASSEMBLY MTD-951-10734
...
26
MUFFLER GASKET MTD-951-10741
...
27
GOVERNOR RETURN SPRING MTD-951-10733
...
xx
CYLINDER HEAD SERVICE KIT Not shown MTD-951-10744
...
xx
CARBURETOR KIT (MAJOR) Not shown, (Inc. Bowl Gasket, Float, Dust Seals, Main Jet, Pilot Screw, Idle Speed Adjusting Screw, Needle Valve Spring, Float Pin, Fuel Cup Gasket, Fuel Drain Plug Gasket) MTD-951-10738
...
xx
GASKET KIT (COMPLETE) MTD-951-10746
...
xx
GASKET KIT (EXTERNAL) Not shown, (Inc. Breather Gasket, Valve Cover Gasket, Carburetor to Insulator Gasket, Carburetor Insulator Plate, Muffler Gasket, Crankcase Drain Bolt Washer, Dipstick O-Ring) MTD-951-10745
...
xx
COMPLETE ENGINE 123cc Not shown MTD-952Z1P61N0
