MTD OHV Engines 170-SU Engine

Model: 170-SU Engine

Back To Assemblies

Save Part Not Listed?
product name

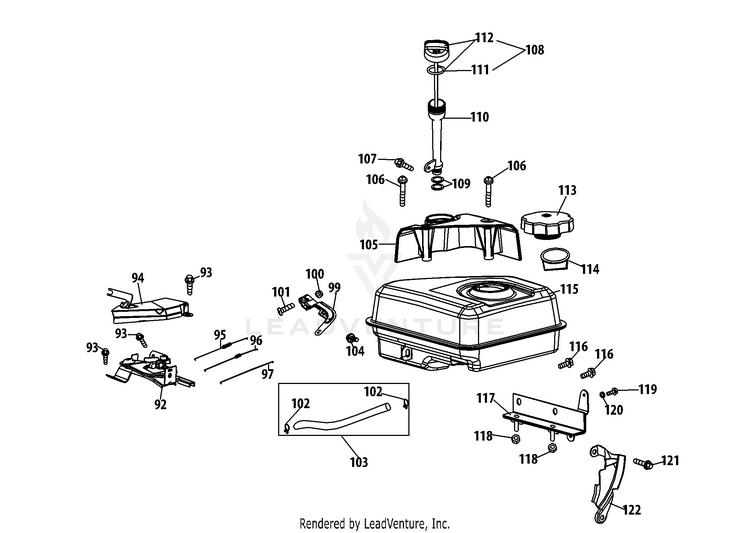

170-SU Fuel Tank & Mounting

...
...
92
Throttle Bracket MTD-951-10758
...
93
Bolt M6×12 MTD-710-05103
...
94
Governor Linkage Shield MTD-951-11108
...
95
Governor Spring MTD-951-11935
...
96
THROTTLE SPRING MTD-751P10664A
...
97
THROTTLE LINKAGE MTD-751P10665A
...
99
Governor Arm MTD-951-11106
...
100
Nut M6 MTD-712-05015
...
101
Governor Arm Bolt MTD-710-04908
...
102
CARBURETOR HOSE CLAMP MTD-951-11700A
...
103
Fuel Line Kit MTD-951-10650
...
104
Bolt M6×12 MTD-710-04915
...
105
Dipstick Decoration Cover MTD-951-11914
...
106
Bolt MTD-710-04905
...
107
Bolt M6×12 MTD-710-04915
...
108
Dipstick Assembly MTD-951-12482
...
109
O-Ring MTD-951-11381
...
110
Oil Fill Tube Assembly MTD-951-11913
...
111
Dipstick O-Ring MTD-951-11904
...
112
Dipstick Assembly MTD-631-05020AP
...
113
Fuel Cap Assembly MTD-951-12533
...
114
Fuel Level Indicator MTD-951-11933
...
115
Fuel Tank Assembly MTD-951-10653B
...
116
Bolt M6×10 MTD-710-04914
...
117
Switch Housing Mounting Bracket MTD-951-11114
...
118
Nut, M6 MTD-712-05015
...
119
BOLT M4 x 10 MTD-710-05197
...
120
WASHER MTD-736-04526
...
121
Bolt M6×20 MTD-710-04915
...
122
BLOWER HOUSING SHIELD MTD-951-14138A
