MTD OHV Engines 170-NU 280cc Engine

Model: 170-NU 280cc Engine

Back To Assemblies

Save Part Not Listed?
product name

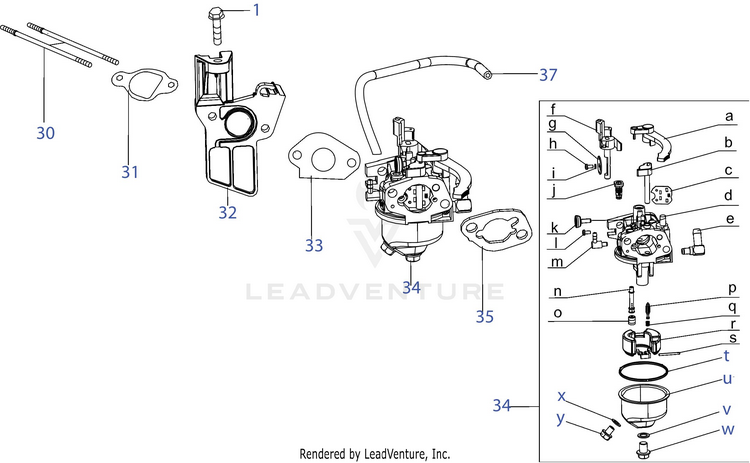

170-NU Carburetor

...
...
1
Bolt M6x16 MTD-710-04968
...
30
Stud M6x110 MTD-710-05101
...
31
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
32
Carburetor Insulator MTD-951-15032
...
33
CARBURETOR GASKET MTD-751P12005B
...
34
Carburetor MTD-951-05288
...
35
CARBURETOR GASKET PLATE MTD-951-11571
...
37
Fuel Hose 3.2x6.5x240 MTD-951-14983
...
a
Choke Lever MTD-NA
...
b
Gasket MTD-NA
...
c
Choke Plate MTD-NA
...
d
Carburetor Body MTD-NA
...
e
Inlet Tube Assembly MTD-NA
...
f
Throttle Plate MTD-NA
...
g
Throttle Plate MTD-NA
...
h
Bolt M3x6 MTD-NA
...
i
Washer 3 MTD-NA
...
j
Idle Jet MTD-NA
...
k
Idle Speed Adjusting Screw MTD-NA
...
l
Mixture Screw MTD-NA
...
m
Primer Pipe MTD-NA
...
n
Nozzle Tube MTD-NA
...
o
Main Jet MTD-NA
...
p
Needle Valve MTD-NA
...
q
Needle Valve Spring MTD-NA
...
r
Float MTD-NA
...
s
Float Pin MTD-NA
...
t
O-Ring, Float Bowl MTD-NA
...
u
FLOAT BOWL MTD-908-05000
...
v
FUEL BOWL GASKET MTD-951-11348A
...
w
Bolt, Float Bowl MTD-710-04945
...
x
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
y
FUEL DRAIN PLUG MTD-710-04938
