MTD OHV Engines 170-NU 280cc Engine

Model: 170-NU 280cc Engine

Back To Assemblies

Save Part Not Listed?
product name

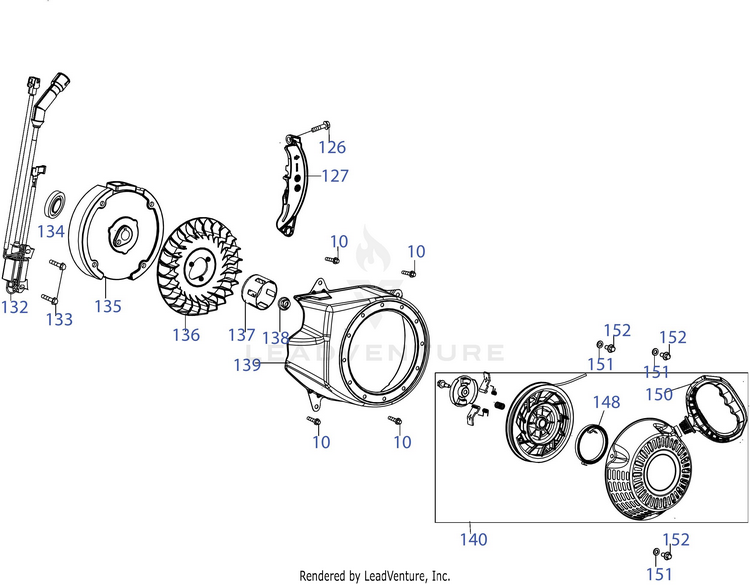

170-NU Flywheel & Blower Housing

...
...
10
Bolt M6x12 MTD-710-04915
...
126
Bolt M6x20 MTD-710-04918
...
127
Lower Shield MTD-951-15030
...
132
Ignition Module MTD-951-15023
...
133
Bolt M6x25 MTD-710-04919
...
134
OIL SEAL MTD-751P11370A
...
135
Flywheel MTD-951-15024
...
136
Cooling Fan MTD-951-15025
...
137
Pulley, Starter MTD-951-14887
...
138
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
139
BLOWER HOUSING MTD-951-11583
...
140
Recoil Starter MTD-951-14755
...
148
Recoil Spring MTD-932-05114
...
150
STARTER HANDLE MTD-931-10379
...
151
FLAT WASHER MTD-736-04455B
...
152
Bolt M6x12 MTD-710-06354
