MTD OHV Engines 170-C0A-11 Engine

Model: 170-C0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

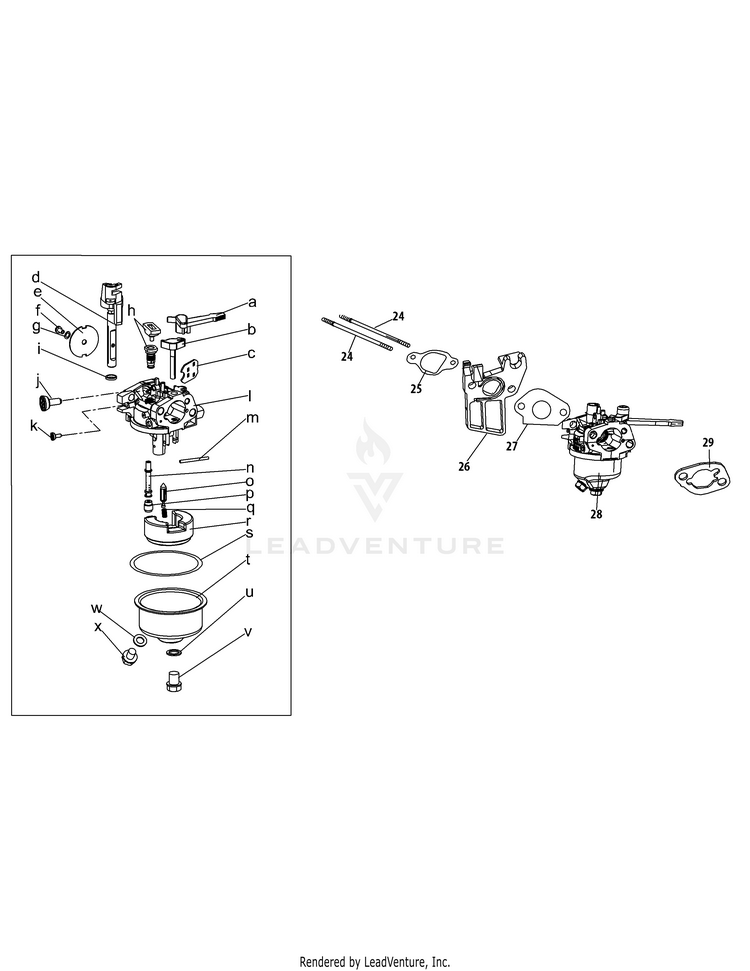

170-C0A-11 Carburetor

...
...
24
Stud M6×110 MTD-710-05101
...
25
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
26
INSULATOR MTD-751P11568A
...
27
CARBURETOR GASKET MTD-751P12005B
...
28
Carburetor Assembly MTD-951-12785
...
29
CARBURETOR GASKET PLATE MTD-951-11571
...
a
CHOKE CONTROL LEVER MTD-751P20448
...
b
Choke Shaft MTD-NA
...
c
Choke Plate MTD-NA
...
d
Throttle Shaft MTD-NA
...
e
Throttle Plate MTD-NA
...
f
Screw M3×5 MTD-NA
...
g
Lock Washer MTD-NA
...
h
Idle Jet Assembly MTD-NA
...
i
Gasket, Throttle Plate MTD-NA
...
j
Idle Speed Adjusting Screw MTD-NA
...
k
Mixture Screw MTD-NA
...
l
Carburetor Body MTD-NA
...
m
Float Pin MTD-NA
...
n
Emulsion Tube MTD-NA
...
o
Needle Valve MTD-NA
...
p
Main Jet MTD-NA
...
q
Needle Valve Spring MTD-NA
...
r
Float MTD-NA
...
s
Fuel Bowl Gasket MTD-951-11589
...
t
Fuel Bowl MTD-NA
...
u
FUEL BOWL GASKET MTD-951-11348A
...
v
Fuel Bowl Mounting Bolt MTD-710-04945
...
w
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
x
FUEL DRAIN PLUG MTD-710-04938
...
xx
Carburetor Kit - Major Not shown (Incl.h,I,j,m,n,o,p,q,r,s,u,w) MTD-951-12119A
