MTD OHV Engines 165-SUB Engine 2010 & After

Model: 165-SUB Engine 2010 & After

Save Part Not Listed?
product name

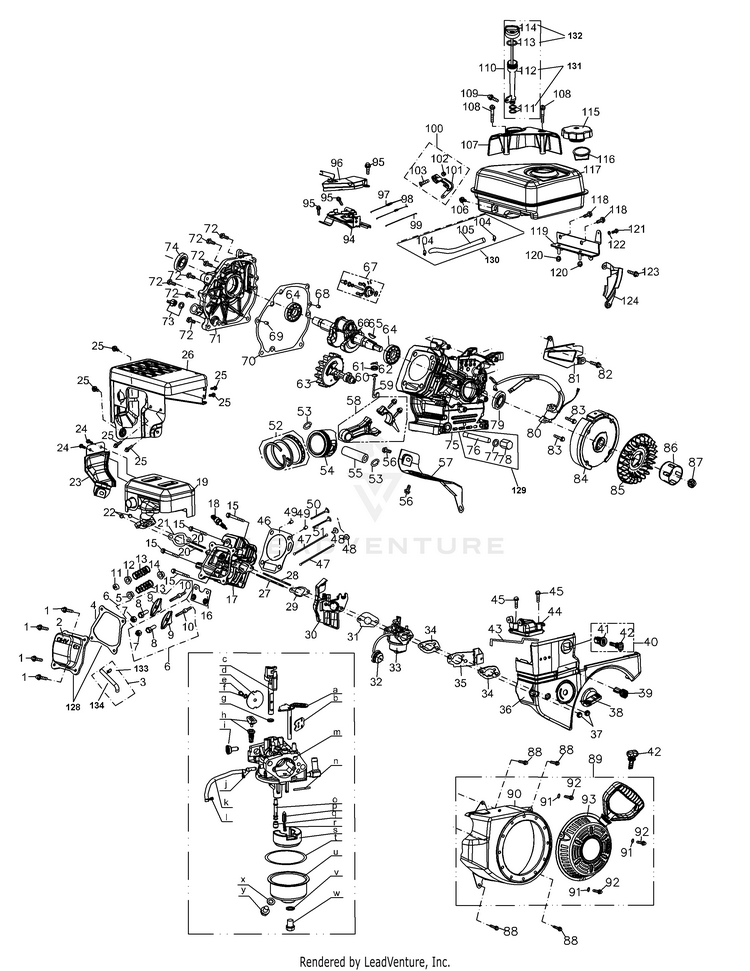

Engine Assembly 165-SUB 2010 & After

...
...
1
Flange Bolt M6 X 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
3
Breather Hose Assembly Furnish Components MTD-NA
...
4
VALVE COVER GASKET Also Available In Kit Below MTD-751P11565B
...
5
Intake Valve Spring Retainer Also Available In Kit Below MTD-951-12000
...
6
ROCKER ARM KIT Incl. 1x of Ref No.. 7-10 MTD-951-11892
...
7
Nut - Pivot Locking Also Available In Kit Below MTD-751-11124
...
8
Nut - Valve Adjust Also Available In Kit Below MTD-751-11123
...
9
Rocker Arm Also Available In Kit Below MTD-951-11893
...
10
Bolt - Pivot Also Available In Kit Below MTD-710-04902
...
11
EXHAUST VALVE ADJUSTER Also Available In Kit Below MTD-751P12002A
...
12
Exhaust Valve Spring Retainer Also Available In Kit Below MTD-951-12003
...
13
VALVE SPRING Also Available In Kit Below MTD-751P12004A
...
14
Intake Valve Seal Also Available In Kit Below MTD-951-11894
...
15
Bolt - M8 X 55 Zin MTD-710-04933
...
16
Push Rod Guide Also Available In Kit Below MTD-951-11895
...
17
Cylinder Head Complete Furnish Cylinder Head Kit MTD-NA
...
18
Plug, Spark MTD-951-10292A
...
18
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
19
MUFFLER ASSEMBLY MTD-951-11282
...
20
Muffler Stud Assembly MTD-951-10657
...
20
Muffler Stud MTD-710-05001
...
21
MUFFLER GASKET Also Available In Kit Below MTD-751P11289A
...
22
Nut MTD-712-04218
...
23
Shield - Exhaust Pipe MTD-951-11111
...
24
Bolt - Flange M6 MTD-710-04914
...
25
Bolt - M6 X 12 Zin MTD-710-04915
...
26
MUFFLER SHROUD MTD-951-10642B
...
27
Stud-Carb MTD-710-04939
...
28
Stud - M6 X 105 MTD-710-04910
...
29
CARBURETOR INSULATOR GASKET Also Available In Kit Below MTD-751P11567B
...
30
Carburetor Insulator Also Available In Kit Below MTD-951-11896A
...
31
CARBURETOR GASKET Also Available In Kit Below MTD-751P12005B
...
32
PRIMER MTD-951-10639B
...
32
Primer Bulb Only MTD-951-11824
...
33
Carburetor Assembly MTD-951-12705
...
34
CARBURETOR GASKET Also Available In Kit Below MTD-751P11897B
...
35
Bracket - Choke Control MTD-951-11112
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
40
Ignition Switch Assembly MTD-951-10637
...
41
Ignition Switch Furnish Assembly MTD-NA
...
42
Ignition Key MTD-951-10630
...
43
Push Rod-Choke MTD-951-10640
...
44
Air Filter Heating Pipe Cover MTD-951-10635
...
45
Bolt - Flange M6 X MTD-710-04919
...
46
Gasket-Cylinder Head Also Available In Kit Below MTD-951-11898
...
47
Kit-Push Rod MTD-951-10648
...
48
Tappet Also Available In Kit Below MTD-951-11899
...
49
Dowel Pin 10×16 Also Available In Kit Below MTD-715-04108
...
50
Valve Kit Also Available In Kit Below MTD-951-10647A
...
51
Valve Kit Also Available In Kit Below MTD-951-10647A
...
52
Piston Ring Set Also Available In Kit Below MTD-951-11688
...
53
PISTON PIN SNAP RING Also Available In Kit Below MTD-951-11632
...
54
Piston Also Available In Kit Below MTD-951-11900
...
55
Piston Pin Also Available In Kit Below MTD-951-11901
...
56
Bolt - M6 X 12 Zin MTD-710-04915
...
57
Shield - Air MTD-951-11113
...
58
CONNECTING ROD Also Available In Kit Below MTD-751P11573A
...
59
Governor Shaft Also Available In Kit Below MTD-951-14053
...
60
Washer Also Available In Kit Below MTD-736-04461
...
61
OIL SEAL Also Available In Kit Below MTD-951-11902A
...
62
Cotter Pin Also Available In Kit Below MTD-714-04078
...
63
CAMSHAFT ASSEMBLY Also Available In Kit Below MTD-951-11575
...
64
Bearing Also Available In Kit Below MTD-951-11369
...
65
WOODRUFF KEY Also Available In Kit Below MTD-751P10307A
...
66
Crankshaft Furnish Crankshaft Kit MTD-NA
...
67
GOVERNOR GEAR Also Available In Kit Below MTD-751P11576A
...
68
DOWEL PIN 9 X 14 Also Available In Kit Below MTD-715-04096A
...
69
DOWEL PIN 9 X 14 Also Available In Kit Below MTD-715-04096A
...
70
CRANKCASE GASKET Also Available In Kit Below MTD-751P11371B
...
71
Crankcase cover Furnish Crankcase Cover Kit MTD-NA
...
72
Bolt Also Available In Kit Below MTD-710-04932
...
73
Oil Fill Plug Assembly Also Available In Kit Below MTD-951-11283
...
73
O-RING 15.8 x 2.5 Also Available In Kit Below MTD-951-11577
...
74
OIL SEAL Also Available In Kit Below MTD-751P11368A
...
75
Crankcase Furnish Crankcase Kit MTD-NA
...
76
OIL DRAIN PIPE Also Available In Kit Below MTD-951-11350A
...
77
FLAT WASHER Also Available In Kit Below MTD-736-04440A
...
78
Bolt - Drain Plug Also Available In Kit Below MTD-710-04906
...
79
OIL SEAL Also Available In Kit Below MTD-751P11370A
...
80
Ignition Module MTD-951-10646A
...
81
Shield - Air Flow MTD-951-11110
...
82
Bolt MTD-710-04940
...
83
Bolt - Flange M6 X MTD-710-04919
...
84
Flywheel MTD-951-10805
...
85
COOLING FAN MTD-951-10909B
...
86
Starter Cup MTD-951-10911
...
87
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
88
Bolt M6×12 MTD-710-05103
...
89
RECOIL STARTER ASSEMBLY Furnish Components MTD-951-14151
...
90
FAN COVER-COMPLETE MTD-951-11509
...
91
FLAT WASHER MTD-736-04455B
...
92
Flange Bolt M6 X 1 MTD-710-04974
...
93
Recoil Starter MTD-951-14151
...
94
Throttle Control Assembly MTD-951-10758
...
95
Bolt-M6 X 12 MTD-710-05103
...
96
Shield - Governor MTD-951-11108
...
97
Governor Spring MTD-951-11935
...
98
THROTTLE SPRING MTD-751P10664A
...
99
THROTTLE LINKAGE MTD-751P10665A
...
100
Governor Arm Assembly Furnish Components MTD-NA
...
101
Bracket - Governor Arm MTD-951-11106
...
102
Nut M6 MTD-712-05015
...
103
Bolt - M6 X 21 Gov MTD-710-04908
...
104
CARBURETOR HOSE CLAMP MTD-951-11700A
...
105
Fuel Line Furnish Assembly MTD-NA
...
106
Bolt M6×12 MTD-710-05103
...
107
Engine/Dipstick Cover MTD-951-11914
...
108
Bolt MTD-710-04905
...
109
Bolt M6×12 MTD-710-05103
...
110
Dipstick Assembly Complete Furnish Components MTD-NA
...
111
Oil Fill Tube O-Ring MTD-951-11381
...
112
Dipstick Tube Furnish Assembly MTD-NA
...
113
Dipstick O-Ring MTD-951-11904
...
114
Oil Cap Furnish Assembly MTD-NA
...
115
Fuel Cap Assembly MTD-951-12533
...
116
Fuel Level Indicator MTD-951-11933
...
117
Fuel Tank Assembly MTD-951-10653B
...
118
Bolt - Flange M6 X MTD-710-04914
...
119
Bracket - Switch Housing Mount MTD-951-11114
...
120
Nut M6 MTD-712-05015
...
121
BOLT M4 x 10 MTD-710-05197
...
122
WASHER MTD-736-04526
...
123
Bolt - Flange M6 X MTD-710-04918
...
124
Shield - Blower Housing MTD-951-11109
...
126
Fuel Tank Nipple MTD-951-10651
...
127
Starter Handle MTD-731-05696
...
128
Valve Cover Kit Incl. Ref No. 2 & 4 MTD-951-12626
...
129
Oil Drain Assembly Incl. Ref No. 76-78 MTD-951-10641
...
130
Fuel Line Kit Incl. Ref No. 104 & 105 MTD-951-10650
...
131
Oil Fill Tube Assembly Incl. Ref No. 111 & 112 MTD-951-11913
...
132
Dipstick Assembly Incl. Ref No. 113 & 114 MTD-951-11912
...
133
Hose Clamp MTD-726-04101
...
134
Breather Hose MTD-731-07059
...
a
Choke Shaft Furnish Carburetor Kit MTD-NA
...
b
Plate Furnish Carburetor Kit MTD-NA
...
c
Throttle Shaft Furnish Carburetor Kit MTD-NA
...
d
Choke Plate Furnish Carburetor Kit MTD-NA
...
e
Screw Furnish Carburetor Kit MTD-NA
...
f
Washer Furnish Carburetor Kit MTD-NA
...
g
Throttle Pressure Lock Plate Furnish Carburetor Kit MTD-NA
...
h
Idle Jet Assembly Furnish Carburetor Kit MTD-NA
...
i
Idle Speed Adjusting Screw Furnish Carburetor Kit MTD-NA
...
j
Plug Furnish Carburetor Kit MTD-NA
...
k
PRIMER HOSE Also Available In Kit Below MTD-951-11699A
...
l
Hose Clamp Also Available In Kit Below MTD-951-11906
...
m
Carburetor Furnish Carburetor Kit MTD-NA
...
n
Float Pin Furnish Carburetor Kit MTD-NA
...
o
Main Nozzle Furnish Carburetor Kit MTD-NA
...
p
Needle Valve Furnish Carburetor Kit MTD-NA
...
q
Main Jet Furnish Carburetor Kit MTD-NA
...
r
Needle Valve Spring Furnish Carburetor Kit MTD-NA
...
s
FLOAT Furnish Carburetor Kit MTD-731P09132A
...
t
Fuel Bowl Gasket Also Available In Kit Below MTD-951-11589
...
u
Fuel Bowl Furnish Carburetor Kit MTD-NA
...
v
FUEL BOWL GASKET Also Available In Kit Below MTD-951-11348A
...
w
Bolt-Fuel Bowl Mounting Also Available In Kit Below MTD-710-04945
...
x
FUEL DRAIN PLUG GASKET Also Available In Kit Below MTD-951-11349A
...
y
FUEL DRAIN PLUG Also Available In Kit Below MTD-710-04938
...
xx
Crankcase Cover Kit (not shown) Incl. Ref No. 64,70-74 MTD-951-11246
...
xx
Crankshaft Kit (not shown) Incl. Ref No. 64-66,76 & 79 MTD-951-11247A
...
xx
CRANKCASE KIT (not shown) Incl. Ref No. 61,64,74,75 & 79 MTD-951-11248A
...
xx
Carburetor Repair Kit - HAUYI (not shown) Incl. Ref No. g,n,o,p,q,r,s,t,v,x MTD-951-14050
...
xx
Carburetor Repair Kit - DENI (not shown) Incl. Ref No. g,n,o,p,q,r,s,t,v,x MTD-951-12712
...
xx
Short Block (not shown) Incl. Ref No. 4,21,29,30,46,48,49,52-55,58-79 MTD-951-11062B
...
xx
Cylinder Head Assembly (not shown) Incl. Ref No. 4,5,7-14,16,17,21,29,30,46, 50 & 51 MTD-951-10722B
...
xx
Gasket Kit-Complete (not shown) Incl. Ref No. 4,21,29-31,34,46,60,61,70,74,77 & 79 MTD-951-11061A
...
xx
Gasket Kit-External (not shown) Incl. Ref No. 4,21,29-31,34 & 77 MTD-951-10661B
