MTD OHV Engines 165-SU Engine

Model: 165-SU Engine

Save
 Part Not Listed?Part Not Listed?
product name

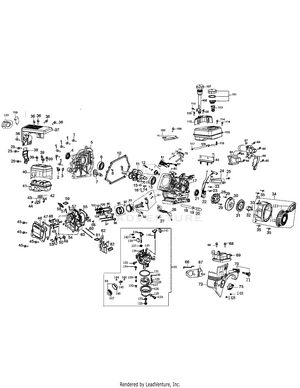

Engine Assembly 165-SU

...
...
1
Bolt Furnish 951-10724 Short Block Assy MTD-NA
...
2
Oil Fill Plug Assembly Furnish 951-10724 Short Block Assy MTD-951-10669
...
2
Oil Fill Plug Assembly Furnish 951-10724 Short Block Assy MTD-951-10669
...
3
O-ring Furnish 951-10724 Short Block Assy MTD-NA
...
4
Oil seal, 25 × 41.25 × 6 Furnish 951-10724 Short Block Assy MTD-NA
...
4
Oil seal, 25 × 41.25 × 6 Furnish 951-10723 Gasket - Complete MTD-NA
...
5
Crankcase cover Furnish 951-10724 Short Block Assy MTD-NA
...
6
Radial Ball Bearing Furnish 951-10724 Short Block Assy MTD-NA
...
7
Camshaft Assembly Furnish 951-10724 Short Block Assy MTD-NA
...
8
Dowel Pin, 9 × 14 Furnish 951-10724 Short Block Assy MTD-NA
...
9
Dowel Pin, 7 × 14 Furnish 951-10724 Short Block Assy MTD-NA
...
10
Crankcase Cover Gasket Furnish 951-10724 Short Block Assy MTD-NA
...
10
Crankcase Cover Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
11
Crankshaft Complete Furnish 951-10724 Short Block Assy MTD-NA
...
12
Governor Kit Furnish 951-10724 Short Block Assy MTD-NA
...
13
Radial Ball Bearing Furnish 951-10724 Short Block Assy MTD-NA
...
14
Pin Lock Furnish 951-10724 Short Block Assy MTD-NA
...
15
O-ring, 5.2 × 1.9 Furnish 951-10724 Short Block Assy MTD-NA
...
15
O-ring, 5.2 × 1.9 Furnish 951-10723 Gasket - Complete MTD-NA
...
16
Governor Arm Furnish 951-10724 Short Block Assy MTD-NA
...
17
Crankcase Furnish 951-10724 Short Block Assy MTD-NA
...
18
Oil-Draining Pipe Furnish 951-10724 Short Block Assy MTD-951-10641
...
18
Oil-Draining Pipe Furnish 951-10723 Gasket - Complete MTD-951-10641
...
18
Oil Drain Assembly (Incl. Ref No. 18-20) MTD-951-10641
...
19
Washer, 10 × 16 × 1.5 Furnish 951-10724 Short Block Assy MTD-NA
...
19
Washer, 10 × 16 × 1.5 Furnish 951-10723 Gasket - Complete MTD-NA
...
20
Drain Bolt, 10 × 1.25 Furnish 951-10724 Short Block Assy MTD-NA
...
20
Drain Bolt, 10 × 1.25 Furnish 951-10723 Gasket - Complete MTD-NA
...
21
Oil Seal, 25 × 41.25 × 6 Furnish 951-10724 Short Block Assy MTD-NA
...
21
Oil Seal, 25 × 41.25 × 6 Furnish 951-10723 Gasket - Complete MTD-NA
...
22
Ignition Module Electric Start Unit Only MTD-951-10646A
...
28
Alternator Assembly Electric Start Unit Only MTD-951-12050A
...
30
Flywheel MTD-951-10805
...
31
COOLING FAN MTD-951-10909B
...
32
Starter Cup MTD-951-10911
...
34
RECOIL STARTER ASSEMBLY MTD-951-14151
...
35
Bolt, Flange M6 x 16 MTD-710-04968
...
37
Muffler Shield MTD-951-10642B
...
40
MUFFLER GUARD MTD-908-05022
...
41
Muffler Assembly (Incl. Ref No. 41 & 43) MTD-951-11282
...
42
Gasket Furnish 951-10723 Gasket - Complete MTD-951-10666
...
42
Gasket MTD-951-10666
...
47
Valve Cover Gasket Furnish 951-10722 Cylinder Head Assy MTD-NA
...
47
Valve Cover Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
47
Valve Cover Gasket Furnish 951-10952 Gasket Kit - External MTD-NA
...
49
Plate Push Rod Guide Furnish 951-10722 Cylinder Head Assy MTD-NA
...
50
Pivot Bolt Furnish 951-10722 Cylinder Head Assy MTD-NA
...
51
Rocker Arm Furnish 951-10722 Cylinder Head Assy MTD-NA
...
52
Valve Adjusting Nut Furnish 951-10722 Cylinder Head Assy MTD-NA
...
53
Pivot Locking Nut Furnish 951-10722 Cylinder Head Assy MTD-NA
...
54
Cylinder Head Complete Furnish 951-10722 Cylinder Head Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10724 Short Block Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10722 Cylinder Head Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
56
Dowel Pin, 10 × 16 Furnish 951-10724 Short Block Assy MTD-NA
...
57
Muffler Stud Assembly, 8 × 34 MTD-951-10657
...
58
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
59
Gasket Muffler Furnish 951-10724 Short Block Assy MTD-NA
...
59
Gasket Muffler Furnish 951-10722 Cylinder Head Assy MTD-NA
...
59
Gaske tMuffler Furnish 951-10723 Gasket - Complete MTD-NA
...
59
Gasket Muffler Furnish 951-10952 Gasket Kit - External MTD-NA
...
61
Insulator Gasket Carburetor Furnish 951-10724 Short Block Assy MTD-NA
...
61
Carburetor Insulator Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
61
Carburetor Insulator Gasket Furnish 951-10952 Gasket Kit - External MTD-NA
...
62
Insulator Carburetor Furnish 951-10724 Short Block Assy MTD-NA
...
62
Carburetor Insulator Furnish 951-10723 Gasket - Complete MTD-NA
...
62
Carburetor Insulator Furnish 951-10952 Gasket Kit - External MTD-NA
...
63
Carburetor Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
63
Gasket Carburetor Furnish 951-10952 Gasket Kit - External MTD-NA
...
65
Carburetor Assembly MTD-951-12705
...
66
Choke Push Rod MTD-951-10640
...
69
Air Filter Heating Pipe Cover MTD-951-10635
...
70
Key Switch MTD-951-10637
...
71
Ignition Key MTD-951-10630
...
72
Air Cleaner Housing MTD-951-10634A
...
73
Choke Knob MTD-951-11284
...
77
Spring Governor MTD-951-10654
...
78
THROTTLE SPRING MTD-751P10664A
...
79
THROTTLE LINKAGE MTD-751P10665A
...
81
Throttle Control Assembly MTD-951-10758
...
82
THROTTLE LEVER KNOB MTD-751P10757A
...
84
Electric Starter, 110v Electric Start Unit Only MTD-951-10645A
...
91
Connecting Rod Assembly Furnish 951-10724 Short Block Assy MTD-NA
...
92
Piston Pin Clip Furnish 951-10724 Short Block Assy MTD-NA
...
93
Piston Furnish 951-10724 Short Block Assy MTD-NA
...
94
Pin Piston Furnish 951-10724 Short Block Assy MTD-NA
...
97
Push Rod Furnish 951-10723 Gasket - Complete MTD-951-10648
...
97
Push Rod Kit MTD-951-10648
...
98
Valve Kit Furnish 951-10722 Cylinder Head Assy MTD-951-10647A
...
98
Valve Kit Furnish 951-10723 Gasket - Complete MTD-951-10647A
...
98
Valve Kit (Incl. Ref No. 98 & 103) MTD-951-10647A
...
99
Valve Seal Furnish 951-10722 Cylinder Head Assy MTD-NA
...
100
Spring Valve Furnish 951-10722 Cylinder Head Assy MTD-NA
...
101
Exhaust Valve Spring Retainer Furnish 951-10722 Cylinder Head Assy MTD-NA
...
102
Exhaust Valve Adjuster Furnish 951-10722 Cylinder Head Assy MTD-NA
...
103
Intake Valve Furnish 951-10722 Cylinder Head Assy MTD-NA
...
103
Intake Valve Furnish 951-10723 Gasket - Complete MTD-NA
...
104
Internal Valve Spring Retainer Furnish 951-10722 Cylinder Head Assy MTD-NA
...
107
OIL DIPSTICK ASSEMBLY MTD-631-05020AP
...
108
OIL DIPSTICK ASSEMBLY MTD-631-05020AP
...
110
Dipstick Decoration Cover MTD-951-10662
...
110
ENGINE/DIPSTICK COVER Used with 631-05020AP MTD-951-11914
...
111
Fuel Cap Assembly MTD-951-12533
...
112
Recoil Housing MTD-951-12644
...
113
Fuel Filter MTD-951-10652
...
115
Fuel Tank Assembly MTD-951-10653B
...
116
Nipple Fuel Tank MTD-951-10651
...
117
Fuel Line Kit (Incl. Ref No. 117 & 118) MTD-951-10650
...
121
Recoil Starter MTD-951-14151
...
121
Starter Handle MTD-731-05696
...
122
Fuel Drain Plug Furnish 951-10974 Carburetor Assy MTD-NA
...
123
Fuel Cup Fixed Bolt Packing Furnish 951-10974 Carburetor Assy MTD-NA
...
124
Fuel Drain Plug Furnish 951-10974 Carburetor Assy MTD-NA
...
125
Fuel Drain Plug Gasket Furnish 951-10974 Carburetor Assy MTD-NA
...
126
Fuel Cup Furnish 951-10974 Carburetor Assy MTD-NA
...
127
FLOAT Furnish 951-10974 Carburetor Assy MTD-731P09132A
...
128
Floating Pin Furnish 951-10974 Carburetor Assy MTD-NA
...
129
Needle Valve Spring Furnish 951-10974 Carburetor Assy MTD-NA
...
130
Needle Valve Furnish 951-10974 Carburetor Assy MTD-NA
...
131
O-ring Packing Furnish 951-10974 Carburetor Assy MTD-NA
...
132
Main Jet Furnish 951-10974 Carburetor Assy MTD-NA
...
133
Main Nozzle Furnish 951-10974 Carburetor Assy MTD-NA
...
134
Idle Jet Assembly Furnish 951-10974 Carburetor Assy MTD-NA
...
135
Idle Speed Adjusting Screw Furnish 951-10974 Carburetor Assy MTD-NA
...
136
Carburetor Body Furnish 951-10974 Carburetor Assy MTD-NA
...
137
Fiber Seal Furnish 951-10974 Carburetor Assy MTD-NA
...
138
Choke Plate Furnish 951-10974 Carburetor Assy MTD-NA
...
139
Throttle Shaft Furnish 951-10974 Carburetor Assy MTD-NA
...
140
Choke Plate Furnish 951-10974 Carburetor Assy MTD-NA
...
141
Choke Shaft Furnish 951-10974 Carburetor Assy MTD-NA
...
142
Cross Screw Furnish 951-10974 Carburetor Assy MTD-NA
...
143
Position Spring Furnish 951-10974 Carburetor Assy MTD-NA
...
144
Clip Furnish 951-10974 Carburetor Assy MTD-NA
...
145
Fuel Hose Furnish 951-10974 Carburetor Assy MTD-NA
...
146
Primer Base Furnish 951-10974 Carburetor Assy MTD-NA
...
147
PRIMER Furnish 951-10974 Carburetor Assy MTD-951-10639B
...
147
PRIMER MTD-951-10639B
...
149
WOODRUFF KEY MTD-751P10307A
...
xx
Short Block (Not shown) MTD-951-11062B
...
xx
Cylinder Head Kit (Not shown) MTD-951-10722B
...
xx
Gasket Kit - Complete (Not shown) MTD-951-10723A
...
xx
Gasket Kit-External (Not shown) MTD-951-10661B
...
xx
Carburetor Repair Kit - HAUYI (Not shown) MTD-951-14050
...
xx
Carburetor Repair Kit - DENI (Not shown) MTD-951-12712
...
xx
complete engine (Not shown) MTD-952Z165-WU
...
xx
COMPLETE ENGINE 208cc Electric Start Unit, (not shown) MTD-952Z670-WUB
...
...
...
