MTD OHV Engines 161-JWA Engine

Model: 161-JWA Engine

Save
 Part Not Listed?Part Not Listed?
product name

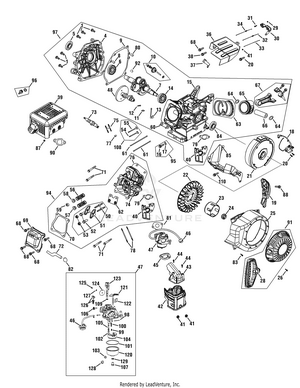

Engine Assembly 161-JWA

...
...
1
Bolt M6×28 MTD-710-04931
...
1
Bolt M6×28 Furnish 951-10950A, Short Block Assembly MTD-710-04931
...
2
O-Ring Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
2
O-Ring Furnish 951-10952A, Gasket Kit External MTD-NA
...
4
Crankcase Cover Furnish 951-11095, Crankcase Cover Kit MTD-NA
...
4
Crankcase Cover Furnish 951-10950A, Short Block Assembly MTD-NA
...
5
Oil Seal Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
5
Oil Seal Furnish 951-10950A, Short Block Assembly MTD-NA
...
6
Bearing Furnish 951-11096, Crankshaft Kit MTD-NA
...
6
Bearing Furnish 951-10950A, Short Block Assembly MTD-NA
...
7
Crankshaft Assembly Furnish 951-11096, Crankshaft Kit MTD-NA
...
7
Crankshaft Assembly Furnish 951-10950A, Short Block Assembly MTD-NA
...
8
DOWEL PIN 9 X 14 MTD-715-04096A
...
8
DOWEL PIN 9 X 14 Furnish 951-10950A, Short Block Assembly MTD-715-04096A
...
9
Crankcase Cover Gasket Furnish 951-11095, Crankcase Cover Kit MTD-NA
...
9
Crankcase Cover Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
9
Crankcase Cover Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
10
Governor Assembly Furnish 951-10950A, Short Block Assembly MTD-NA
...
11
O-Ring, 5.2 x 1.9 Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
11
O-ring Gov. Shaft Furnish 951-10950A, Short Block Assembly MTD-NA
...
12
Cotter Pin MTD-714-04078
...
12
Cotter Pin Furnish 951-10950A, Short Block Assembly MTD-714-04078
...
13
Governor Arm Shaft Furnish 951-10950A, Short Block Assembly MTD-NA
...
14
Bearing Furnish 951-11096, Crankshaft Kit MTD-NA
...
14
Bearing Furnish 951-10950A, Short Block Assembly MTD-NA
...
14
Bearing Furnish 951-11097, Crankcase Kit MTD-NA
...
15
Crankcase Complete Furnish 951-10950A, Short Block Assembly MTD-NA
...
15
Crankcase Complete Furnish 951-11097, Crankcase Kit MTD-NA
...
16
Oil Drain Plug Bolt MTD-710-04906
...
16
Oil Drain Plug Bolt Furnish 951-10950A, Short Block Assembly MTD-710-04906
...
16
Oil Drain Plug Bolt Furnish 951-10370, Oil Drain Plug Assembly MTD-710-04906
...
17
FLAT WASHER MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10951A, Gasket Kit Complete MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10952A, Gasket Kit External MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10950A, Short Block Assembly MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10370, Oil Drain Plug Assembly MTD-736-04440A
...
18
Ignition Coil MTD-951-10958
...
19
Flywheel Baffle MTD-951-11102
...
20
Flange Bolt MTD-710-04919
...
21
Flywheel MTD-951-10908
...
22
Cooling Fan MTD-951-10910
...
23
Starter Cup MTD-951-10911
...
24
Flywheel Nut M14 MTD-712-04287
...
25
Blower Housing MTD-951-11107
...
26
Flange Bolt MTD-710-04914
...
28
Recoil Starter Handle MTD-731-05696
...
29
Nut M6 MTD-712-05015
...
30
Governor Arm Bracket MTD-951-11106
...
31
Bolt MTD-710-04908
...
32
Throttle Return Spring MTD-951-10954
...
33
Governor Rod MTD-951-11152
...
34
Governor Return Spring MTD-951-10953
...
36
Cover Shield MTD-951-11103
...
37
Governor Spring Bracket MTD-951-11104
...
38
Flange Bolt MTD-710-04921
...
39
Muffler Assembly MTD-951-10901
...
40
Carburetor Insulator Plate Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
40
Carburetor Insulator Plate Furnish 951-10950A, Short Block Assembly MTD-NA
...
41
Nut M6 MTD-712-05015
...
42
Intake Heater Box Base MTD-951-10962
...
43
Intake Heater Box MTD-951-10961
...
44
Bolt MTD-710-04913
...
45
Carburetor Gasket, Heater Box Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
45
Heat Pipe Intake Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
46
PRIMER MTD-951-10639B
...
46
PRIMER Furnish 951-10639, Carburetor Assembly MTD-951-10639B
...
47
CARBURETOR ASSEMBLY MTD-951-10956A
...
47
CARBURETOR ASSEMBLY (Incl. Ref. No. 46, 98-107, 109, 120-129) MTD-951-10956A
...
48
Camshaft Assembly Furnish 951-10950A, Short Block Assembly MTD-NA
...
50
Pivot Bolt MTD-710-04902
...
50
Pivot Bolt Furnish 951-10949A, Cylinder Head Assembly MTD-710-04902
...
51
Rocker Arm Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
51
Rocker Arm Furnish 753-06132 Push Rod-Rocker Arm Kit MTD-NA
...
52
Valve Adjusting Nut MTD-751-11123
...
52
Valve Adjusting Nut Furnish 951-10949A, Cylinder Head Assembly MTD-751-11123
...
53
Pivot Locking Nut MTD-751-11124
...
53
Pivot Locking Nut Furnish 951-10949A, Cylinder Head Assembly MTD-751-11124
...
54
Intake Valve Furnish 951-10912, Valve Kit MTD-NA
...
55
Exhaust Valve Furnish 951-10912, Valve Kit MTD-NA
...
56
Valve Spring Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
57
Intake Valve Spring Seat Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
58
Exhaust Valve Spring Seat Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
59
Exhaust Valve Adjuster Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
60
Valve Lifter Furnish 951-10950A, Short Block Assembly MTD-NA
...
61
Push Rod Kit MTD-951-12614
...
61
Push Rod Kit Furnish 951-10950A, Short Block Assembly MTD-951-12614
...
62
Push Rod Guide Plate Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
62
Push Rod Guide Plate Furnish 753-06132 Push Rod-Rocker Arm Kit MTD-NA
...
63
Piston Ring Set - Oil Furnish 951-10950A, Short Block Assembly MTD-NA
...
64
Piston Pin Clip Furnish 951-10950A, Short Block Assembly MTD-NA
...
65
Piston Furnish 951-10950A, Short Block Assembly MTD-NA
...
66
Piston Pin Furnish 951-10950A, Short Block Assembly MTD-NA
...
67
Connecting Rod Complete Furnish 951-10950A, Short Block Assembly MTD-NA
...
68
Bolt MTD-710-04916
...
69
Valve Cover MTD-951-11054B
...
69
Valve Cover Furnish 951-11063A, Valve Cover Kit MTD-951-11054B
...
70
Head Cover Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
70
Head Cover Gasket Furnish 951-10952A, Gasket Kit External MTD-NA
...
70
Head Cover Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
70
Valve Cover Gasket Furnish 951-11063A, Valve Cover Kit MTD-NA
...
70
Head Cover Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
71
Bolt MTD-710-04922
...
72
Breather Hose MTD-731-07059
...
73
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
74
Cylinder Head - Complete Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
75
Muffler Stud Assembly MTD-951-10657
...
76
Cylinder Head Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
76
Cylinder Head Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
76
Cylinder Head Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
77
Dowel Pin 10×16 MTD-715-04108
...
77
Dowel Pin 10×16 Furnish 951-10949A, Cylinder Head Assembly MTD-715-04108
...
78
Carburetor Studs MTD-710-04909
...
79
Carburetor Insulator Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10952A, Gasket Kit External MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
80
Dowel Pin, 9 x 14 MTD-715-04089
...
80
Dowel Pin, 9 x 14 Furnish 951-10950A, Short Block Assembly MTD-715-04089
...
81
Carburetor Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
81
Carburetor Gasket Furnish 951-10952A, Gasket Kit External MTD-NA
...
82
Hose Clamp MTD-726-04101
...
83
Bolt MTD-710-04916
...
84
Oil Seal, 22 x 35 x 7 Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
84
Oil Seal Furnish 951-10950A, Short Block Assembly MTD-NA
...
84
Oil Seal Furnish 951-11097, Crankcase Kit MTD-NA
...
85
Cylinder Baffle MTD-951-11105
...
87
Nut MTD-712-04210
...
88
Flange Bolt MTD-710-04918
...
90
Muffler Gasket MTD-951-10959
...
90
Muffler Gasket Furnish 951-10951A, Gasket Kit Complete MTD-951-10959
...
90
Muffler Gasket Furnish 951-10952A, Gasket Kit External MTD-951-10959
...
90
Muffler Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-951-10959
...
90
Muffler Gasket Furnish 951-10950A, Short Block Assembly MTD-951-10959
...
91
Recoil Starter Assembly MTD-951-10955
...
92
WOODRUFF KEY MTD-751P10307A
...
92
WOODRUFF KEY Furnish 951-11096, Crankshaft Kit MTD-751P10307A
...
92
WOODRUFF KEY Furnish 951-10950A, Short Block Assembly MTD-751P10307A
...
94
Cylinder Head Assembly (Incl. Ref. No. 40, 50-53, 56-59, 62, 70, 74, 76, 77, 79, 90, 108) MTD-951-10949A
...
95
Oil Drain Plug and Washer Assembly (Incl. Ref. No. 16-17) MTD-951-10370
...
96
Dipstick Assembly MTD-951-10957
...
96
Dipstick Assembly Furnish 951-11095, Crankcase Cover Kit MTD-951-10957
...
96
Dipstick Assembly Furnish 951-10950A, Short Block Assembly MTD-951-10957
...
97
Short Block Assembly (Incl. Ref. No. 1, 4-17, 40, 45, 48, 60, 61, 63-67, 70, 76, 79, 80, 84, 90, 92, 96) MTD-951-10950A
...
98
Float Pin Furnish 951-10948, Carburetot Kit Major MTD-NA
...
98
Float Pin Furnish 951-10639, Carburetor Assembly MTD-NA
...
99
Needle Valve Spring Furnish 951-10948, Carburetot Kit Major MTD-NA
...
99
Needle Valve Spring Furnish 951-10639, Carburetor Assembly MTD-NA
...
100
Needle Valve Furnish 951-10948, Carburetot Kit Major MTD-NA
...
100
Needle Valve Furnish 951-10639, Carburetor Assembly MTD-NA
...
101
Bowl Gasket Furnish 951-10948, Carburetot Kit Major MTD-NA
...
101
Bowl Gasket Furnish 951-10639, Carburetor Assembly MTD-NA
...
102
Main Jet Furnish 951-10948, Carburetot Kit Major MTD-NA
...
102
Main Jet Furnish 951-10639, Carburetor Assembly MTD-NA
...
103
Fuel Drain Plug Gasket Furnish 951-10948, Carburetot Kit Major MTD-NA
...
103
Fuel Drain Plug Gasket Furnish 951-10639, Carburetor Assembly MTD-NA
...
104
Float Furnish 951-10948, Carburetot Kit Major MTD-NA
...
104
Float Furnish 951-10639, Carburetor Assembly MTD-NA
...
105
Main Nozzle Furnish 951-10948, Carburetot Kit Major MTD-NA
...
105
Main Nozzle Furnish 951-10639, Carburetor Assembly MTD-NA
...
106
Idle Speed Adjusting Screw Furnish 951-10948, Carburetot Kit Major MTD-NA
...
106
Idle Speed Adjusting Screw Furnish 951-10639, Carburetor Assembly MTD-NA
...
107
O-Ring- Main Cup Bolt Furnish 951-10948, Carburetot Kit Major MTD-NA
...
107
O-Ring- Main Cup Bolt Furnish 951-10639, Carburetor Assembly MTD-NA
...
108
Valve Kit (Incl. Ref. No. 54-55) MTD-951-10912
...
108
Valve Kit Furnish 951-10949A, Cylinder Head Assembly MTD-951-10912
...
109
Throttle Shaft Dust Seal Furnish 951-10948, Carburetot Kit Major MTD-NA
...
109
Throttle Shaft Dust Seal Furnish 951-10639, Carburetor Assembly MTD-NA
...
110
Bolt M6×12 MTD-710-04915
...
120
Fuel Bowl Furnish 951-10639, Carburetor Assembly MTD-NA
...
121
Choke Shaft Furnish 951-10639, Carburetor Assembly MTD-NA
...
122
Choke Plate Furnish 951-10639, Carburetor Assembly MTD-NA
...
123
Throttle Shaft Furnish 951-10639, Carburetor Assembly MTD-NA
...
124
Throttle Plate Furnish 951-10639, Carburetor Assembly MTD-NA
...
125
Screw Furnish 951-10639, Carburetor Assembly MTD-NA
...
126
Idle Jet Assembly Furnish 951-10639, Carburetor Assembly MTD-NA
...
127
Lock Washer Furnish 951-10639, Carburetor Assembly MTD-NA
...
128
Drain Bolt Furnish 951-10639, Carburetor Assembly MTD-NA
...
129
Fuel Bowl Gasket Furnish 951-10639, Carburetor Assembly MTD-NA
...
xx
Ignition Key Not Shown MTD-951-10630
...
xx
Carburetor Kit - Major Not Shown (Incl. Ref. No. 98-107, 109) MTD-951-12623
...
xx
Gasket Kit - Complete Not Shown (Incl. Ref. No. 2, 5, 9, 11, 17, 45, 70, 76, 79, 81, 84, 90) MTD-951-10951A
...
xx
Gasket Kit - External Not Shown (Incl. Ref. No. 2, 17, 70, 79, 81, 90) MTD-951-10952A
...
xx
Valve Cover Kit Not Shown (Incl. Ref. No. 69-70) MTD-951-12626
...
xx
Crankcase Cover Kit Not Shown (Incl. Ref. No. 4, 9, 96) MTD-951-11095
...
xx
Crankshaft Kit Not Shown (Incl. Ref. No. 6, 7, 14, 92) MTD-951-11096
...
xx
Crankcase Kit Not Shown (Incl. Ref. No. 14, 15, 84) MTD-951-11097
...
xx
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
xx
Engine Not Shown MTD-952Z161-JWA-12
...
...
...
Processing
