MTD OHV Engine 6X70MUA 196cc Engine

Model: 6X70MUA 196cc Engine

Save Part Not Listed?
product name

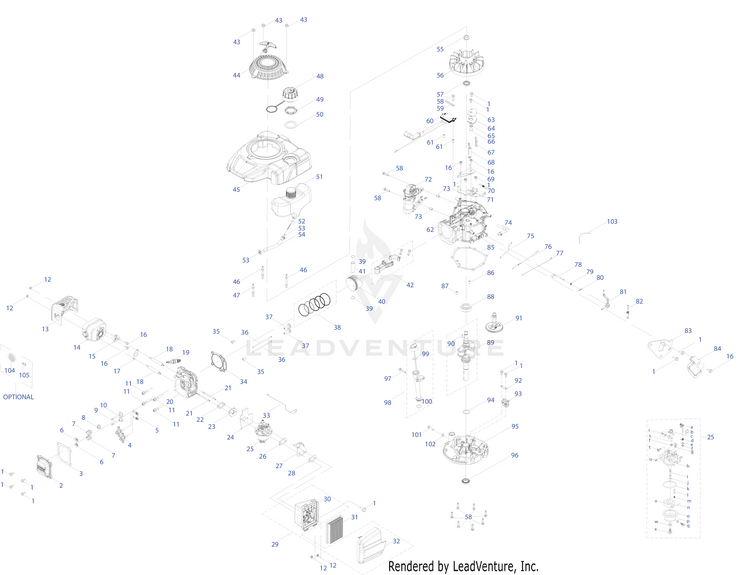

6X70MUA General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-951-11551
...
4
ROCKER ARM MTD-951-11606A
...
5
PUSH ROD GUIDE MTD-951-16027
...
6
INTAKE VALVE SPRING RETAINER MTD-951-12000
...
7
VALVE SPRING MTD-951-12116
...
8
INTAKE VALVE SEAL MTD-921-04237A
...
9
EXHAUST VALVE MTD-951-15669A
...
10
INTAKE VALVE MTD-751P14099A
...
11
SCREW M8 x 54 GR10 MTD-710-06200
...
12
HEX NUT MTD-712-05015
...
13
MUFFLER SHIELD MTD-951-15566
...
14
MUFFLER ASSEMBLY MTD-951-14429A
...
15
CHOKE TEMP CONTROL THERMOSTAT MTD-951-14428A
...
16
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
17
MUFFLER GASKET MTD-951-14427A
...
18
STUD M6-1 x 95 MTD-710-05094
...
19
SPARK PLUG MTD-951-14437
...
19
GENUINE FACTORY PARTS® Walk Spark Plug 951-14437 Retail Packaged Part MTD-490-250-F014
...
20
CYLINDER HEAD MTD-951-16028
...
21
CARBURETOR STUD-M6 x 87 MTD-951-14425
...
22
CARBURETOR INSULATOR GASKET MTD-951-11254
...
23
CARBURETOR INSULATOR MTD-951-15671A
...
24
CARBURETOR GASKET MTD-921-04942
...
25
CARBURETOR ASSEMBLY HY-5X70A MTD-951-05538
...
26
CHOKE TEMP CONTROL BRACKET GSKT MTD-951-14422
...
27
AIR FILTER BRACKET MTD-908-05265
...
28
AIR FILTER BASE GASKET MTD-951-14419A
...
29
AIR FILTER ASSEMBLY MTD-931-05566
...
30
AIR FILTER HOUSING BASE MTD-931-13118A
...
31
AIR FILTER MTD-951-15245
...
31
GENUINE FACTORY PARTS® Air Filter (Square Paper Panel) 159cc& 196cc 951-15245 Retail Packaged Part MTD-490-200-F065
...
32
AIR FILTER COVER MTD-931-13119A
...
33
TEMPERATURE CONTROL LINKAGE MTD-951-15672
...
34
CYLINDER HEAD GASKET MTD-921-04257
...
35
DOWEL PIN MTD-715-04108
...
36
PUSH ROD MTD-951-16026
...
37
TAPPET MTD-951-14432A
...
38
PISTON RING SET MTD-951-14317A
...
39
PISTON PIN SNAP RING MTD-951-11632
...
40
PISTON ASSEMBLY MTD-951-15675
...
41
PISTON PIN MTD-951-11633
...
42
CONNECTING ROD ASSEMBLY MTD-951-05539
...
43
ACORN NUT M6-1 MTD-712-04276A
...
44
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
45
ENGINE SHROUD W/O IGNITION SWITCH MTD-631-05436A
...
46
STARTER/SHROUD REAR STUD MTD-951-14397
...
47
STARTER SHROUD FRONT STUD M6X74 MTD-951-14819
...
48
FUEL CAP W/TETHER MTD-951-15255A
...
49
FUEL TANK NUT MTD-931-10290A
...
50
FUEL TANK GROMMET MTD-951-14406A
...
51
FUEL TANK MTD-931-12771A
...
52
FUEL FILTER MTD-951-12296A
...
53
CARBURETOR HOSE CLAMP MTD-951-11700A
...
54
FUEL HOSE MTD-735-05053A
...
55
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
56
FLYWHEEL ASSEMBLY MTD-951-15491
...
57
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
58
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
59
FLEXIBLE CLAMP MTD-951-11622A
...
60
IGNITION COIL ASSEMBLY MTD-925-07167
...
61
IGNITION COIL SPACER MTD-950-06314
...
62
CRANKCASE MTD-951-16030
...
63
BREATHER COVER PLATE MTD-951-14404
...
64
BREATHER GASKET MTD-951-14405
...
65
BREATHER VALVE SPRING MTD-732-04718
...
66
BREATHER VALVE MTD-951-11614
...
67
BREATHER SCREEN MTD-951-11730
...
68
AIR VANE MTD-951-11529A
...
69
AIR VANE BRACKET MTD-951-14719
...
70
ENGINE BRAKE SPRING MTD-932-05566A
...
71
ENGINE BRAKE ASSEMBLY MTD-951-05533
...
72
ELECTRIC STARTER ASSEMBLY MTD-951-05534
...
73
DOWEL PIN MTD-715-04088A
...
74
BREATHER HOSE ASSEMBLY MTD-951-15678
...
75
CHOKE LINKAGE MTD-951-15679
...
76
THROTTLE SPRING MTD-951-11258A
...
77
THROTTLE LINKAGE MTD-951-15677
...
78
GOVERNOR ARM SHAFT MTD-951-11621
...
79
OIL SEAL MTD-951-11902A
...
80
COTTER PIN MTD-714-04078
...
81
GOVERNOR ARM ASSEMBLY MTD-951-05160A
...
82
GOVERNOR SPRING MTD-951-15680
...
83
COMPONENT BRACKET MTD-908-05254
...
84
GOVERNOR SHIELD MTD-908-05255
...
85
CRANKCASE COVER GASKET MTD-951-15681
...
86
DOWEL PIN 9 X 14 MTD-715-04096A
...
87
DOWEL PIN 9 X 14 MTD-715-04096A
...
88
BEARING MTD-951-11369
...
89
CRANKSHAFT ASSEMBLY MTD-951-15684
...
90
WOODRUFF KEY MTD-751P10307A
...
91
CAMSHAFT ASSEMBLY MTD-951-15795
...
92
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609
...
93
GEAR GOVERNOR MTD-951-05336A
...
94
THRUST WASHER MTD-736-04491
...
95
CRANKCASE COVER MTD-951-15685
...
96
LOWER CRANKSHAFT OIL SEAL MTD-951-15686A
...
97
BOLT M6-1 x 35 GR8.8 MTD-710-04980
...
98
OIL DIPSTICK MTD-951-05540A
...
99
O-RING MTD-921-04795A
...
100
O-RING MTD-921-04697A
...
101
OIL DRAIN PLUG MTD-710-04906
...
102
FLAT WASHER MTD-736-04440A
...
103
CABLE TIE - 3 x 150 MTD-725-06031
...
104
SPARK ARRESTOR MTD-951-10351A
...
105
SCREW M3.5 x 9.5 MTD-710-04983
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Throttle Shaft MTD-NA
...
d
Choke Return Spring MTD-NA
...
e
WASHER MTD-736-04556
...
f
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
g
Idle Jet Assembly MTD-NA
...
h
Carburetor Body MTD-NA
...
i
Emulsion Tube MTD-NA
...
j
Main Jet MTD-NA
...
k
FUEL BOWL O-RING MTD-951-11589
...
l
NEEDLE VALVE MTD-793P00165A
...
m
NEEDLE VALVE SPRING MTD-732P05251A
...
n
FLOAT PIN MTD-711-06043A
...
o
FLOAT BOWL MTD-908-05001
...
p
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
q
FUEL DRAIN PLUG MTD-710-04938
...
r
Screw M3×6 Throttle Plate MTD-NA
...
s
Throttle Plate MTD-NA
...
t
Idle Speed Adjusting Screw MTD-NA
...
u
Idle Mixture Screw MTD-NA
...
v
FLOAT MTD-731P09132A
...
w
FUEL BOWL GASKET MTD-951-11348A
...
x
BOLT M8-1 x 10 MTD-710-04945
...
xx
COMPLETE ENGINE 196cc MTD-952Z6X70MUA
