MTD OHV Engine 675-QUA 243cc Engine

Model: 675-QUA 243cc Engine

Save Part Not Listed?
product name

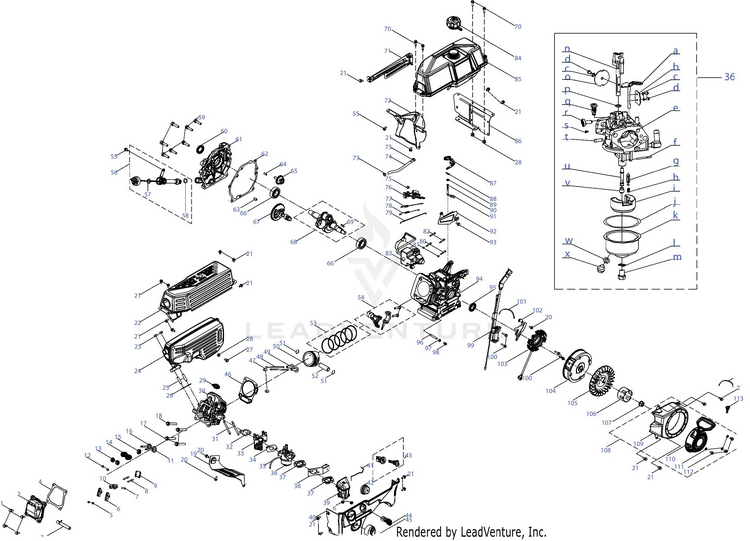

675-QUA General Assembly

...
...
1
Bolt, M6x16 MTD-710-04968
...
2
VALVE COVER MTD-908-05028
...
3
Breather Hose MTD-951-15045
...
4
Gasket, Valve Cover MTD-921-04673
...
5
Nut, M6 MTD-712-05015
...
6
Rocker Arm Assembly MTD-951-15533
...
7
Rocker Arm Shaft MTD-911-06214
...
8
Bolt MTD-910-06092
...
9
PUSH ROD GUIDE MTD-908-05066
...
10
Rocker Arm Seat MTD-951-14373
...
11
INTAKE VALVE MTD-751P14099A
...
12
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
13
Valve Spring Seat MTD-951-12003
...
14
VALVE SPRING MTD-751P12004A
...
15
Intake Valve Seal MTD-951-11894
...
16
EXHAUST VALVE MTD-751P14100A
...
17
Bolt, M10x1.25x65 MTD-710-06065
...
18
Bolt, M10x1.25x70 MTD-710-06291
...
19
Shroud MTD-951-11113
...
20
Bolt, M6x12 MTD-710-04915
...
21
Bolt, M6x12 MTD-910-06277
...
22
Muffler Guard MTD-908-05112A
...
23
Nut, M8 MTD-712-04214
...
24
Muffler MTD-951-05263
...
25
Stud, M8x36 MTD-710-05001
...
26
MUFFLER GASKET MTD-751P11289A
...
27
Bolt, M6x20 MTD-710-05192
...
28
Nut, M6 MTD-712-05015
...
29
Spark Plug MTD-951-10292A
...
30
CYLINDER HEAD (Bare) MTD-919-05073
...
31
Stud, M6x92 MTD-710-05093
...
32
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
33
INSULATOR MTD-751P11568A
...
34
CARBURETOR GASKET MTD-751P12005B
...
35
Fuel Hose, 3.2x6.5x150 MTD-951-15535
...
36
Carburetor MTD-951-05118B
...
37
CARBURETOR GASKET MTD-751P11897B
...
38
Choke Controller Assembly MTD-951-14869
...
39
Heater Box MTD-951-14870
...
40
Control Panel MTD-951-14952
...
41
Choke Linkage MTD-951-10640
...
42
PRIMER MTD-951-10639B
...
43
ENGINE KEY SWITCH ASSEMBLY MTD-951-15022A
...
44
THROTTLE LEVER KNOB MTD-751P10757A
...
45
Choke Lever MTD-951-14838
...
46
Gasket, Cylinder Head MTD-921-04674
...
47
Pin, 12x16 MTD-(NOT SERVICED)
...
48
Push Rod MTD-951-14370
...
49
Tappet MTD-951-14470
...
50
Piston MTD-919-05074
...
51
PISTON PIN SNAP RING MTD-951-11632
...
52
PISTON PIN MTD-951-11633
...
53
PISTON RING SET 75MM MTD-951-14471A
...
54
CONNECTING ROD MTD-751P11573A
...
55
Bolt, M6x16 MTD-910-06278
...
56
Dipstick MTD-931-05255
...
57
O-RING MTD-921-04663A
...
58
O-RING 15.8 x 2.5 MTD-951-11577
...
59
Bolt, M8x32 MTD-710-04932
...
60
OIL SEAL MTD-751P11368A
...
61
Crankcase Cover MTD-951-14875
...
62
CRANKCASE GASKET MTD-751P11371B
...
63
DOWEL PIN 9 X 14 MTD-715-04096A
...
64
DOWEL PIN 9 X 14 MTD-715-04096A
...
65
GOVERNOR GEAR MTD-951-15534
...
66
Bearing, 6205 MTD-951-15055
...
67
Camshaft MTD-951-05058
...
68
Crankshaft MTD-951-05059
...
69
WOODRUFF KEY MTD-751P10307A
...
70
Bolt, M6x22 MTD-951-14885
...
71
Fuel Tank Insulator MTD-951-14997A
...
72
Front Bracket, Fuel Tank MTD-951-14872
...
73
CARBURETOR HOSE CLAMP MTD-951-11700A
...
74
Fuel Hose, 6.3x12.5x133 MTD-951-15536
...
75
Bolt, M6x12 MTD-710-05103
...
76
Governor Gear Bracket Assembly MTD-951-14881
...
77
GOVERNOR SPRING MTD-751P14882A
...
78
THROTTLE SPRING MTD-751P10664A
...
79
THROTTLE LINKAGE MTD-751P10665A
...
80
Bolt, M6x32 MTD-710-05182
...
81
DOWEL PIN MTD-715-04088A
...
82
Screw, M4x55 MTD-910-06279
...
83
Electric Starter MTD-951-10645B
...
84
Fuel Cap MTD-951-14884
...
85
Fuel Tank MTD-951-14883
...
86
Fuel Tank Base MTD-951-14880
...
87
Governor Lever MTD-951-14089
...
88
Cotter Pin MTD-714-04078
...
89
OIL SEAL MTD-951-11902A
...
90
O-Ring, 5.2x1.9 MTD-736-04461
...
91
Governor Gear Shaft MTD-951-14053
...
92
Choke Plate MTD-951-11110
...
93
Bolt, M6x10 MTD-710-04914
...
94
Crankcase MTD-919-05075
...
95
OIL SEAL MTD-751P11370A
...
96
OIL DRAIN PIPE MTD-951-11350A
...
97
FLAT WASHER MTD-736-04440A
...
98
Earth Bolt MTD-710-04906
...
99
Ignition Module MTD-951-15275
...
100
Bolt, M6x25 MTD-710-04919
...
101
Tape, L=150mm MTD-725-06031
...
102
Lower Shield MTD-951-11109
...
103
Charging Coil MTD-951-15806
...
104
Flywheel MTD-951-15540A
...
105
Cooling Fan MTD-951-15025
...
106
Starter Cup MTD-951-14887
...
107
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
108
Recoil Starter MTD-951-05424
...
109
Blower Housing MTD-951-15537
...
110
RECOIL STARTER MTD-951-15538A
...
111
FLAT WASHER MTD-736-04455B
...
112
Bolt, M6x10 MTD-710-06280
...
113
Stop Switch Key MTD-951-10630
...
36
Carburetor MTD-951-05118B
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
LOCK WASHER MTD-736-04638A
...
d
Screw, M3x6 MTD-NA
...
e
Carburetor Body MTD-NA
...
f
Float Pin MTD-NA
...
g
Needle Valve MTD-NA
...
h
Needle Valve Spring MTD-NA
...
i
FLOAT MTD-731P09132A
...
j
O-Ring, Float Bowl MTD-951-11589
...
k
FLOAT BOWL MTD-908-05000
...
l
FUEL BOWL GASKET MTD-951-11348A
...
m
Bolt MTD-710-04945
...
n
Throttle Shaft MTD-NA
...
o
Throttle Plate MTD-NA
...
p
Gasket MTD-NA
...
q
Idle Jet MTD-NA
...
r
Idle Adjusting Screw MTD-NA
...
s
Mixture Screw MTD-NA
...
t
Primer Line MTD-937-05005
...
u
Nozzle Tube MTD-NA
...
v
Main Jet MTD-NA
...
w
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
x
FUEL DRAIN PLUG MTD-710-04938
...
xx
COMPLETE ENGINE 243cc MTD-952Z675-QUB
