MTD Mastercut Mdl 251-431-129/922 Edger

Model: Mastercut Mdl 251-431-129/922

Save Part Not Listed?
product name

Parts

...
...
1
SCREW #10-24 x 1.25 MTD-710-1156
...
2
HOUSING-SWITCH-LOWER T-HNDL 9 MTD-725-1584
...
3
SWITCH-TRIGGER BLACK MTD-725-1455
...
4
Cord Set (2 Prong) MTD-729-0310
...
5
SCREW-PAN HD MTD-710-1153
...
6
Upper Tube MTD-750-0831
...
7
Lower Tube MTD-750-0834
...
8
Hex Nut #10-24 Thd. MTD-712-0161
...
9
CORD ASSEMBLY MTD-629-0004
...
10
Rear Support-R.H. MTD-731-1232
...
xx
Hex Bolt 5/16-18 x 2.25n Lg. MTD-710-0395
...
12
Sleeve MTD-750-0830
...
13
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
14
Push Cap 3/8" Rod MTD-726-0100
...
15
REAR WHEEL (Model 411 Only.) MTD-734-1692
...
xx
REAR WHEEL (Model 431 Only.) MTD-734-1694
...
16
Rear Axle (Model 411 Only.) MTD-750-0832
...
xx
Rear Axle (Model 431 Only.) MTD-750-0836
...
17
WING NUT MTD-720-0242
...
18
Threaded Rod MTD-747-0788
...
19
Motor Ass y. (Model 411 Only.) MTD-624-0004
...
xx
MOTOR & GE (Model 431 Only.) MTD-624-0005
...
20
Motor Hsg.-Upper (Model 411 Only.) MTD-724-0178
...
xx
Motor Hsg.-Upper (Model 431 Only.) MTD-724-0180
...
21
ADAPTOR-FAN ASSEMBLY (Fan) MTD-748-0344
...
22
BLADE-6.75IN(918 EDGER) (Model 411 Only.) MTD-742-0555
...
xx
BLADE-7.75IN (922 (Model 431 Only.) MTD-742-0556
...
23
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
24
Screw #8 x 1" Lg. MTD-710-1160
...
25
HEX SCREW 1/4-20X1 (Model 411 Only.) MTD-910-0886
...
26
Guide Wheel (Model 411 Only.) MTD-734-1691
...
27
HEX NUT 1/4-20 (Model 411 Only.) MTD-912-0287
...
28
L-Wash. 1/4" I.D. (Model 411 Only.) MTD-936-0329
...
29
Wing Nut 1/4-20 Thd. (Model 411 Only.) MTD-712-0403
...
30
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
31
Scr. #8 x 2.75" Lg. MTD-710-1159
...
32
Edge Guide (Model 411 Only.) MTD-787-0113
...
xx
GUIDE-EDGE (Model 431 Only.) MTD-787-0127
...
33
Flange Nut MTD-712-0405
...
34
Front Support-L.H. (Model 431 Only.) MTD-731-1233
...
35
SPRING-ACTUATOR (S (Model 431 Only.) MTD-732-0684
...
36
Shaft-Release Button (Model 431 Only.) MTD-711-0857
...
37
Fork-Front Wheel (Model 431 Only.) MTD-731-1235
...
38
PUSH NUT (Model 431 Only.) MTD-726-0106
...
39
AXLE-WHEEL (Model 431 Only.) MTD-750-0835
...
40
WHEEL-2 IN (Model 431 Only.) MTD-734-1693
...
41
HOUSING-SWITCH-UPPER T-HNDL90 MTD-725-1585
...
42
Rear Support-L.H. MTD-731-1231
...
xx
Motor Hsg.-Lower (Model 411 Only.) MTD-724-0179
...
xx
Motor Hsg.-Lower (Model 431 Only.) MTD-724-0181
...
44
SUPPORT-FRONT (RH)- 922 EDGER (Model 431 Only.) MTD-731-1234
...
xx
Safety Goggles MTD-723-0400

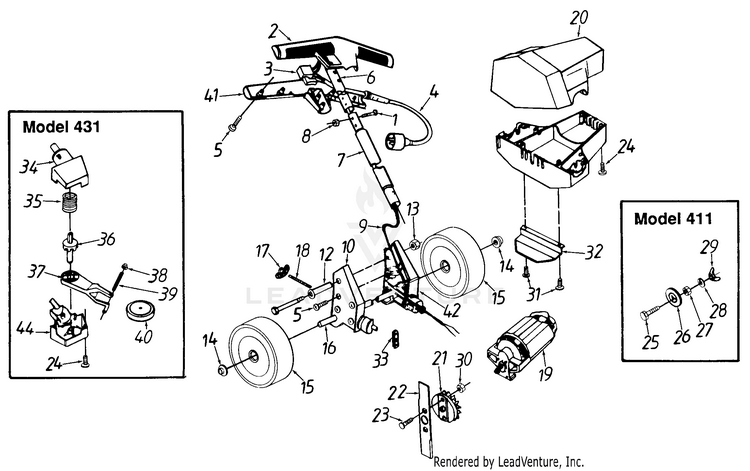

Schematic Image Zoomed
