MTD Mastercut Mdl 251-331-708 Edger

Model: Mastercut Mdl 251-331-708

Save Part Not Listed?

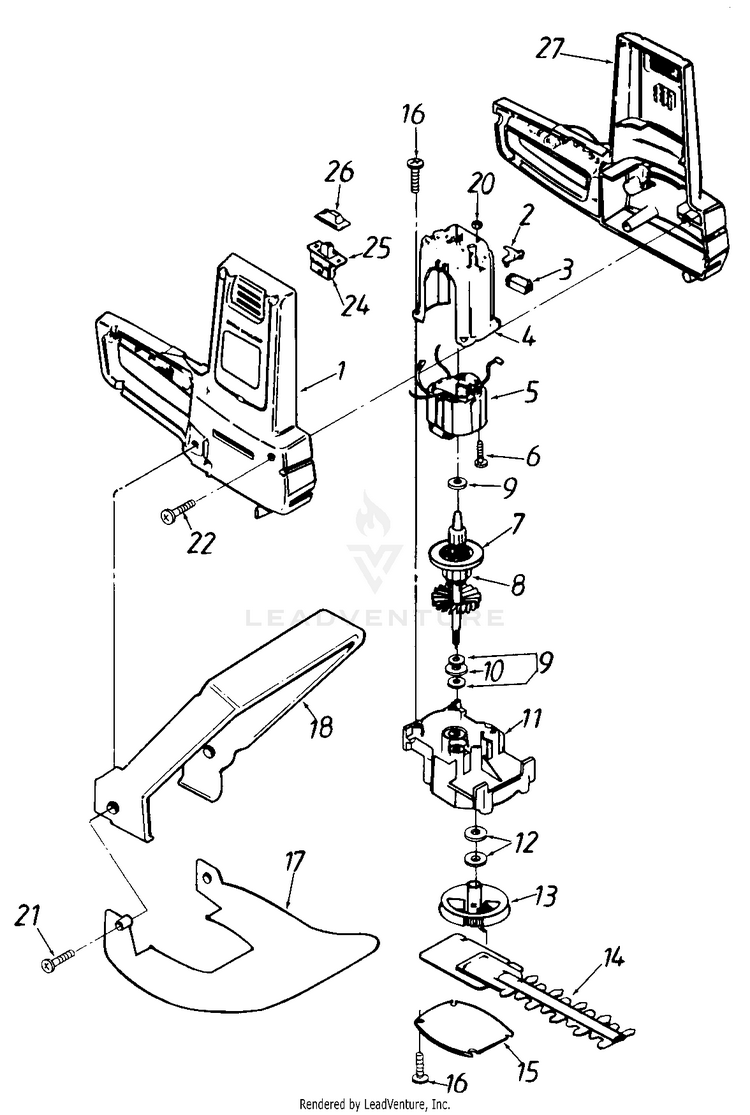

Parts

Motor Housing Cover MTD-724-0183

Clip MTD-724-0187

CORD ASSEMBLY MTD-629-0009

Motor Housing MTD-624-0008

Field Ass'y. (311 & 321 ) MTD-624-0007

Field Ass'y. (331) MTD-624-0011

Screw #8-32 x 1.125" Lg. (311 &321) MTD-706-14374-18

MACHINE SCREW (331) MTD-710-1166

Fan Baffle MTD-721-0276

ARMATURE ASSEMBLY (311 & 321) MTD-624-0006

Armature Ass'y. (331 ) MTD-624-0010

Fl-Wash. .316" I.D. x .5" O.D. MTD-736-0480

Spr.-Wash. .322" I.D. x .49" O.D. MTD-736-0482

Gear Box Ass'y. MTD-618-0012

Thrust Wash. .385" I.D. x .562" MTD-736-0481

Gear Ass'y MTD-617-0001

Blade Ass'y. (311) MTD-642-0102

Blade Ass'y. (321 ) MTD-642-0103

Blade Ass'y. (331) MTD-642-0104

Cover Plate MTD-787-0128

HEX WASH. HD. TAP SCR. #8-32 x 1/2" LG. MTD-710-1112

Shield MTD-731-1237

Handle MTD-749-0837

HEX NUT TOP L-8-32 MTD-712-0143

SCREW 1/4-20 x 1.125 MTD-710-0472

SCREW#8-18 x 1.00 MTD-710-1164

Insulator MTD-721-0275

Switch MTD-725-1589

Switch Cover MTD-720-0247

Motor Housing Support MTD-724-0182

Plug Ass'y. (Not Shown) MTD-629-0001

Model: 1AHF08390
