product name

MTD Mastercut Mdl 251-131-708/131 Edger

Model: Mastercut Mdl 251-131-708/131

Save
 Part Not Listed?Part Not Listed?
product name

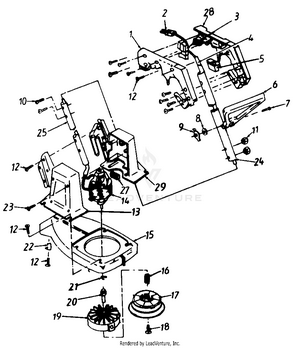

Parts

...
...
1
Handle-Trigger R.H. MTD-725-1580
...
2
Cord Set (2 Prong) MTD-729-0309
...
3
Switch-Trigger MTD-725-1455
...
4
Wiring Harness MTD-629-0013
...
5
Switch-2 Speed MTD-725-1455
...
6
Balance Handle (Incl. Ref. 7, 8, 9) MTD-749-0834
...
7
Hex Bolt 1/4-20 x 2.25" Lg. MTD-710-0501
...
8
Fl-Wash. 1/4" I.D. MTD-736-0142
...
9
Wing Nut 1/4-20 Thd. MTD-712-0403
...
10
Scr. #10-24 x 1.25" (Spec.) MTD-710-1156
...
11
L-Nut #10-24 Thd. MTD-712-0161
...
12
Scr. #8 x 5/8" Lg. (Spec.) MTD-710-1153
...
13
Housing Motor R.H. MTD-724-0176
...
14
Motor MTD-624-0002
...
15
Guard MTD-731-1229
...
16
Spring MTD-732-0684
...
17
Cartridge (w/Line) MTD-706-RC528
...
18
Nylon Scr. 1/4-20 x 5/8" Lg. MTD-710-1158
...
19
Spool Hsg. Ass'y. (Incl. Ref. 20) MTD-743-0105
...
20
Spool Shaft MTD-711-0856
...
21
Retaining Ring MTD-716-0229
...
22
Blade (2 Blades w/Screw) MTD-706-RB501
...
23
Scr. #8 x 1.75" Lg. (Spec.) MTD-710-1157
...
24
Upper Handle Tube MTD-750-0829
...
25
Lower Handle Tube MTD-750-0833
...
27
Insulator MTD-724-0177
...
28
Handle-Trigger (L.H.) MTD-725-1579
...
29
Housing Motor (L.H.) MTD-724-0175
...
...
...
