MTD Mastercut 13AJ795S059 (2012) Lawn Tractor

Model: 13AJ795S059 (2012)

Back To Assemblies

Save Part Not Listed?
product name

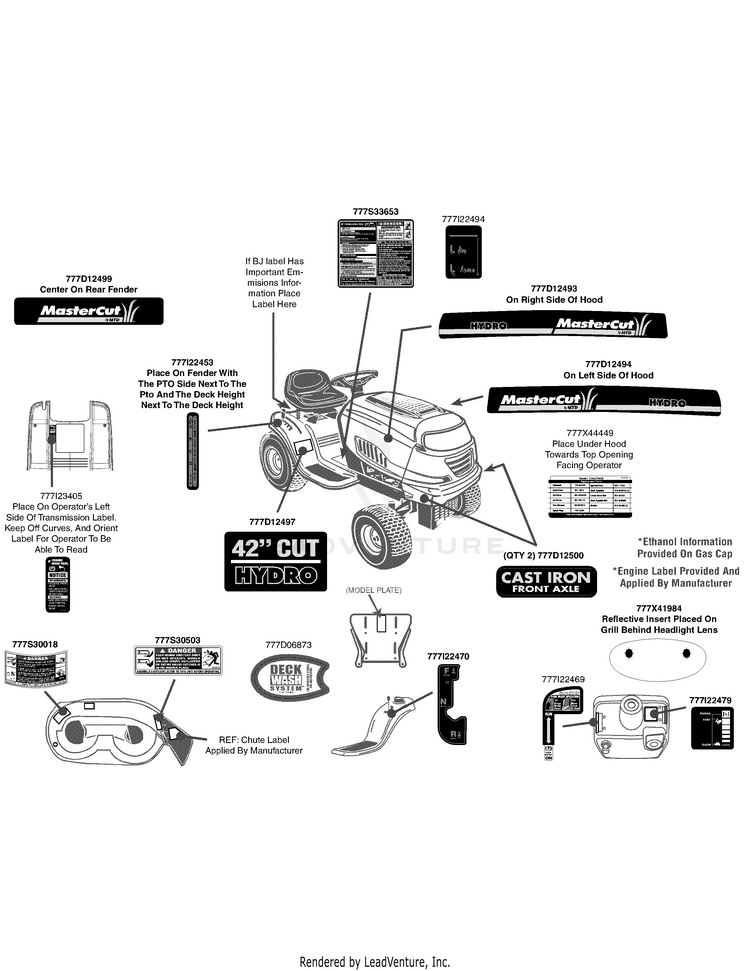

Label Map 13AJ795S059

...
...
777D06873
LBL:RDR:DECK:DK WSH SYSTEM MTD-777D06873
...
777D12493
LABEL-RIDER HOOD MASTERCUT (RH) MTD-777D12493
...
777D12494
LABEL-RIDER HOOD MASTERCUT (LH) MTD-777D12494
...
777D12497
LABEL-RIDER RUNNING BOARD 42" HYDR MTD-777D12497
...
777D12499
LABEL-RIDER (RH) FENDER MASTERCUT MTD-777D12499
...
777D12500
LABEL-RIDER LOWER HOOD CAST IRON MTD-777D12500
...
777I22453
LABEL:RIDER LT-5 F MTD-777I22453
...
777I22469
LABEL: RIDER LT-5 MTD-777I22469
...
777I22470
LBL:RDR:LT-5 FENDER:HYDRO MTD-777I22470
...
777I22479
LBL:RDR:LT-5 NON-AMP THRT CHK MTD-777I22479
...
777I22494
LBL:LT-5 RDR:TRANS RELEASE MTD-777I22494
...
777I22773
LBL:RDR:SECURE WHEEL NOTICE MTD-777I22773
...
777I23405
LABEL-RIDER CAUTION HAND MTD-777I23405
...
777S32491
LABEL:RIDER:SAFETY MTD-777S32491
...
777S33653
LBL:RDR:SFTY:LT5 HYDRO OCR MTD-777S33653
...
777X41984
LBL:RDR:1&5 STYLE:GRILL MTD-777X41984
...
777X44449
LABEL-RIDER PARTS LIST J775S059 MTD-777X44449
