MTD MTDEBV 41ABESPG978, 41ABESPG978 MTDEBV Blower

Model: MTDEBV 41ABESPG978, 41ABESPG978 MTDEBV

Save
 Part Not Listed?Part Not Listed?
product name

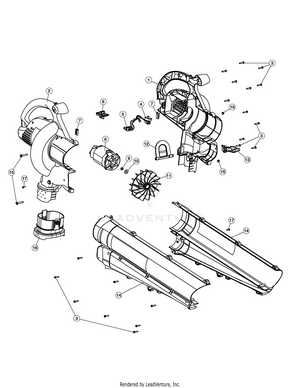

General Assembly

...
...
1
Left Motor Housing MTD-753-04752
...
2
Right Motor Housing MTD-753-04751
...
3
Housing Screw MTD-791-181482
...
4
Switch Assembly MTD-791-182546
...
5
Power Connection Wire Assembly MTD-791-182547
...
6
Switch Lever MTD-791-180509
...
7
Rubber Cushion MTD-791-180503
...
8
Motor Assembly (Incl. Ref No. 9-11) MTD-791-182548
...
9
Spacer MTD-791-182549
...
10
Washer MTD-791-180505
...
11
Impeller MTD-791-182550
...
12
Mode Control Flapper MTD-791-182410
...
13
Mode Control Lever (Incl. Ref No. 3) MTD-791-00050
...
14
Blower/Vac Tube Assembly (Incl. Ref No. 3) MTD-791-00051
...
15
Blower/Vac Tube Mounting Hardware MTD-791-182425
...
16
ADAPTER MTD-791-182417
...
17
Screw MTD-791-181345
...
xx
Cable Tie Not Shown MTD-791-612930
...
xx
Vacuum Bag Assembly Not Shown (Incl. Ref No.16, Vacuum Bag & Cable Tie) MTD-753-04465
...
xx
Shoulder Harness Not Shown MTD-791-682075B
...
xx
Patio Head Not Shown MTD-753-04325
...
...
...
