MTD MS9900 41AS99MS758 41AS99MS758 MS9900 Gas Blower

Model: MS9900 41AS99MS758 41AS99MS758 MS9900

Back To Assemblies

Save Part Not Listed?
product name

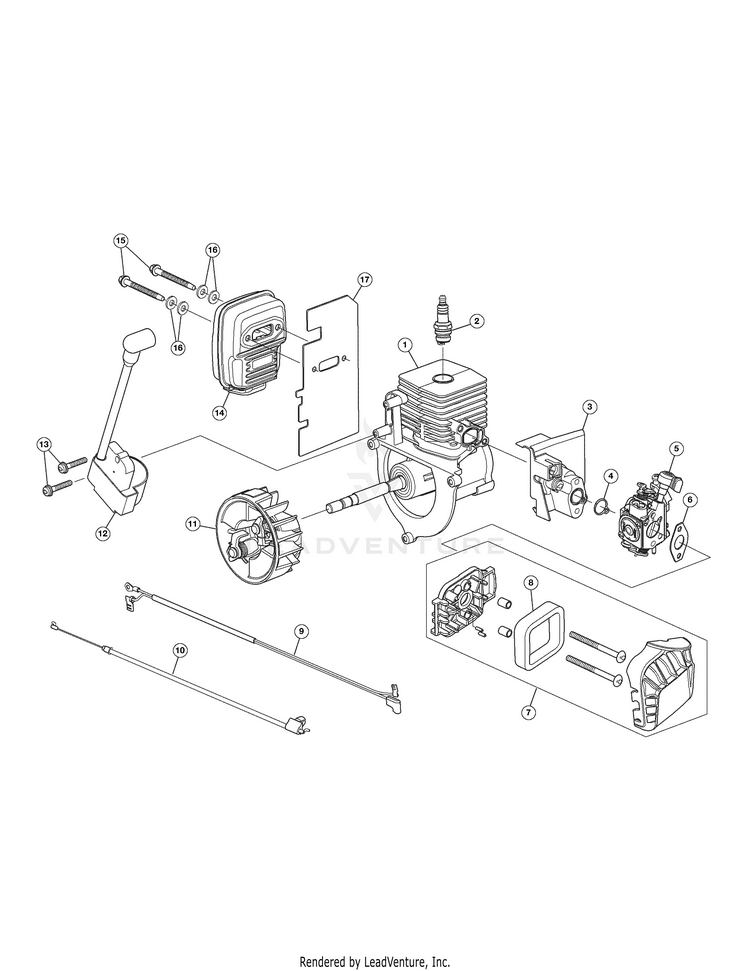

General Assembly

...
...
1
Shortblock Assembly MTD-753-08499
...
2
Spark Plug MTD-753-06847
...
3
Insulator Assembly MTD-753-06189
...
4
O-Ring MTD-753-06185
...
5
Carburetor MTD-753-06288
...
6
Carburetor Gasket MTD-753-06253
...
7
Air Cleaner Assembly MTD-753-08507
...
8
Air Cleaner Filter MTD-791-181757
...
9
Lead Wire MTD-725-06313
...
10
Throttle Cable MTD-746-05226
...
11
Flywheel Assembly MTD-753-08490
...
12
Module Assembly MTD-753-08489
...
13
Screw MTD-710-06301
...
14
Muffler Assembly (Incl. 15, 16 and 17) MTD-753-08488
...
15
Muffler Screws MTD-753-06294
...
16
Washers MTD-791-182568
...
17
Muffler Gasket MTD-721-04801
