MTD MDL 302R Push Walk-Behind Mower

Model: MTD MDL 302R

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
CONTROL HANDIE ASS'Y.-L.H. (302R) MTD-14321
...
2
PLUG MTD-731-0564
...
3
Rear Flap Ass'y. MTD-731-0661
...
4
7" WHEEL ASS'Y. COMP. MTD-734-1161
...
xx
8 x 1.75-STEEL RIM MTD-734-1162
...
6
20" BLADE MTD-742-0520
...
7
Throttle Wire-58" Lg. (Optional Parts) MTD-946-0674A
...
8
CONTROL CABLE (302R) MTD-946-0477A
...
9
Lower Handle MTD-749-0907B
...
8
CONTROL CABLE (302R) MTD-946-0477A
...
11
Height Adj. Ass'y. Comp. (R.H.) (Optional Parts) MTD-753-06761
...
12
Height Adjustment Plate (Optional Parts) MTD-787-01290A
...
13
Pivot Bar (Optional Parts) MTD-15262B
...
14
HANDLE-CONTROL (303R) MTD-747-0550
...
15
Hex Nut 1/4-28 Thd. MTD-712-0138
...
16
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
17
Front Spring Lever (Optional Parts) MTD-94832
...
18
Shoulder Bolt .50" Dia. (Optional Parts) MTD-738-0507B
...
19
Height Adj. Ass'y. Comp. (R.H.) (Optional Parts) MTD-753-06761
...
20
Handle Brkt. Ass'y.-R.H. MTD-14592
...
21
BRACKET ASSEMBLY MTD-12297
...
22
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
23
SPRING LEVER (Optional Parts) MTD-732-0417A
...
24
ADJUSTER-H (Optional Parts) MTD-16106
...
xx
ADJUSTER-H (Not Shown) (Optional Parts) MTD-16107
...
25
BAR-PIVOT (RH) *ON (Optional Parts) MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) (Optional Parts) MTD-14766
...
26
Index Plate (Optional Parts) MTD-14764C
...
27
BRACKET-CA MTD-16201
...
28
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
29
CONTROL CABLE 55" (303R) MTD-946-0555
...
30
SCREW 1/4-14 x .625 (Optional Parts) MTD-710-0892
...
31
Hex Nut 3/8-16 Thd. MTD-712-0798
...
32
L-Wash. 3/8" I.D. MTD-736-0169
...
33
CABLE CLAMP (Optional Parts) MTD-12894
...
34
Hex B-Tap Scr. #10 x .38" (Optional Parts) MTD-910-0429
...
35
CLAMP-CONDUIT (Optional Parts) MTD-751-0369
...
36
REAR BAFFLE L.H. MTD-13405
...
37
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
38
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
39
HEX NUT 1/4-20 MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
CATCHER LOCK LEVER W/ KNOB MTD-14845
...
42
CATCHER LOWER FRAME MTD-14582
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Push Cap 3/8" Rod MTD-726-0100
...
45
ROLLER-PLASTIC MTD-731-0430
...
46
Lock Wash. 5/16" I.D. MTD-936-0119
...
47
Shoulder Bolt MTD-938-0155
...
48
DECK ASSEMBLY-20IN MTD-16108
...
49
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
51
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
52
Spacer (Used w/o Height Adjuster) MTD-750-0515
...
53
KIT-BLADE MTD-753-0462
...
54
Rear Axle Bolt (Used w/ Height Adjuster) MTD-738-0102
...
xx
SHOULDER SCREW .498 DI (Used w/o Height Adjuster) MTD-738-0509
...
55
KIT-BLADE MOUNTING MTD-753-0525
...
56
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
57
Front Axle Bolt MTD-738-0102
...
58
Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg. (Optional Parts) MTD-710-0796
...
60
CIUTCH PANEL HALF (Optional Parts) MTD-731-0816
...
61
CONROL DISC PIN (Optional Parts) MTD-731-0524
...
62
PANEL (Optional Parts) MTD-731-0817
...
63
Throttle Control Lever (Optional Parts) MTD-931-0972
...
64
UPPER HANDLE MTD-749-0438D-0637
...
65
FRAME-CATCHER-UPR MTD-749-0278
...
66
GRASS BAA MTD-764-0170
...
67
Grip MTD-718-0145
...
68
Engine MTD-NA
...
69
Hex AB-Tap Scr. #8 x .38n (Optional Parts) MTD-710-0227
...
71
Engine Mounting Cover MTD-13773
...
72
Hex Self-Tap Scr. 1/4-20 x .75" MTD-710-0642
...
73
ADAPTER-GR MTD-14012
...
74
BAFFLE-CHU MTD-14235
...
75
CHUTE DOOR MTD-13407
...
76
TORSION SPRING MTD-732-0346
...
77
HINGE PIN MTD-738-0386
...
79
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
80
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
82
Fl-Wash. .281" I.D. x 1.25" MTD-736-0211
...
84
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
85
OPE GUIDE BOLT MTD-710-0842
...
87
Hairpin Cotter MTD-714-0104
...
88
Cable Tie MTD-725-0157
...
90
BRACKET-CA MTD-14924
...
91
RIVET MTD-728-0171
...
93
LABEL MTD-777-5776
...
94
LABEL - THROTTLE CONTROL MTD-777-5773
...
95
CONTROL HOUSING COMP. (Optional Parts) MTD-753-0430
...
96
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A

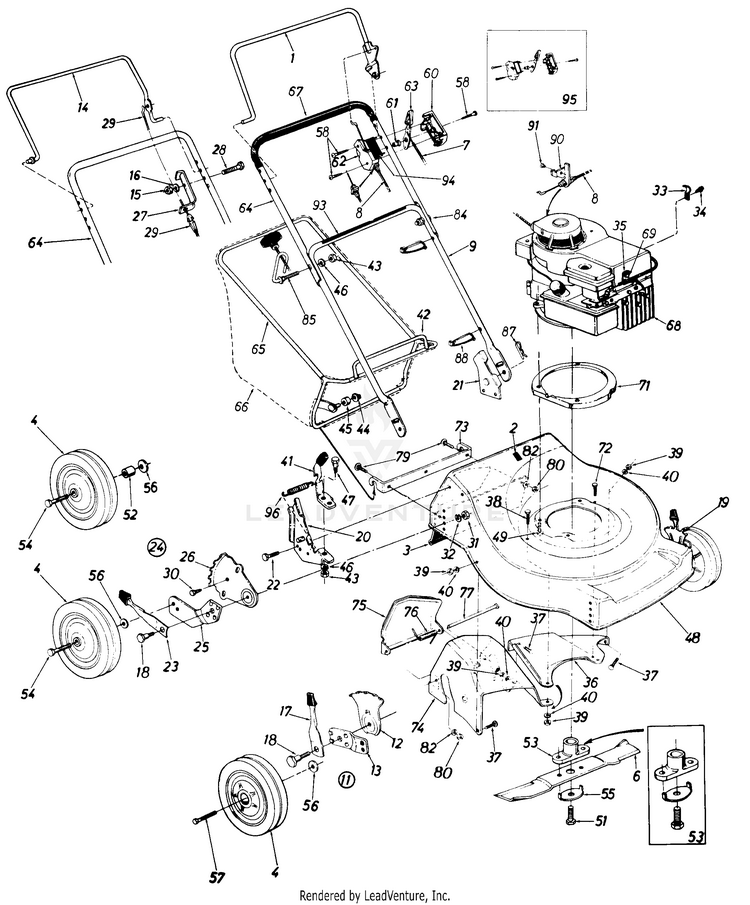

Schematic Image Zoomed
