MTD MDL 138-662-192 Lawn Tractor

Model: MTD MDL 138-662-192

Save Part Not Listed?
product name

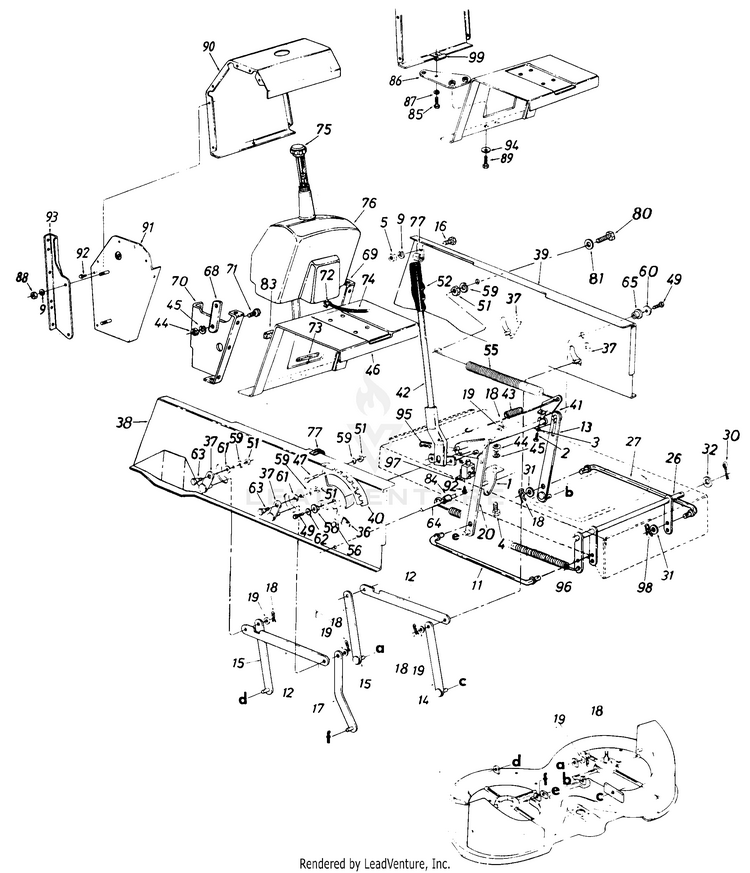

38" Or 40" Decks

...
...
1
Spring Hanger Bracket MTD-16181
...
2
Hex Tap. Scr. 5/16-18 x 1 MTD-710-0602
...
3
Hex Jam Nut 5/16-18 Thd. MTD-712-3007
...
4
Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258
...
5
HEX NUT 5/16-18 MTD-712-3010
...
xx
SPRING MTD-732-0410
...
9
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
ROD-STABILIZER (40" Decks) MTD-711-0738
...
xx
STABILIZER ROD (381' Decks) MTD-711-0790A
...
12
CONNECTING ROD MTD-09735
...
13
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
14
DECK HANGER LINK ASS'Y. MTD-14804
...
15
DECK HANGER LINK ASS'Y. (40" Deck) (Deck Links for 38" Deck, refer to separate deck breackdown.) MTD-15373
...
16
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
17
HANGER-DECK L (Dog Leg) MTD-14800
...
18
Inter. Cotter Pin 1/2" Dia. MTD-714-0101
...
19
Fl-Wash. .531 I.D. x.93" O.D. MTD-736-0160
...
20
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
26
STABILIZER SHAFT ASS'Y MTD-16234
...
27
ROD-STABILIZER (40" Decks) MTD-711-0738
...
xx
STABILIZER ROD (38" Decks) MTD-711-0790A
...
30
Cotter Pin 1/8" Dia. x 1.25" MTD-714-0470
...
31
Fl-Wash. MTD-936-0117
...
32
Fl-Wash. .635" I.D. x 1.12" O.D. MTD-736-0156
...
36
KNOB-HGT ADJ-BLACK MTD-08540
...
37
LINK ASSEMBLY- MTD-09721
...
38
FRAME-SIDE (RH) MTD-14602G-0637
...
39
L.H. SIDE FRAME MTD-14603
...
40
Index Brkt. (Deck Lift) MTD-16462
...
41
LIFT SHAFT ASS'Y. (Incl. Ref. 2 & 3) MTD-17154
...
42
KIT-DECK LIFT MTD-16465
...
43
EXTENSION SPRING MTD-732-0573
...
44
HEX NUT 1/4-20 MTD-912-0287
...
45
L-Wash. 1/4" I.D. MTD-936-0329
...
46
PLATE HITC MTD-17226
...
47
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
49
Screw, 5/16-18 x .625 MTD-710-0604A
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
LIFT HANDLE GRIP MTD-720-0157
...
55
EXTENSION SPRING MTD-932-0307A
...
56
HEIGHT ADJUSTMENT LEVER MTD-732-0412
...
58
Flange Brg. .630" I.D. MTD-748-0176
...
59
Lock Wash. 5/16" I.D. MTD-936-0119
...
60
Fl-Wash. .344" I.D. MTD-736-0231
...
61
Bell-Wash. .325" I.D. x .930" x.045" MTD-736-0425
...
62
Fl-Wash. .344" I.D. x 1.125" O.D. MTD-736-0231
...
63
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
64
ROD-RUNNING BOARD MTD-738-0526
...
65
Flange Bearing .632 ID MTD-741-0487C
...
68
Fender Support Brkt. (40" Deck) MTD-16330
...
69
BRACKET-SUPPORT-LH (40" Deck) MTD-15363
...
70
BRACKET-SUPPORT-RH (40" Deck) MTD-15364
...
71
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
72
HOSE CLAMP MTD-726-0207
...
73
Trim Strip-5" Lg. MTD-731-0511
...
74
FUEL HOSE 1/4-24" MTD-751-22813-24
...
75
Gas Tank Cap MTD-951-0226A
...
76
GAS TANK MTD-751-0403
...
77
CLAMP MTD-726-0175
...
80
SCREW 5/16-18 x 1.50 GR5 MTD-710-0959
...
81
Fl-Wash. .344" I.D. x .875" O.D. MTD-736-0159
...
83
FOAM STRIP MTD-722-0157
...
84
Spacer .523" I.D. x .640" O.D. x 1.95" Lg. MTD-711-0425
...
85
Hex Bolt 5/16-18 x 1" Lg. Gr. 5 [Units with 38" Decks only, (Models 662 thru 667)] MTD-710-0376
...
86
BAR-HITCH [Units with 38" Decks only, (Models 662 thru 667)] MTD-17166
...
87
Lock Wash. 5/16" I.D. [Units with 38" Decks only, (Models 662 thru 667)] MTD-936-0119
...
88
HEX NUT 5/16-18 [Units with 38" Decks only, (Models 662 thru 667)] MTD-712-3010
...
89
Self-Tap Scr. 3/4" Lg. [Units with 38" Decks only, (Models 662 thru 667)] MTD-710-0623
...
90
GAS TANK HOUSING [Units with 38" Decks only, (Models 662 thru 667)] MTD-16238
...
91
SIDE PANEL [Units with 38" Decks only, (Models 662 thru 667)] MTD-17082
...
xx
PANEL-SIDE (LH) (Not Shown) [Units with 38" Decks only, (Models 662 thru 667)] MTD-17083
...
92
Truss Mach. B-Tap Scr. #10 x .50" Lg. [Units with 38" Decks only, (Models 662 thru 667)] MTD-710-0351
...
93
SUPPORT BRACKET (RH) [Units with 38" Decks only, (Models 662 thru 667)] MTD-17078
...
xx
Mounting Bracket-L.H. [Units with 38" Decks only, (Models 662 thru 667)](Not Shown) (Use With Optional Grass Catcher) MTD-17077
...
94
Bell-Wash. 3/8" I.D. [Units with 38" Decks only, (Models 662 thru 667)] MTD-736-0105
...
95
Internal Cotter Pin 3/8" Dia. MTD-714-0145
...
96
EXTENSION SPRING MTD-732-0530
...
97
Safety Switch MTD-725-0803B
...
98
Cotter Pin 3/32" Dia. MTD-714-0111
...
99
Speed Nut [Units with 38" Decks only, (Models 662 thru 667)] MTD-726-0211

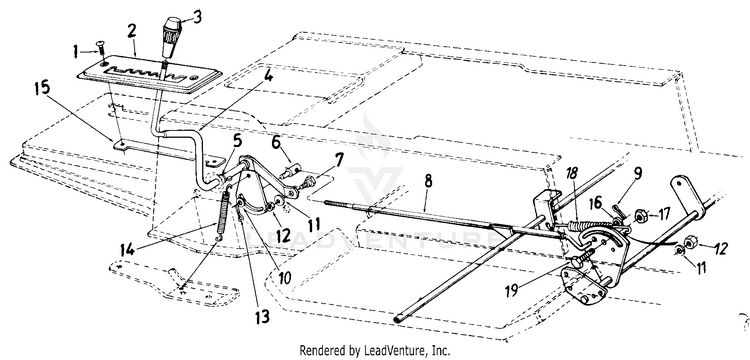

Parts

...
...
1
Truss Mach. Scr. 1/4-20 x .75" Lg. MTD-710-0924
...
2
Speed Selector Plate 4-Speed MTD-16237
...
xx
PLATE-5 SP MTD-16195
...
xx
Speed Selector Plate 6-Speed MTD-16236
...
xx
PLATE-7 SP MTD-16194
...
3
Gear Shift Knob MTD-720-0218
...
4
LEVER-SPEED SELECT MTD-16192A
...
5
Flat Washer .53" I.D. x .93" MTD-736-0192
...
6
Ferrule MTD-911-0198
...
7
Shoulder Bolt MTD-938-0155
...
8
SPEED CONTROL ROD MTD-16355
...
9
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
10
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Cotter Pin 3/32 Dia. x .75" MTD-714-0507
...
14
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
15
PLATE-CLAM MTD-16196
...
16
Fl-Wash. .47" I.D. x .88" O.D. MTD-736-0226
...
17
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
18
Ext. Spring 4.74" Lg. MTD-932-0470A
...
19
Hex Cap Bolt 5/16-18 x 1" Lg.(Grade 5) MTD-710-0376

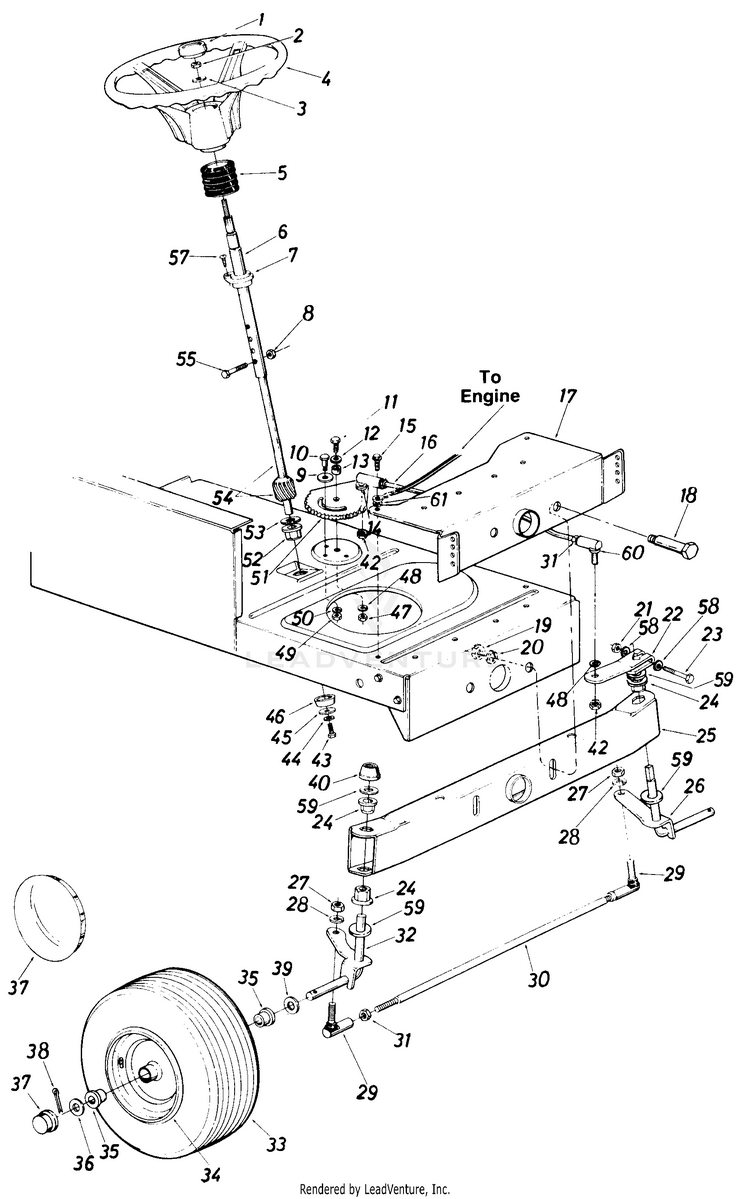

Parts

...
...
1
Steering Wheel Cap MTD-931-0220
...
2
Hex L-Nut 5/16-24 Thd. MTD-712-0237
...
3
Belleville Wash. .345" I.D. MTD-736-0242
...
4
STEERING WHEEL MTD-731-0805
...
xx
STEERING WHEEL MTD-731-0806
...
5
STEERING BELLOW MTD-731-0559B
...
6
STEERING COLUMN ASS Y. MTD-16512
...
7
FLANGE BEARING MTD-741-0356A
...
8
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
9
Fl-Wash. .438" I.D. x 1.37" O.D. MTD-936-0319
...
10
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
11
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
12
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
13
Spacer.380" I.D. x .625" O.D. x .227 MTD-950-0535
...
14
L-Wash. 3/8" I.D.* MTD-736-0169
...
15
Hex Wash. Hd. Self-Tap Scr. MTD-710-0726
...
16
STEERING DRAG LINK MTD-711-0788
...
17
Front Pivot Brkt. MTD-14619
...
18
Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd. MTD-738-0527
...
19
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
20
L-Wash. 3/8" I.D.* MTD-736-0169
...
21
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
22
Steering Arm Front Axle MTD-983-0055-0637
...
23
Hex Bolt 5/16-24 x 2.00" Lg.(Grade 5) MTD-710-0772
...
24
FLANGE BEARING MTD-941-0225
...
25
Pivot Bar Ass'y. MTD-753-0642-0637
...
26
AXLE ASSEMBLY (LH)-FR (38" Deck) MTD-16479P
...
xx
FRONT AXLE ASSY (LH) (40" 44" Decks) MTD-983-0041A
...
27
Hex Nut 3/8-24 Thd.* MTD-712-0241
...
28
L-Wash. 3/8" I.D.* MTD-736-0169
...
29
Ball Joint, 3/8-24 MTD-923-3018
...
30
TIE ROD MTD-711-0613
...
31
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
32
Front Axle Ass'y.-R.H. (38" Deck) MTD-14650A
...
xx
FRONT AXLE ASSEMBLY (RH) (40" & 44" Decks) MTD-683-0040
...
33
Wheel Ass'y. Comp. MTD-NA
...
xx
Wheel Ass'y. Comp. MTD-634-0056B-0911
...
xx
Wheel Ass'y. Comp. (Turf Tread) MTD-634-0056B-0911
...
34
Front Wheel Rim Only MTD-NA
...
xx
WHEEL RIM GREY MTD-753-0838-0662
...
xx
WHEEL RIM GREY MTD-753-0838-0662
...
35
Flange Bearing .632 ID MTD-741-0487C
...
36
Fl-Wash. .635" I.D. x 1.59" O.D. MTD-736-0285
...
37
Hub Cap MTD-931-0484A
...
xx
HUB CAP-6IN DIA RI (Optional) MTD-734-0541
...
38
Cotter Pin 1/8" Dia. x 1.25" Lg. MTD-714-0470
...
39
Fl-Wash. .640" I.D. x .24" O.D. MTD-736-0187
...
40
Push Cap 5/8" Dia. Rod MTD-726-0214
...
42
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
43
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0343
...
46
SPACER MTD-950-0532
...
47
Hex Nut 3/8-24 Thd. MTD-712-0241
...
48
L-Wash. 3/8" I.D. MTD-736-0169
...
49
HEX NUT 5/16-18 MTD-712-3010
...
50
Lock Wash. 5/16" I.D. MTD-936-0119
...
51
Steering Gear Segment MTD-717-0622C
...
52
FLANGE BEARING MTD-941-0225
...
53
Fl-Wash. (Hardened) MTD-736-0187
...
54
STEERING SHAFT-LOWER MTD-738-0522A
...
55
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
57
Oval Hd. Cr.-Sunk Scr. #10 x 5/8" Lg. MTD-710-0837
...
58
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
59
Fl-Wash. (Hardened) MTD-736-0187
...
60
Ball Joint, 3/8-24 MTD-923-3018
...
61
Ext. L-Wash. 5116" I.D. MTD-736-0607

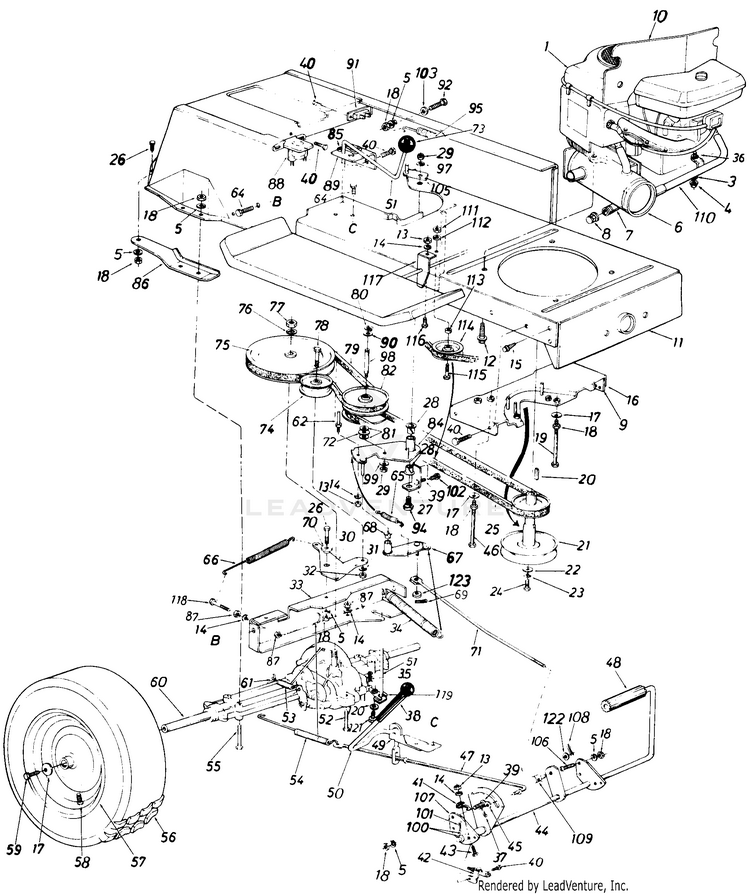

Parts

...
...
1
Engine MTD-NA
...
3
SPECIAL WASHER MTD-736-0170
...
4
HEX NUT 5/16-18 MTD-712-3010
...
5
Lock Wash. 5/16" I.D. MTD-936-0119
...
6
MUFFLER-B&S TWIN MTD-751-0444
...
7
PIPE NIPPLE MTD-937-0164
...
8
CAP - OIL DRAIN MTD-737-0143
...
9
Brake Cable Brk't. MTD-16371
...
10
Heat Shield (Style 2 and 7) MTD-16215
...
xx
Heat Shield (Style 3 and 8) MTD-16224
...
11
LOWER FRAME MTD-15930
...
12
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Hex Wash. Hd. AB-Tap Scr. 5116" x.75" Lg. MTD-710-0726
...
16
Belt Guard Brkt. Ass'y. MTD-16219
...
17
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
Hex Bolt 5/16-18 x 4.00"* MTD-710-0190
...
20
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
21
Engine Pulley (Use w/38" & 44" Decks) MTD-753-0631
...
xx
DOUBLE PULLEY (Use w/40" Deck) MTD-756-0458
...
22
Fl-Wash. 7/16" I.D. x 1.25" MTD-736-0322
...
23
L-Wash. 7/16" I.D.* MTD-736-0171
...
24
Hex Bolt 7/16-20 x 1.50" Lg. MTD-710-0757
...
25
Variable Speed Belt MTD-954-0280A
...
26
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
27
BEARING SHAFT BRACKET ASS'Y . MTD-16553
...
28
Flanged Brg. 5/8" I.D. MTD-741-0591
...
29
Hex Nut 3/8-24 Thd.* MTD-712-0241
...
30
IDLER BRACKET MTD-15891C-0637
...
31
L-Wash. 3/8" I.D.* MTD-736-0169
...
32
Hex Nut 3/8-24 Thd.* MTD-712-0241
...
33
BRACKET-TRANS SUP MTD-15945E-0637
...
34
Ext. Spring .94" O.D. x 6.7 MTD-732-0459C
...
35
Inter. Cotter Pin MTD-714-0149B
...
36
Fl-Wash. .34" I.D. x .62" O.D. x .033 MTD-736-0204
...
37
Cotter Pin 3/32" Dia. x .75"* MTD-714-0507
...
38
GRIP MTD-720-0143
...
39
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
40
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
41
SWITCH-ACTUATOR MTD-732-0582
...
42
SAFETY SWITCH MTD-725-0577
...
43
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
44
Clutch & Brake Pedal Ass'y. MTD-16235
...
45
Fl-Wash. MTD-936-0117
...
46
HEX SCREW 5/16-18 x 4.50 GR5 MTD-710-0402
...
47
BRAKE ROD MTD-747-0519
...
48
FOOT PAD MTD-735-0239A
...
49
BRAKE LEVER BRACKET MTD-15889
...
50
Hill Holder Brake Handle MTD-15888
...
51
SHIFT LEVE MTD-16430
...
52
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
53
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
54
Ext. Spring .59n O.D. x 7 08" MTD-932-0413
...
55
Hex Bolt 5/16-18 x 2.75" MTD-710-0176
...
56
Wheel Ass'y. Comp. MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE 18 x 9.5 x COLOR MTD-734-0817
...
xx
WHEEL ASSEMBLY W/TIRE-18.0X8.5 MTD-734-0601
...
xx
Wheel Ass'y. Comp. (18 x 6.50) MTD-734-1132
...
xx
Rear Wheel Compl. MTD-634-0139
...
xx
Wheel Ass'y. Comp. (18 x 5.5) MTD-734-1190
...
57
Wheel Rim Only MTD-NA
...
xx
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
xx
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
xx
Rim Only (18 x 6.50) MTD-734-1133
...
xx
Rim Assembly MTD-634-0138
...
xx
WHEEL ASSEMBLY W/O TIRE MTD-734-1191
...
58
TUBELESS VALVE (Service Only) MTD-934-0255
...
59
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
60
KIT-TRANSAXLE 1S MTD-717-1050
...
61
Brake Return Spring Anchor MTD-932-0722A
...
62
Belt Keeper, .25 DIA X 3.0 MTD-911-1000
...
64
Screw, 5/16-18 x .625 MTD-710-0604A
...
65
EXTENSION SPRING MTD-732-0568
...
66
EXTENSION SPRING MTD-932-0384
...
67
Variable Speed Torque Brkt. Ass'y. MTD-16554
...
68
FLANGE BEARING MTD-741-0419
...
69
Cotter Pin 3/32" Dia. MTD-714-0507
...
70
Shoulder Spacer .500" Dia. x.27" Lg. MTD-748-0234
...
71
CONTROL LINK MTD-747-0530A
...
72
THRUST BEARING MTD-941-0405
...
73
Knob MTD-920-0232
...
74
Fl-ldler Pulley 3.25" x 1.0" MTD-756-0643A
...
75
PULLEY MTD-756-0374
...
76
L-Wash. 1/2" I.D. MTD-736-0921
...
77
NUT MTD-712-3029
...
78
Hex Bolt 3/8-24 x .75" Lg. MTD-710-0539
...
79
Variable Speed Belt MTD-954-0281
...
80
Snap Ring .56" Dia. MTD-916-0114
...
81
Fl-Wash. MTD-736-0355
...
82
Variable Speed Pulley Ass'y. 5" O.D. MTD-917-0800A
...
84
BRACKET ASSEMBLY-VAR SP MTD-16354
...
85
Comp. Spring Clip MTD-732-0525
...
86
BRACKET-AXLE SUP-R MTD-14770
...
xx
BRACKET-AXLE SUP-L (Not Shown) MTD-14769A
...
87
Hex Nut 1/4-28 Thd. MTD-712-0138
...
88
Solenoid MTD-925-0771
...
89
BRACKET-SHIFT LEVER MTD-16429
...
90
Teflon Washer MTD-736-0414
...
91
CIRCUIT BREAKER MTD-753-0685
...
92
SCREW 5/16-18 x 1.50 GR5 MTD-710-0959
...
94
Shld. Bolt 3/8-24 x 3.12" Lg. MTD-938-0755
...
95
EXTENSION SPRING MTD-932-0307A
...
xx
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
97
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
98
Shaft 56" Dia. x 3.875" Lg. MTD-938-0569
...
99
Bell-Wash. .39" I.D. x 1.12" MTD-736-0331
...
100
Fl-Wash. MTD-936-0256
...
101
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
102
Screw, 5/16-18 x .625 MTD-710-0604A
...
103
Fl-Wash. .34" I.D. x 1.12" O.D. MTD-736-0231
...
105
BELT GUARD MTD-16067
...
106
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
107
CHAIN CASE ASS'Y. COMP. MTD-15835
...
108
Cotter Pin 3/32 x .75"* MTD-714-0507
...
109
Ferrule MTD-911-0198
...
110
Inlet Tube Ass'y. MTD-751-0446
...
111
Hex Nut 3/8"-16 Thd. MTD-712-0798
...
112
L-Wash. 3/8" I.D. MTD-736-0169
...
113
FLAT WASHER .395x1.120x.140:HD MTD-736-04005
...
114
Fl-Idler w/Flanges 2.75" O.D. MTD-956-0217
...
115
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
116
Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258
...
117
Spring Hanger Bracket MTD-16181
...
118
HEX SCREW 1/4-28 x 1.25 GR5 MTD-710-0428
...
119
SHIFT LEVER LINK ASS Y. MTD-16437
...
120
SPRING WASHER BELL MTD-736-0270
...
121
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
122
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
123
FLAT WASHER MTD-736-0275

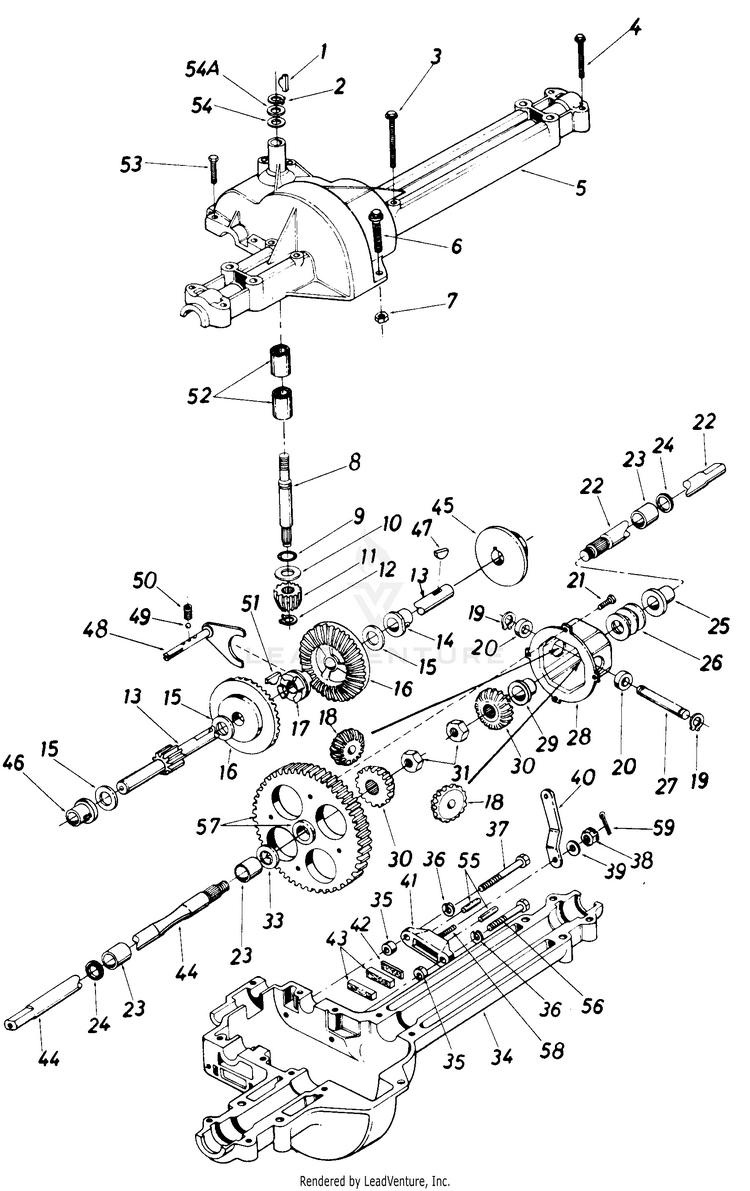

Single Speed Transaxle Right Hand

...
...
1
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
2
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
3
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75 Lg. MTD-710-1026
...
4
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0809
...
5
UPPER HOUSING MTD-717-0764
...
6
Hex Fl-Bolt 1/4-20 x .75" Lg. MTD-710-0642
...
7
HEX NUT 1/4-20 MTD-912-0287
...
8
Input Shaft MTD-717-0634A
...
9
SQUARE SEAL 5/8ID MTD-721-0178
...
10
THRUST WASHER MTD-936-0335
...
11
INPUT PINION 14T MTD-917-0633
...
12
Retaining Ring 7/16" Ext. MTD-716-0108
...
13
Drive Shaft-R.H. MTD-917-0758
...
14
Flange Brg. 5/8" I.D. x 3/4" Lg. MTD-941-0336
...
15
Fl-Wash. MTD-NA
...
xx
FLAT WASHER MTD-936-0349
...
xx
FLAT WASHER MTD-936-0336
...
xx
Fl-Wash. 5/8" I.D. x 1.0" O.D. x .040" Thk. MTD-736-0337
...
16
BEVEL GEAR 42 T MTD-717-0757
...
17
CLUTCH COLLAR MTD-917-0667
...
18
MITER GEAR MTD-717-1020
...
19
KIT-DIFF CROSS SHA MTD-753-0527
...
20
KIT-DIFF CROSS SHA MTD-753-0527
...
21
Pan Head Scr. 1/4-20 x .50" Lg. w/Patch MTD-710-0862A
...
22
AXLE (RH) MTD-717-1012
...
23
SLEEVE BEARING .75X1.00X1.00 MTD-741-05060
...
24
Oil Seal 3/4" I.D. MTD-721-0179
...
25
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
26
Fl-Wash. .760" I.D. x 1.49" O.D. MTD-736-0188
...
27
KIT-DIFF CROSS SHA MTD-753-0527
...
28
DIFFERENTIAL KIT MTD-753-0546
...
29
Comes with Ref. 28 MTD-NA
...
30
Miter Gear-H.D. MTD-917-1019
...
31
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
33
Fl-Wash. .75" I.D. x 1.5" O.D. MTD-736-0351
...
34
TRANS HOUS MTD-717-0761
...
35
SPACER MTD-750-0555
...
36
L-Wash. 1/4" I.D. MTD-936-0329
...
37
HEX SCREW 1/4-20X1 MTD-910-0886
...
38
NUT MTD-912-0273
...
39
Fl-Wash. .34" I.D. x .875" O.D. MTD-736-0371
...
40
Actuating Arm-R.H. MTD-717-0700
...
41
YOKE MTD-717-0679
...
42
PUCK PLATE MTD-917-0682
...
43
BRAKE PUCK MTD-917-0678
...
44
AXLE (LH) MTD-717-1011
...
45
BRAKE DISC MTD-717-0677
...
46
Flange Bearing 5/8" I.D. x 15/16" Lg. MTD-941-0337
...
47
KEY 3/16 x 5/8 H MTD-914-0161
...
48
SHIFT FORK ASSEMBLY MTD-917-0754
...
49
DETENT BALL .250 MTD-741-0862
...
50
DETENT SHAFT SPRING MTD-932-05125
...
51
KEY-HI PRO MTD-914-0169
...
52
NEEDLE BEARING MTD-941-0335
...
53
Screw, Hex MTD-710-0788
...
54
FLAT WASHER MTD-936-0336
...
54A
Fl-Wash. 5/8" I.D. x .040 MTD-736-0337
...
xx
FLAT WASHER MTD-936-0349
...
55
Actuating Pin 5/16" Dia. MTD-741-0343
...
56
HEX SCREW 1/4-20X1 MTD-910-0886
...
57
DIFFERENTIAL GEAR MTD-717-1059
...
58
BOLT MTD-717-0796
...
59
COTTER PIN-3/32 MTD-914-0507
...
xx
Grease, Benalene 8 oz tube (10 oz.) MTD-737-0300A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
