MTD MDL 131-809H103 Lawn Tractor

Model: MTD MDL 131-809H103

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
Hood MTD-731-1054
...
2
HOOD LATE MTD-16903
...
3
DOUBLE ENDED STUD 1/4-20 MTD-710-1034
...
4
HOOD HINGE MTD-17273
...
5
Spacer .34" I.D. x .437" MTD-750-0287
...
6
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
7
SPACER .255" 1 .D. MTD-750-0583
...
8
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg. MTD-710-1026
...
9
Hex T-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
10
Truss Mach. Scr. 1/4-20 x 1.75" Lg. MTD-710-0136
...
11
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
12
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
13
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
14
RUBBER WASHER MTD-735-0126A
...
16
HEADLIGHT LENS MTD-931-1044
...
17
GRILLE ASS'Y. MTD-17410
...
18
DASH ASS'Y. MTD-731-1046
...
19
Choke Control MTD-746-0614A
...
20
HEADLIGHT HOUSING MTD-931-0705
...
21
Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg. MTD-710-0227
...
22
FWD/REV INDEX BRACKET MTD-931-1147
...
23
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
24
Truss Mach. Scr. 1/4-20 x .75" Lg. MTD-710-0924
...
25
Hex Wash. Hd. Scr. 1/4" x .5" Lg. MTD-710-0599
...
26
INDEX BRACKET 7 SPEED MTD-931-1746
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Insulatop Nut Plate MTD-926-0320
...
30
SAFETY SWITCH KIT MTD-725-0759
...
31
Solenoid MTD-925-1426A
...
32
Hex Hd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
35
Miniature Lamp 12V Socket Type MTD-925-0963
...
36
Bell-Wash. .34" I.D. x .87" MTD-736-0242
...
38
HEADLAMP SOCKET MTD-925-1058A
...
39
HEX NUT 1/4-20 MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
44
Speed Nut 5/16" I.D. MTD-726-0201
...
45
SPRING WASHER BELL MTD-736-0270
...
50
BRACKET-DASH MTD-17293A
...
55
Transmission Cover Ass'y. MTD-17397
...
63
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
64
Ammeter MTD-925-0925
...
65
SIDE PANEL (RH) MTD-16725
...
xx
PANEL-SIDE (LH) MTD-17309B
...
69
Ignition Switch MTD-925-0267B
...
70
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
71
Reflector (Optional) MTD-930-3000
...
72
FENDER-RR MTD-17331
...
73
Throttle Control Box Ass'y. MTD-831-0823A
...
74
Throttle Wire MTD-946-0634
...
75
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
76
Key MTD-925-0201
...
77
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
78
BRACKET-DASH SUP-L MTD-17294B-0637
...
80
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
81
Knob MTD-920-0232
...
82
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
83
PUSH NUT MTD-726-0106
...
84
ROD-PTO MTD-16985
...
85
Fl-Wash. .281" I.D. x .73" MTD-736-0173
...
86
LEVER-PTO MTD-16984
...
87
Deck Clutch Control Brkt. MTD-12476
...
88
Hex Screw, 1/4-20 x 2.50 MTD-710-1122
...
89
Truss Mach. Scr. #10-24 x .5" Lg. MTD-710-0473
...
90
Safety Switch MTD-925-0465A
...
91
Hex Nut #10-24 Thd. MTD-712-0121
...
92
BRACKET-PTO MTD-16983
...
93
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
94
Engine Baffle MTD-16989A
...
95
Trim Strip 10" Lg. MTD-731-0511
...
96
MUFFLER MTD-751-0474
...
97
SPECIAL WASHER MTD-736-0170
...
98
FRONT HEAT SHEILD MTD-16934
...
99
Light Switch MTD-925-0634
...
100
CLIP-CHOKE RETAINER MTD-17782
...
101
TUBE-GRILLE SUPPORT MTD-749-0814

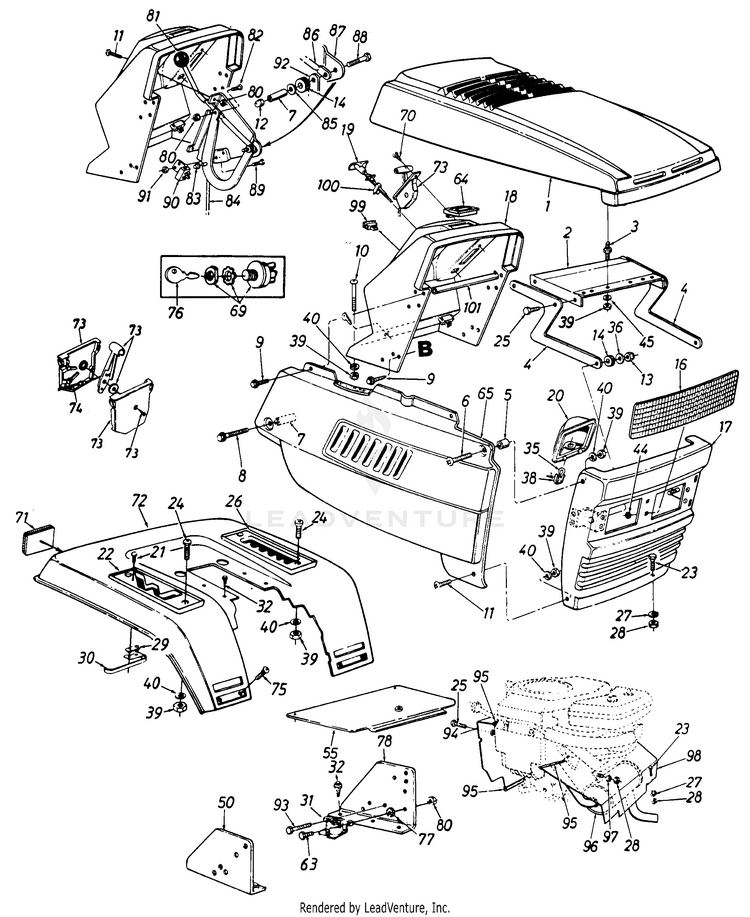

Schematic Image Zoomed
