MTD MDL 131-800H045 Lawn Tractor

Model: MTD MDL 131-800H045

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
LIFT HANDLE GRIP MTD-720-0233
...
2
LIFT HANDLE ASS Y. MTD-17282
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
LIFT SHAFT MTD-748-0274A
...
5
FLANGE BEARING MTD-941-0225
...
6
BRACKET-INDEX-DECK MTD-14231-0637
...
7
PIPE NIPPLE MTD-937-0164
...
8
CAP - OIL DRAIN MTD-737-0143
...
9
Sq. Key 1/4" x 1/4" x 1.50" Lg. MTD-714-0118
...
10
Fl-Wash. .76" I.D. x 1.49" O.D. MTD-736-0188
...
11
L-Wash. 7/16" I.D. MTD-736-0171
...
12
Hex Scr. 7/16-20 x 1.50" Lg. MTD-710-0757
...
13
Sleeve .758" I.D. x 1" O.D. MTD-731-1086A
...
14
LIFT SHAFT MTD-13889
...
15
LIFT BRACKET PIV0T MTD-13895
...
16
Adj. Deck Lift Link MTD-17303-0637
...
17
Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090" MTD-736-0192
...
18
Hairpin Cotter MTD-714-0101
...
19
Flanged Brg. 5/8" I.D. MTD-741-0591
...
20
SHOULDER BOLT MTD-738-0445
...
21
LINK-CONNECTING MTD-13790-0637
...
22
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
23
Flat Wash. .44" I.D. x 1.25" O.D. x .17" MTD-736-0322
...
24
PULLEY MTD-756-0531
...
25
Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg. MTD-710-0502A
...
26
Hex Thd. Rolling Scr. 5/16-18 x.75" Lg. MTD-710-0726
...
27
ROD-RUNNING BOARD MTD-738-0435
...
28
Clamp MTD-726-0272
...
29
TUBELESS VALVE MTD-934-0255
...
30
WHEEL ASS'Y COMP OYSTER-CARLNLAUD MTD-634-0177-0911
...
xx
Tire, 20 x 10 x 8 MTD-734-1873-0901
...
31
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
32
FLAT WASHER .34 ID x 2.0 OD x . MTD-736-0346
...
33
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
34
Eye Bolt Adj. Link 1/2-13 Thd. MTD-911-0817
...
36
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
37
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
40
SPRING MTD-932-0369
...
41
ROD-DECK CONNECTING MTD-738-0777A
...
42
HEX NUT 1/4-20 MTD-912-0287
...
43
REINFORCEMENT PLATE MTD-14170-0637
...
46
Mounting Clamp MTD-726-0273
...
47
Hub Cap MTD-731-0556
...
xx
Hub Cap MTD-734-1615A
...
48
Hex Wash. Hd. TT-Tap Scr. '/4-20 x .5" Lg. MTD-710-0599
...
49
Bell-Wash...39" I.D. MTD-736-0242
...
50
Cotter Pin .09 Dia. x 1.0" Lg. MTD-714-0111
...
51
Int. Cotter Pin MTD-714-0149B
...
52
Flat Wash. .34" I.D. x 1.12" O.D. x .125" MTD-736-0231
...
53
SCREW 5/16-24 x .500 MTD-710-0600
...
54
HEX NUT MTD-712-0206
...
55
LINK-DECK MTD-14399-0637
...
56
Fl-Wash. .344" I.D. MTD-736-0264
...
57
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
xx
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
63
L-Wash. 1/4" I.D. MTD-936-0329
...
65
Fuel Line 46" Lg. MTD-751-10349-54
...
66
Hose Clamp MTD-726-0205
...
67
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
68
STRAP MTD-17424
...
69
Gas Tank MTD-751-0528B
...
70
Gas Gauge MTD-751-0531B
...
71
PIVOT BRACKET ASSEMBLY MTD-983-0108A-0637
...
72
PLATE-HITC MTD-17342A
...
73
HITCH ROD MTD-738-0482
...
74
Hose Clamp MTD-726-0272
...
75
SPRING CLIP (Optional) MTD-727-0425A
...
77
Screw, 5/16-18 x .625 MTD-710-0604A
...
78
BRACKET MTD-783-1016B
...
79
Comp. Spring Clip MTD-732-0525

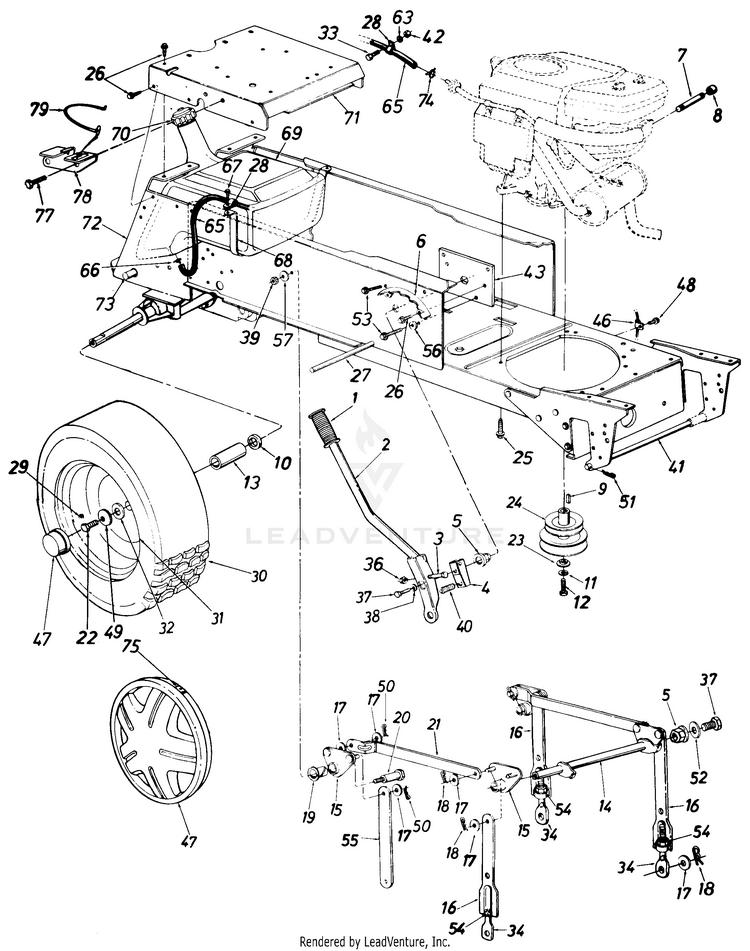

Schematic Image Zoomed
