MTD MDL 131-659G103 Lawn Tractor

Model: MTD MDL 131-659G103

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
BRACKET-GR MTD-15821
...
2
BRACKET-GRILLE (RH) MTD-15822
...
3
Hex Bolt 5/16-18 x 75n Lg. MTD-710-0118
...
4
Hex Wash. Hd. Tap Scr. 5/16-18 x .5" Lg. MTD-710-0607
...
7
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
8
Hex Wash. Hd. Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
9
BATTERY BRACKET MTD-17633
...
10
DASH SUPPORT BRACKET MTD-17300D
...
11
FENDER MTD-17324
...
12
Reflector (Optional) MTD-930-3000
...
13
Shift Cover MTD-17286B-0637
...
14
SIDE PANEL (RH) MTD-16725
...
xx
PANEL-SIDE (LH) MTD-17309B
...
15
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
16
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
17
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg. MTD-710-1026
...
18
SPACER-.260 ID x 1.32 LG x 16 MTD-750-0768
...
19
Hex Rolling Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
21
Trim Strip-12" Lg. MTD-731-0511-12
...
22
L-Wash. 1/4" I.D. MTD-936-0329
...
23
HEX NUT 1/4-20 MTD-912-0287
...
24
Speed Nut 5/16" Thd. MTD-726-0201
...
25
HEX NUT 5/16-18 MTD-712-3010
...
26
Lock Wash. 5/16" I.D. MTD-936-0119
...
27
GRILLE ASS'Y. MTD-17410
...
28
HEADLIGHT LENS MTD-931-1044
...
29
HEADLIGHT HOUSING MTD-931-0705
...
30
Miniature Lamp 12V Socket Type MTD-925-0963
...
31
HEADLAMP SOCKET MTD-925-1058A
...
32
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
33
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
34
RUBBER WASHER MTD-735-0126A
...
35
HOOD HINGE MTD-17273
...
36
Hex Wash. Hd. B-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
37
SPACER MTD-950-0218
...
38
Carriage Bolt 1/4-20 x 1.25" Lg. MTD-710-0111
...
39
HOOD LATE MTD-16903
...
40
DOUBLE ENDED STUD 1/4-20 MTD-710-1034
...
41
DASH PANEL 9 STYLE MTD-931-1048B
...
42
Ammeter MTD-925-0925
...
43
Throttle Control Box Ass'y. MTD-831-0823A
...
44
Mach. Scr. #10 x .44" Lg. MTD-710-0919
...
45
CHOKE CONTROL CABLE 29'' MTD-746-3021
...
46
Throttle Control Wire MTD-746-0501
...
47
Ignition Switch MTD-925-0267B
...
48
Key MTD-925-0201
...
49
Hood MTD-731-1054
...
50
COOLING FAN MTD-17199-0637
...
52
SHIELD-HEA MTD-16811
...
53
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
54
WIRE MTD-725-0980
...
55
BRACKET-HE MTD-16813
...
56
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
57
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
58
HEX CAP SCREW 1/4-20 x .375 GR5 MTD-710-0294
...
59
SHIELD-MUF MTD-16812
...
60
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
61
SHOULDER SCREW MTD-938-0636
...
62
SPACER MTD-750-0709
...
63
Gasket-Exhaust MTD-BS-692236
...
64
HEAT SHIELD (LH) MTD-16801
...
65
Speed Nut #10-24 Thd. MTD-712-0147
...
66
DECK LIFT HANDLE ASS'Y MTD-17675
...
69
MUFFLER MTD-951-0465A
...
70
SPRING WASHER BELL MTD-736-0270
...
71
TUBE-GRILLE SUPPORT MTD-749-0814
...
72
CLAMP-MTG MTD-726-0152
...
xx
External L-Wash. 5/16" I.D. MTD-736-0607
...
75
Retaining Nut MTD-726-0233
...
76
CLIP-CHOKE RETAINER MTD-17782

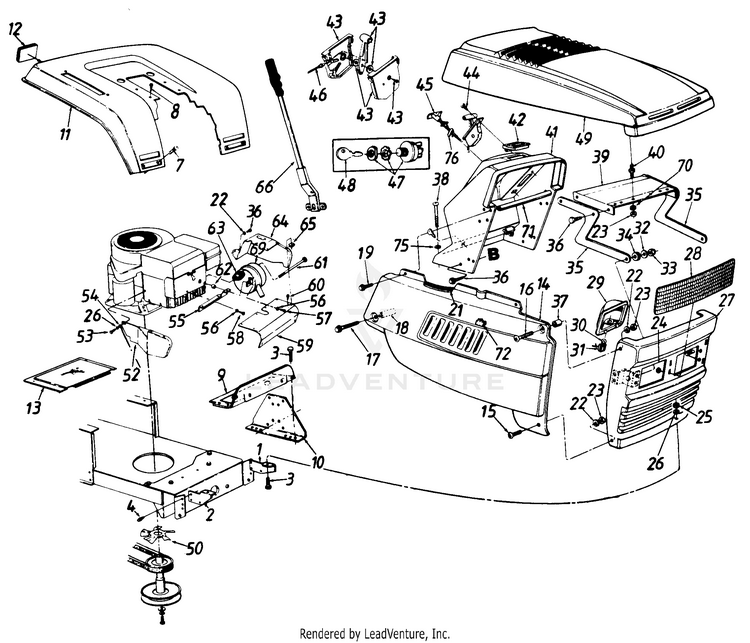

Schematic Image Zoomed
