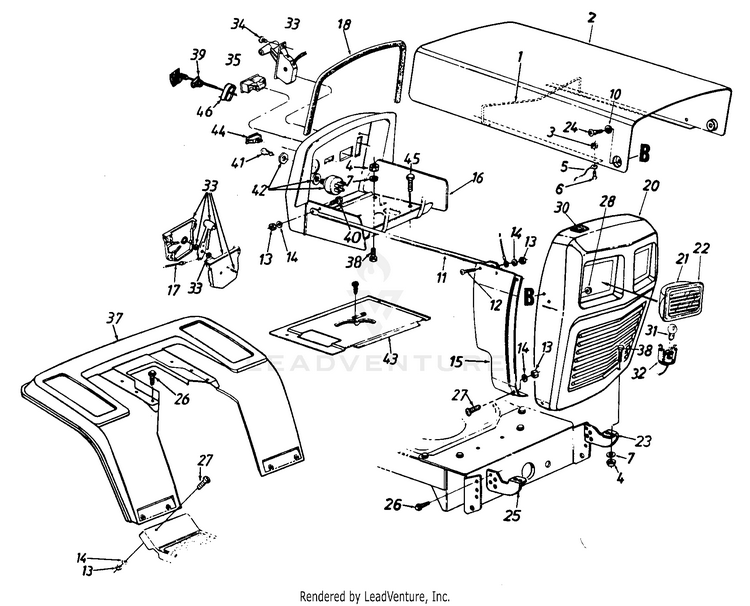

MTD MDL 131-652F206 Lawn Tractor

Model: MTD MDL 131-652F206

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
SPRING-HOOD MTD-732-0414A
...
2
HOOD MTD-14665A
...
3
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
4
HEX NUT 5/16-18 MTD-712-3010
...
5
Hood Stop 7" Lg. MTD-723-0302
...
6
Truss Hd. Scr. #10-24 x 1/2" MTD-710-0473
...
7
Lock Wash. 5/16" I.D. MTD-936-0119
...
10
Washer .39" I.D. x .62" O.D. MTD-736-0413
...
11
ROD-GRILLE SUPPORT MTD-749-0721
...
12
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
PANEL-SIDE (RH) (B&S) MTD-16622A
...
xx
R.H. - GRILLE SIDE PANEL (TEC.) (Tec.) MTD-16619A
...
xx
PANEL-SIDE (LH) MTD-16621A
...
16
PANEL ASSEMBLY MTD-17296
...
xx
DASH PANEL ASS'Y. MTD-17301
...
17
Throttle Control Wire-B&S MTD-746-0501
...
xx
Throttle Control Wire 18.5" MTD-946-0638
...
18
Molding Strip 31" Lg. MTD-731-0511-31
...
20
GRILLE MTD-17025
...
21
HEADLIGHT HOUSING MTD-931-0705
...
22
HEADLAMP LENS MTD-931-0706
...
23
GRILLE MOUNT BRKT. MTD-16643A
...
24
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
25
BRACKET-MT MTD-16644A
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
27
Carriage Bolt 1/4-20 x 2.0" Lg. MTD-710-0286
...
28
LOCK NUT 1/4 x 28 MTD-712-0380
...
xx
Trim Strip-57" Lg. MTD-731-0511-57
...
30
FOAM STRIP MTD-722-0157
...
31
Miniature Lamp 12V Socket Type MTD-925-0963
...
32
HEADLAMP SOCKET MTD-925-1058A
...
33
Throttle Box Ass'y. MTD-831-0823A
...
34
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
35
Ammeter (Optional Part) MTD-925-0925
...
37
FENDER-RR W/FRAME MTD-17870C
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
CHOKE CONTROL 29" MTD-946-0615A
...
40
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
41
Key MTD-925-0201
...
42
Ignition Switch MTD-925-0267B
...
43
SHIFT COVER MTD-17954B-0637
...
44
Light Switch MTD-925-0634
...
45
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-170-0603
...
46
CLIP-CHOKE RETAINER MTD-17782
...
xx
Muffler MTD-NA
...
xx
Muffler (8 HP, B&S) MTD-751-0157
...
xx
MUFFLER ASSEMBLY (10, 11, 12 & 12-1/2 HP, B&S) MTD-951-0302
...
xx
MUFFLER (12 HP Tec.) MTD-951-0443A
