MTD M2550 41ADZ20C758 Gas String Trimmer

Model: M2550 41ADZ20C758

Save Part Not Listed?
product name

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06194
...
2
SCREW:10-32X.5 MTD-1964
...
3
Cover Screw MTD-791-181345
...
4
Short Block Assembly (Incl. 5 - 12) MTD-753-06924
...
5
Spark Plug MTD-753-06847
...
6
Crankcase O-Ring MTD-753-06275
...
7
O-Ring MTD-753-06174
...
8
Crankcase Bolt MTD-791-182723
...
9
Module Assembly MTD-753-06763
...
10
Flywheel Assembly MTD-753-06175
...
11
Washer MTD-753-06247
...
12
Spacer MTD-753-06218
...
13
Insulator Assembly (Incl. 14 & 15) MTD-753-06189
...
14
Insulator O-Ring MTD-753-06184
...
15
Carburetor O-Ring MTD-753-06185
...
16
Carburetor MTD-753-06190
...
17
Air Cleaner Gasket MTD-753-06253
...
18
AIR CLEANER ASSEMBLY MTD-753-08366
...
19
Air Cleaner Filter MTD-753-06417
...
20
Fuel Tank Assembly (Incl. 21 & 22) MTD-753-06183
...
21
Fuel Tank Cap MTD-791-182612
...
22
Fuel Tank Screw MTD-791-181930
...
23
Clutch Assembly MTD-753-05860
...
24
Starter Housing (Incl. 2 & 25) MTD-753-08743
...
25
U-shaped Nut MTD-791-182366
...
26
CLUTCH COVER MTD-753-06181
...
27
Anti-rotation Screw MTD-791-182519
...
28
SCREW MTD-9689A
...
29
Clamp Nut MTD-712-0161
...
30
THROTTLE CABLE MTD-746P04754
...
31
LEAD WIRES MTD-753-06583
...
32
MUFFLER ASSEMBLY MTD-753-08745

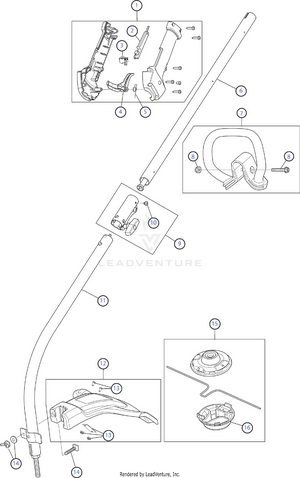

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 5) MTD-753-06790
...
2
LOCK OUT LEVER MTD-731-08433C-5
...
3
Trigger Switch Assembly MTD-791-182405
...
4
Throttle Trigger MTD-753-06861
...
5
TRIGGER SPRING MTD-753-05007
...
6
Upper Shaft Housing Assembly MTD-753-06880
...
7
D-Handle (Incl. 8) MTD-753-06039
...
8
D-Handle Bolt MTD-753-06040
...
9
Split Boom Coupler Assembly (Incl. 10) MTD-753-1190
...
10
Anti-Rotation Screw MTD-791-182057
...
11
BOOM ASSEMBLY LOWER MTD-753-06865
...
12
Shield Assembly (Incl. 13) MTD-753-04283
...
13
Blade Assembly MTD-791-180553
...
14
Shield Mounting Hardware MTD-753-04282
...
15
HEAD ASSEMBLY FIXED LIN MTD-753-08169
...
16
Glide Cap MTD-753-08170
