MTD M200-46 17ADCACT058 (2016) Z-Series

Model: M200-46 17ADCACT058 (2016)

Back To Assemblies

Save Part Not Listed?
product name

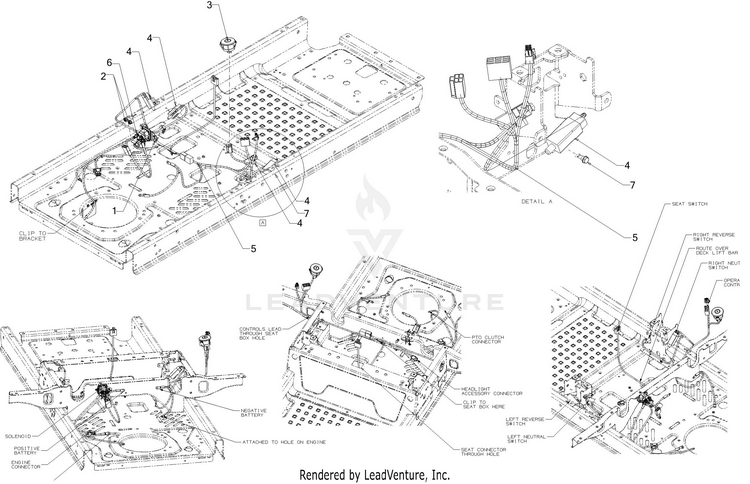

Electrical

...
...
1
SCREW 1/4-20X.625 MTD-710-1652
...
2
FLANGE LOCK NUT MTD-712-04064
...
3
KEY SWITCH 3 POSITION MTD-925-04228
...
4
INTERLOCK SWITCH (NO/NC) MTD-725-04363
...
5
MAIN HARNESS MTD-925-06000B
...
6
12V SOLENOID MTD-725-06153A
...
7
SHOULDER SCREW MTD-738-04237A
