MTD M200-46 17ADCACT058 (2016) Z-Series

Model: M200-46 17ADCACT058 (2016)

Back To Assemblies


product name

Popular Parts

Popular Parts

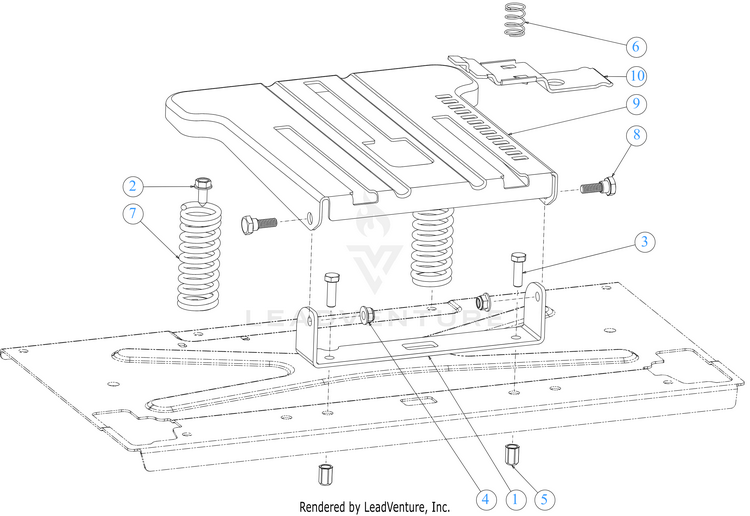

Seat Adjustment

...
...
1
SEAT PIVOT BRACKET(BLACK JACK) MTD-703-08734-0691

...
2
SCREW 5/16-18 x .750 MTD-710-04484

...
3
SCREW 5/16-18 X 1.00 GR5 MTD-710-0643

...
4
FLANGE LOCK NUT 5/16-18 MTD-712-04063

...
5
NUT RIVET 5/16-18 MTD-728-04068

...
6
COMPRESSION SPRING MTD-732-04563

...
7
COMPRESSION SPRING MTD-732-04849

...
8
Shld. Bolt .437" x .286" MTD-738-0296

...
9
Bracket, Mounting, Seat MTD-783-06049-0637

...
10
SEAT ADJUST LEVER MTD-783-06050
