MTD M200-46 17ADCACT058 (2015) Z-Series

Model: M200-46 17ADCACT058 (2015)

Save Part Not Listed?

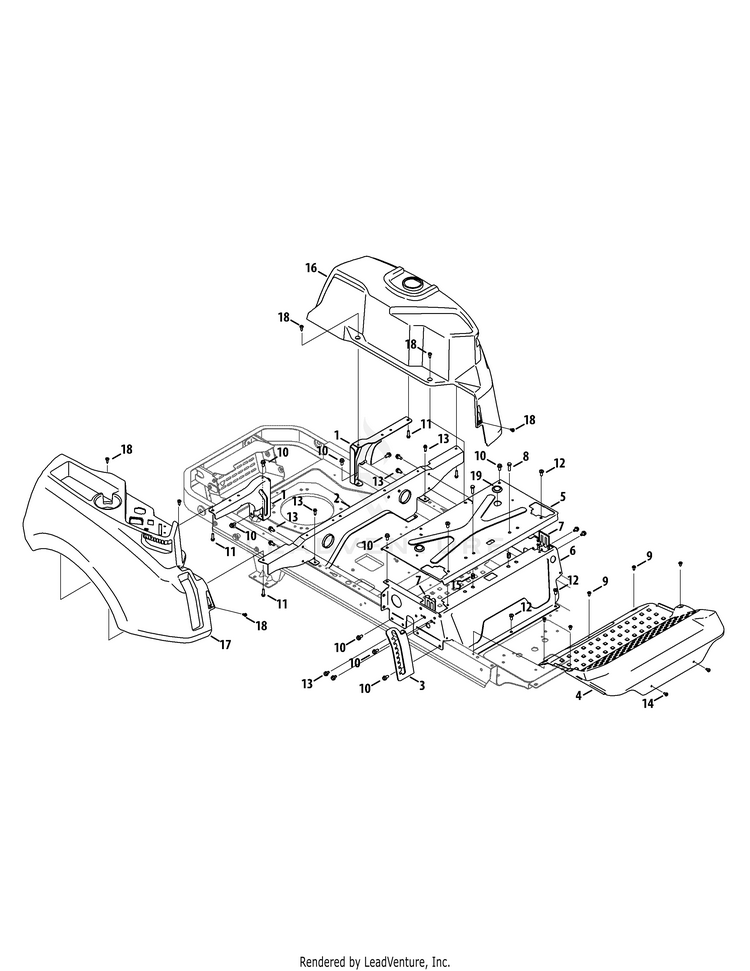

Operators Platform

REAR TANK BRACKET (BLACK JACK) MTD-703-08720C-0691

REAR SEATBOX BRACKET (POWDER BLACK) MTD-703-11179-0637

Height Index Bracket MTD-703-08762C

Floor Board MTD-703-08902A-0637

SEATBOX TOP PLATE (POWDER BLACK) MTD-703-09045J-0637

SEAT FRAME (POWDER BLACK) MTD-703-09320F-0637

Lapbar Brace Bracket MTD-703-09211A-0637

Hex Cap Screw, 5/16-18 x 1.00 MTD-710-0643

Self Tapping Screw, 1/4-20 x .50 MTD-710-05070A

SCREW 5/16-18 x .750 MTD-710-04484

Hex Washer Screw, 5/16-14 x 1.00 MTD-710-05109

Self Tapping Screw, 5/16-18 x .750 MTD-710-05424

Hex Washer Screw, 5/16-18 x .50 MTD-710-0607

Screw, Self-Tapping, 5/16-18, 0.750 MTD-710-06096

Nut, 5/16-18 MTD-728-04068

CONSOLE (LH) MTD-931-10107A

CONSOLE (RH) (W/O RMC) MTD-931-13513

TORX SHOULDER SCREW 1/4-20 MTD-738-04549A

Button Plug MTD-726-3045A

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
