MTD M155-34 17AXNAMU058 (2018) Z-Series

Model: M155-34 17AXNAMU058 (2018)

Back To Assemblies

Save Part Not Listed?
product name

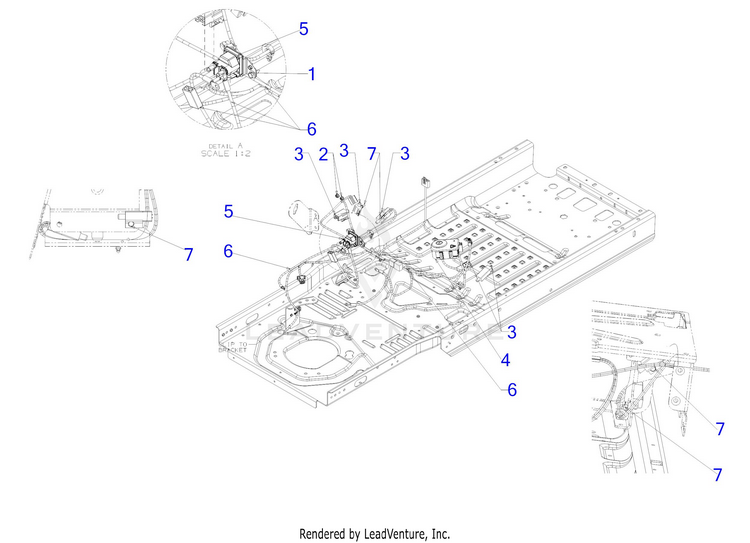

Hour Meter

...
...
1
SCREW 1/4-20X.625 MTD-710-1652
...
2
FLANGE LOCK NUT MTD-712-04064
...
3
INTERLOCK SWITCH (NO/NC) MTD-725-04363
...
4
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
5
12V SOLENOID MTD-725-06153A
...
6
MAIN HARNESS (MANUAL PTO) MTD-925-07094
...
7
SHOULDER SCREW MTD-738-04237A
