MTD M155-34 17AXNAMU058 (2018) Z-Series

Model: M155-34 17AXNAMU058 (2018)

Back To Assemblies

Save Part Not Listed?
product name

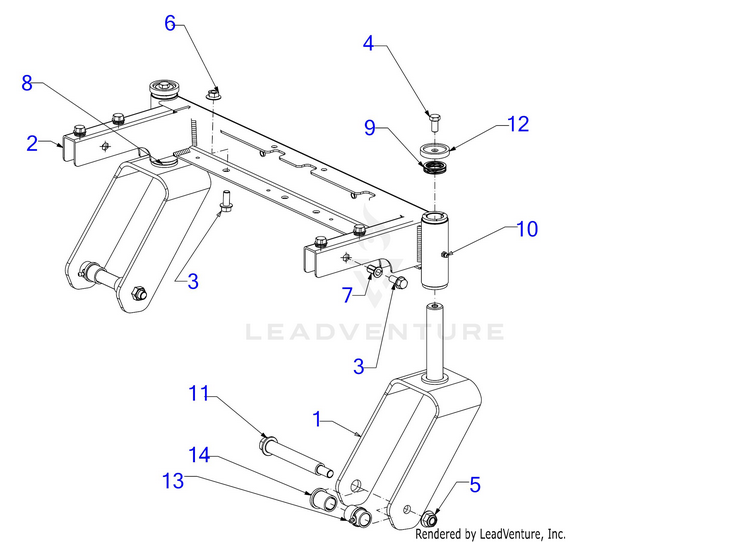

Front Axle

...
...
1
CASTER WHEEL YOKE *CHOOSE COLOR WHEN ORDERING* MTD-603-05297
...
2
AXLE KIT (REPL 603-05341) *CHOOSE COLOR WHEN ORDERING* MTD-753-09044
...
3
SCREW 3/8-16 x .875 GR5 MTD-710-04482
...
4
SCREW 3/8-16 x .75 GR 5 MTD-710-3119
...
5
NUT MTD-712-04150
...
6
FLANGE LOCK NUT MTD-712-04217
...
7
NUT RIVET MTD-728-04062B
...
8
FLANGE BEARING 25MMIDX1.25OD MTD-731-12574A
...
9
WAVE WASHER MTD-736-05033A
...
10
GREASE ZERT 1/4-28 MTD-737-04345
...
11
SHOULDER BOLT .750X4.75X1/2-13 MTD-738-04182B
...
12
SHOULDER SPACER 1.75 OD MTD-738-05093
...
13
FLANGE BEARING W/ZERT MTD-741-0990B
...
14
FLANGE BEARING MTD-741-0516B
