MTD M155-34 17AXNAMU058 (2018) Z-Series

Model: M155-34 17AXNAMU058 (2018)

Back To Assemblies

Save Part Not Listed?
product name

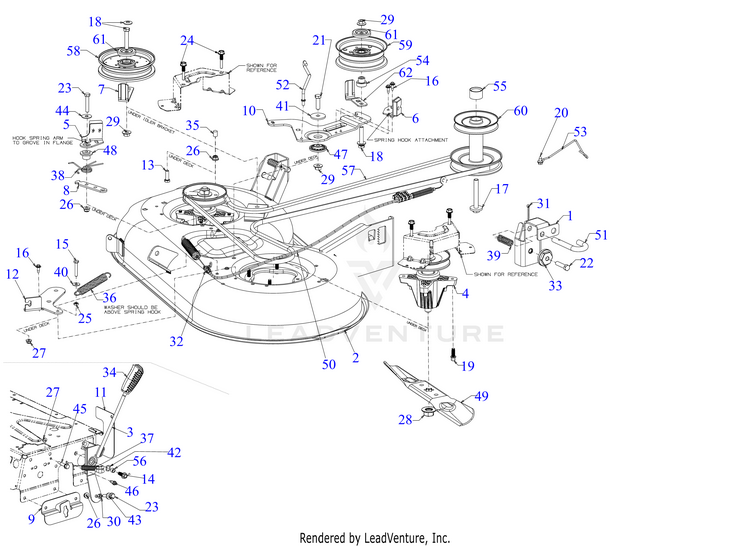

Deck

...
...
1
DECK HANGER BRACKET (LH) *CHOOSE COLOR WHEN ORDERING* MTD-603-05215A
...
2
34" DECK SHELL *CHOOSE COLOR WHEN ORDERING* MTD-903-05381
...
3
PTO ENGAGEMENT LEVER *CHOOSE COLOR WHEN ORDERING* MTD-603-05317B
...
4
SPINDLE ASSEMBLY (See Separate Breakdown) MTD-918-07288
...
5
DECK BRAKE ASSEMBLY MTD-983-05396
...
5
RIVOT (Not Shown) MTD-728-0175
...
5
DECK BRAKE PAD (Not Shown) MTD-761-05007
...
6
DECK BRAKE ASSEMBLY MTD-983-05398
...
6
RIVOT (Not Shown) MTD-728-0175
...
6
DECK BRAKE PAD (Not Shown) MTD-761-05017
...
7
BELT GUARD BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-09583
...
8
DECK BRAKE MOUNTING BRACKET (RH) *CHOOSE COLOR WHEN ORDERING* MTD-703-10801
...
9
CABLE MOUNTING BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-11374A
...
10
IDLER PIVOT BRACKET MTD-903-10991
...
11
PTO LEVER COVER BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-11105A
...
12
PTO CABLE MOUNTING BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-11316
...
13
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
14
SCREW 3/8-16 x 1 MTD-710-04683C
...
15
SCREW 1/4-20 x 1.50 GR8 MTD-710-05289
...
16
SCREW M6-1 x .625 MTD-710-06133
...
17
SCREW-SEMS 7/16-20 x 3.25 PATCH MTD-710-06151
...
18
SCREW 3/8-16 x 2.0 MTD-710-06178
...
19
SCREW 5/16-18 x .875 MTD-710-06322
...
20
SCREW 1/4-20X.625 MTD-710-1652
...
21
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
22
SCREW 3/8-16X1.5 GR5 MTD-710-3120
...
23
SCREW 5/16-18 x 1.75 GR5 MTD-710-3180
...
24
BELT KEEPER ROD .25 x 1.585 MTD-711-06112
...
25
HEX JAM NUT 1/4-20 MTD-912-0298
...
26
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
27
FLANGE LOCK NUT MTD-712-04064
...
28
HEX NUT MTD-712-0417A
...
29
FLANGE LOCK NUT MTD-712-04217
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
COTTER PIN-5/32 DIA MTD-714-0162
...
32
BOW TIE COTTER PIN MTD-714-05005
...
33
DECK ADJUSTMENT GEAR MTD-917-05298
...
34
GRIP MTD-720-04140B
...
35
VINYL CAP MTD-720-05010
...
36
EXTENSION SPRING MTD-732-04629
...
37
EXTENSION SPRING .56 OD x 4.52 MTD-732-05119
...
38
TORSION SPRING MTD-732-05151A
...
39
COMPRESSION SPRING .66 OD x 1 MTD-932-3127
...
40
FLAT WASHER .28 ID x .74 OD x .063 MTD-736-0173
...
41
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0227
...
42
WAVE WASHER MTD-936-0504
...
43
FLAT WASHER.344X.75X.1 MTD-936-3008
...
44
FLAT WASHER 344X1.00 MTD-736-3078
...
45
SHOULDER SCREW MTD-738-04185
...
46
SHOULDER SCREW MTD-738-04425
...
47
SHOULDER SPACER MTD-738-05099
...
48
DOUBLE SHOULDER SPACER .750 x .135 MTD-738-05272
...
49
17.27" BLADE (2N1) MTD-942-05052A
...
49
GENUINE FACTORY PARTS® 50" High-Lift Blade Set (6-Point Star Mount) 942-05052A, 742-05052A Retail Packaged Part MTD-490-110-F155
...
49
17.27" BLADE (2N1) MTD-742-05052-L0606
...
49
GENUINE FACTORY PARTS® 50" Low-Lift Sand Blade Set (6-Point Star Mount) 942-05052-L Retail Packaged Part MTD-490-110-F182
...
49
50" 6 PT STAR XTREME MULCH BLADE MTD-942-05052-X
...
49
GENUINE FACTORY PARTS® 50" Xtreme® Mulching Blade Set (6-Point Star Mount) 942-05052-X Retail Packaged Part MTD-490-110-F178
...
50
PTO CABLE MTD-946-05358A
...
51
DECK RELEASE PIN MTD-747-06292
...
52
DECK BRAKE ROD (RH) MTD-747-06807
...
53
PTO CABLE GUIDE MTD-747-06947
...
54
SHOULDER SPACER MTD-748-05029A
...
55
ENGINE PULLEY SPACER MTD-748-05078A
...
56
SPACER MTD-750-0526
...
57
V-TYPE BELT A SEC x 111.1 MTD-954-05158
...
58
FLAT IDLER PULLEY MTD-756-04511B
...
59
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
60
MANUAL PTO ENGINE PULLEY MTD-756-05226
...
61
IDLER PULLEY CAP MTD-783-08389
...
62
BELT KEEPER *CHOOSE COLOR WHEN ORDERING* MTD-783-08690A
