MTD Gold 31AS235-722 (2005) Snow Thrower

Model: 31AS235-722 (2005)

Save Part Not Listed?
product name

Accessories & Kits

...
...
xx
STARTER KI (fits models with a two-cycle Tecumseh 4.5 HP - 5 HP engine) MTD-OEM-390-996
...
xx
OIL:50:1 2 CYCLE (contains six 2.6 oz. bottles) MTD-490-000-0047
...
xx
Shave Plate (includes replacement shave plate and hardware) MTD-753-0451
...
xx
AUGER SERVICE KIT MTD-753-04472

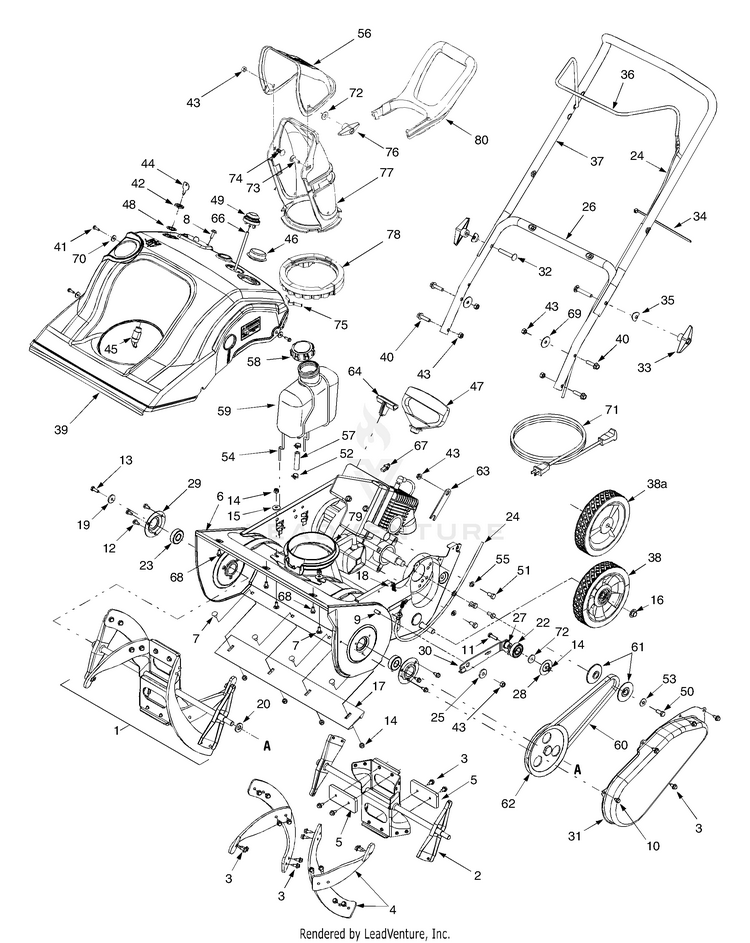

General Assembly

...
...
1
AUGER ASSEMBLY MTD-984-04027A
...
2
AUGER ASSEMBLY MTD-984-04027A
...
3
Self-tapping Screw, 1/4-14 x 0.625" MTD-710-0896
...
4
Rubber Spiral MTD-735-04032
...
5
Rubber Paddle MTD-735-04033
...
6
KIT:SERVICE:FRAME: MTD-753-05148
...
7
Carriage Bolt, 1/4-20 x .62" MTD-710-0134
...
8
Special Screw, #10-16 x .625 MTD-710-04669
...
9
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
10
Self-tapping Screw, 1/4-20 x .375 MTD-710-0653
...
11
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
12
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
13
Hex Cap Screw, 1/4-20 x .625" MTD-710-0433
...
14
Hex Flange Lock Nut, 1/4-20 MTD-712-04064
...
15
Flat Washer, .265 x .938 x .120 MTD-736-0176
...
16
Push Cap, 1/2" MTD-726-0299
...
17
Shave Plate, 2.66 x 19.88 MTD-731-1033
...
18
Extension Spring, .33 OD x 1.12 MTD-732-0357A
...
19
Flat Washer, .265 x .938 x .120 MTD-736-0176
...
20
Flat Washer, .510 x 1.00 x .125 MTD-736-0326
...
22
BALL BEARING MTD-741P0919B
...
23
BALL BEARING MTD-941-0600
...
24
CLUTCH CABLE MTD-946-04091
...
25
Shoulder Spacer MTD-748-0234
...
26
LOWER HANDLE MTD-749-04114B
...
27
SPACER MTD-750-04230A
...
28
WASHER-BRG 2.12 OD x .255ID MTD-990-00062
...
29
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
30
BRACKET MTD-790-00039
...
31
BELT COVER SINGLE STAGE MTD-790-00045C
...
32
Carriage Bolt, 5/16-18 x 2.0 MTD-710-0487
...
33
Handle Knob Assembly, 5/16-18 MTD-720-0284
...
34
Cable Tie MTD-725-0157
...
35
Saddle Washer, .320 ID x .93 MTD-736-0451
...
36
Control Bail MTD-747-04159A-0637
...
37
Upper Handle, Gull Wing MTD-749-04106A
...
38
COMPLETE WHEEL MTD-734-04063B
...
38A
Wheel-3 spoke, 7 x 1.61 MTD-734-04070
...
39
SHROUD ASSEMBLY MTD-984-04044
...
40
Hex Flange Screw 5/16-18 x 1.50 Gr. 5 MTD-710-1882
...
41
Special Screw, #10-16 x .625 MTD-710-04669
...
42
Hex Nut, 5/8-32 x .12 MTD-712-0252
...
43
Hex Flange Lock Nut, 5/16-18, Gr. 5 MTD-712-04063
...
44
Key MTD-925-0201
...
45
KEY SWITCH MTD-925-2018
...
46
SPARK PLUG CAP MTD-731-1133C
...
47
HANDLE-MITTEN GRIP MTD-7510009636
...
48
Lock Washer Internal, .625 x 1.058 MTD-736-0225
...
49
Primer MTD-TC-570682A
...
50
Hex Screw, 5/16-24 x .75 Gr. 75 MTD-710-0627
...
51
Hex Screw, 5/16-18 x .625 Gr. 5 MTD-710-3025
...
52
Hose Clamp MTD-726-0205
...
53
Cupped Washer, .340 x .872 x .060 MTD-736-0242
...
54
SUPPORT WIRE MTD-747-04150
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
57
FUEL HOSE 1/4-24" MTD-751-22813-24
...
58
TANK CAP MTD-751-0603B
...
59
FUEL TANK 2 QUART MTD-951-10023
...
60
V-Belt 1/2 x 35.0" Lg. MTD-954-0101A
...
61
Pulley Half, .625 x 2.25 MTD-956-0416B
...
62
Pulley, 1/2 x 1/2-20 x 6.0 MTD-756-0475
...
63
MOUNT BRACKET MTD-790-00048-0637
...
64
HANDLE-REC MTD-7519630
...
65
HEX FLANGE NUT MTD-712-3004A
...
66
Primer Tube (order from Tecumseh) MTD-NA
...
67
CONTROL KNOB MTD-TC-35511
...
68
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
69
Flat Washer, .320 x 1.25 MTD-736-0362
...
70
Flat Washer, .194 x .62 x .063 MTD-736-0400
...
71
2 PRONG EXTENSION CORD MTD-629-0236
...
72
Flat Washer, .349 x .879 x .063 MTD-736-0159
...
73
Carriage Screw, 5/16-18 x 1.0 MTD-710-04071
...
74
Carriage Bolt, 5/16-18 x.075 MTD-710-0451
...
75
Chute Adjustment Spring MTD-932-04111
...
76
Handle Knob Assembly, 5/16-18 MTD-720-0284
...
77
Lower Chute 5" Dia MTD-931-04127
...
78
Ring-Lower Chute MTD-931-04353
...
79
Chute Adapter 5" Dia MTD-931-04886
...
80
Chute Handle MTD-731-04388A
