MTD Gold 31AM63LF704 (2008) Snow Thrower

Model: 31AM63LF704 (2008)

Back To Assemblies

Save Part Not Listed?
product name

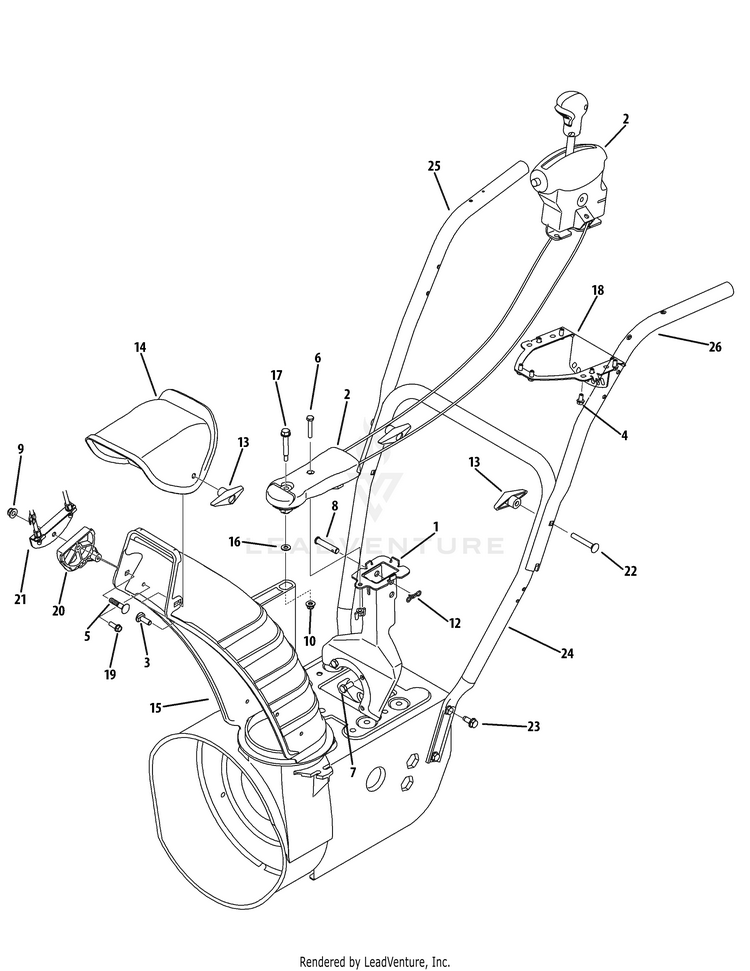

Extended Chute 2 & 4 way

...
...
1
CHUTE SUPPORT BRACKET ASSEMBLY MTD-684-04311A-0637
...
2
KIT:SERVICE 4-WAY CHUTE CONT ASSEMBLY MTD-753-08391
...
2
Cable, Pitch Control with routing clip (not shown) MTD-946-04551
...
2
Cable, Pitch Control (not shown) MTD-946-04527
...
2
CABLE CLIP (not shown) MTD-731-07868
...
2
CHUTE CONTROL ASSEMBLY 2-WAY MTD-984-04334
...
3
Carriage Bolt, 5/16-18 x 1.00 MTD-710-04071
...
4
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
5
Carriage Bolt, 5/16-18 x .750 (2-way) MTD-710-0451
...
5
Carriage Bolt, 5/16-18 x 1.50 (4-way) MTD-710-0262
...
6
Hex Screw, 1/4-20 x 1.50 MTD-710-0606
...
7
Hex Screw, 5/16-24 x .750 MTD-710-0627
...
8
Clevis Pin, 3/8 -1.87 MTD-711-04469A
...
9
Flange Lock Nut, 5/16-18 MTD-712-04063
...
10
Flange Lock Nut, 1/4-20 MTD-712-04064
...
11
WING NUT 1/4-20 MTD-712-3087
...
12
Bow-tie Cotter Pin MTD-714-04040
...
13
Wing Knob, 5/16-18 MTD-720-0284
...
14
UPPER CHUTE (W/LBL MANUAL TILT) (2-way) MTD-731-04426C
...
14
UPPER REMOTE CHUTE WITH LABEL (4-way) MTD-731-04427B
...
15
LOWER CHUTE 5" DIA MTD-731-06440A
...
16
Flat Washer, .25 x .630 x .0515 MTD-736-0463
...
17
Shoulder Screw, .312 x 1.70 x 1/4-20 MTD-738-04194
...
18
LOCK CONTROL BRACKET MTD-790-00131A-0637
...
19
Hex Washer Screw, 1/4-15 x .750 (4-way) MTD-710-0895
...
20
Chute Tilt Cable Guide (4-way) MTD-731-06451
...
21
Cable Bracket (4-way) MTD-784-5594
...
22
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
23
SCREW 5/16-18 x .750 MTD-710-04484
...
24
Lower Handle MTD-749-04138A
...
25
Upper Handle, RH MTD-749-04190A
...
26
Upper Handle, LH MTD-749-04191A
