MTD Gold 31AH660G300 (2004) Snow Thrower

Model: 31AH660G300 (2004)

Save Part Not Listed?
product name

Belt & Engine Accessories

...
...
1
Hex Washer Screw 1/4-20 x.625 MTD-710-1652
...
2
Belt Cover MTD-731-1324
...
3
Extension Spring MTD-932-0710
...
4
Hex Screw 5/16-24 x.75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-956-0987
...
9
V - Belt MTD-954-0346
...
10
HALF PULLEY MTD-756-0986
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
Lock Hex Cap Screw 5/16-24 MTD-710-1245B
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
17
Bell Washer MTD-736-0242
...
18
Flat Washer MTD-736-0505
...
19
BELT: 3V X 35.00 LG MTD-954-0430C
...
20
Auger Pulley MTD-756-0967
...
21
Flat Washer 3/8 x 1.25 OD MTD-736-0247
...
22
Bell Washer MTD-736-0331
...
23
Hex Cap Screw 3/8-24 MTD-710-0696
...
24
Adapter Pulley MTD-948-0360
...
25
Hex Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
Self Tapping Screw 5/16-18 MTD-710-0602
...
28
Cable Guide MTD-732-0705

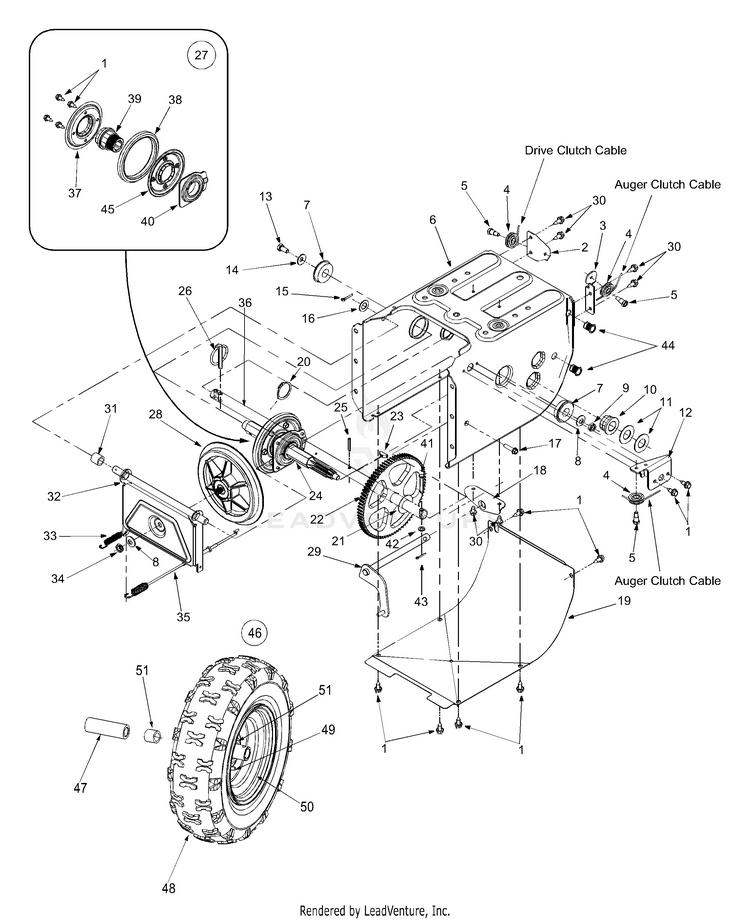

Frame

...
...
1
Self-tapping Screw, 1/4-20 x.625 MTD-710-1652
...
2
DRIVE GUIDE BRACKET MTD-784-5688
...
3
AUGER GUIDE BRACKET MTD-784-5687A
...
4
Cable Roller MTD-756-0625
...
5
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
6
FRAME HOUSING MTD-784-5630B
...
7
BALL BEARING MTD-941-0563
...
8
Bell Washer MTD-736-0105
...
9
Lock Jam Nut MTD-712-0116
...
10
Hex Flange Bearing MTD-741-04026
...
11
Flat Washer Use more than one washer on either side, only if necessary to reduce axle-play. MTD-736-0188
...
12
GUIDE BRACKET MTD-784-5689A-0637
...
13
Lock Hex Screw MTD-710-0538
...
14
Bell Washer.340 ID x.872 OD MTD-736-0242
...
15
Cotter Pin MTD-714-0474
...
16
Flat Washer.536 ID x.930 OD MTD-736-0160
...
17
Self-tapping Screw, 1/4-20 x 1.25 MTD-710-0809
...
18
Frame Shift Bracket MTD-784-5590
...
19
FRAME COVER MTD-784-5638A
...
20
Snap Ring MTD-716-0102
...
21
Flat Washer.760 ID x.50 OD MTD-736-0351
...
22
80 Tooth Gear MTD-717-1445
...
23
Key MTD-714-0126
...
24
7-Tooth Shaft MTD-917-04094
...
25
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
26
Click Pin MTD-714-0143A
...
27
Wheel Assembly Friction MTD-984-0042C
...
28
Friction Wheel Disc Ass'y. MTD-956-0012A
...
29
SHIFT ROD ASSEMBLY MTD-684-04243
...
30
Self-tapping Screw, 1/4-20 x.5 MTD-710-0599
...
31
Spacer MTD-748-0190
...
32
BRACKET ASSEMBLY MTD-984-0021-0637
...
33
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
34
Jam Nut 3/8-24 MTD-712-0711
...
35
Cable-Drive Clutch MTD-946-0898
...
36
AXLE .750X24.5 MTD-738-0830
...
37
Friction Plate MTD-790-00010
...
38
Rubber Only MTD-935-0243B
...
39
Wheel Assembly Friction MTD-984-0042C
...
40
Friction Wheel Bearing Assembly MTD-618-0063A
...
41
Clevis Pin, 1/4 x 1.3725 MTD-711-1364
...
42
Flat Washer,.281 x.5 x.063 MTD-736-0142
...
43
Cotter Pin,.75 MTD-714-0507
...
44
INSERT NUT 5/16 MTD-712-0703A
...
45
FRICTION PLATE MTD-790-00011
...
46
WHEEL ASSEMBLY 16 x 6.5 MTD-734-1712A
...
47
SPACER MTD-731-04043
...
48
TIRE-SNOW HOG-16X6 MTD-734-1525
...
xx
Tire Chains (Not Shown) MTD-490-241-0029
...
49
TUBELESS VALVE MTD-934-0255
...
50
WHEEL RIM 8.0 x 5.38 x 7.30 MTD-734-1711A
...
51
Sleeve Bearing .752" I.D. MTD-941-0401

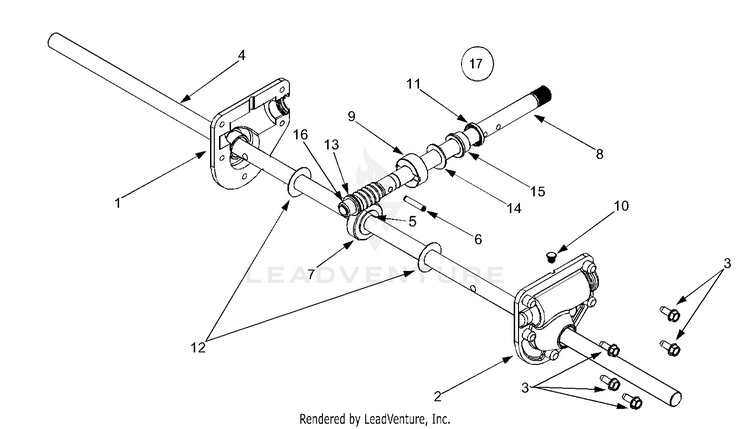

Gearbox Assembly

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Hex Screw 1/4-20 x.75 MTD-710-0642
...
4
Spiral Axle 28" MTD-711-0910A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Spiral Pin MTD-715-0143
...
7
WORM GEAR 20T MTD-917-04861
...
8
IMPELLER SHAFT MTD-717P0526
...
9
Thrust Collar MTD-718-0186
...
10
Grease Plug MTD-721-0325
...
11
Grease Seal MTD-721-0327
...
12
Flat Washer.76 x 1.5 x.030 MTD-736-0351
...
13
Flat Washer.508 x 1.0 x.020 MTD-736-0369
...
14
Flat Washer.76 x 1.5 x.060 MTD-736-0445
...
15
Flange Bearing.75 x 1.0 x.59 MTD-741-0662
...
16
Flange Bearing.75 x 1.0 x.925 MTD-741-0663
...
17
Gear Assembly: Auger 28" MTD-918-0416B

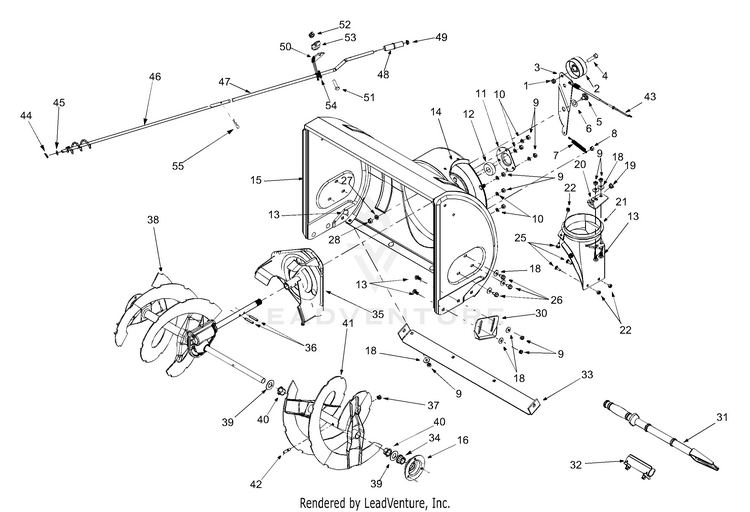

General Assembly

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-936-0167
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt 5/16-18 x.75 MTD-710-0451
...
14
Reinforcement Chute MTD-705-5226
...
15
28" HOUSING ASSEMBLY MTD-684-0041D
...
16
Bearing Housing MTD-784-5618A-0637
...
18
Bell Washer MTD-736-0242
...
19
BUSHING .380 ID MTD-941-0475
...
20
Chute Crank Bracket MTD-784-5647-0637
...
21
Adapter Chute MTD-731-1379D
...
22
LOCK NUT 1/4 MTD-912-3027
...
25
Carriage Screw 1/4-20 x.75 MTD-710-0703
...
26
Screw 5/16-12 MTD-710-0726
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
30
Snow Shoe MTD-784-5580
...
31
Snow Removal Tool MTD-931-2643
...
32
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
33
Shave Plate: Auger 28" MTD-790-00118-0637
...
34
Hex Flange Bearing MTD-941-0245
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Lock Nut 5/16-18 MTD-712-0429
...
38
Spiral Assembly: RH 28" MTD-684-04184-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
28" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04185-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
43
Cable-Auger Clutch MTD-946-0897
...
44
Hairpin Clip MTD-714-0104
...
45
Flat Washer MTD-736-0185
...
46
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
47
Upper Chute Crank MTD-747-0737-0637
...
48
Chute Crank Knob MTD-720-0201A
...
49
Push Cap MTD-726-0100
...
50
Bracket, Chute Crank MTD-705-5266-0637
...
51
Hex Screw 1/4-20 MTD-710-3015
...
52
HEX NUT 1/4-20 MTD-912-0287
...
53
SPRING WASHER BELL MTD-736-0270
...
54
BUSHING .380 ID MTD-941-0475
...
55
Hairpin Clip MTD-714-0145

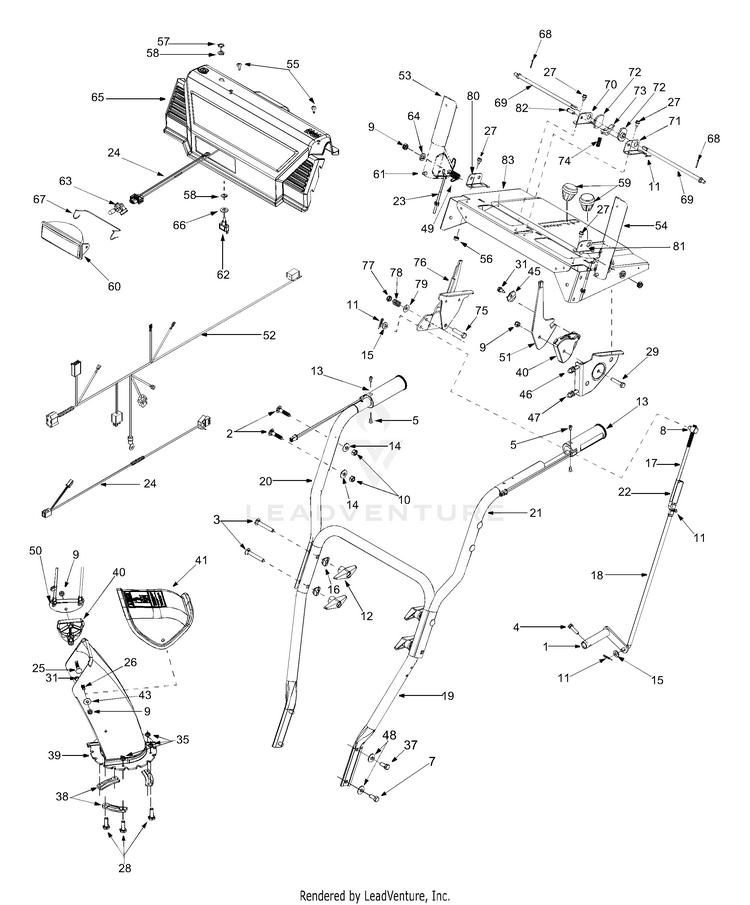

Handle & Chute

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
3
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
4
TT Screw 1/4-20 x 1" MTD-710-0788
...
5
C-Sunk Screw #10-16x 0.625" MTD-710-0837
...
7
Hex Screw 5/16-18 x.75" MTD-710-1880
...
8
Engagement Ferru MTD-911-0677
...
9
Hex Lock Nut 5/16-18 MTD-712-0429
...
10
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
11
Cotter Pin MTD-714-0104
...
12
Handle Knob MTD-720-0284
...
13
Heated Grip MTD-725-1757
...
14
Belleville Washer MTD-736-0242
...
15
FLAT WASHER MTD-736-0275
...
16
Saddle Washer MTD-736-0451
...
17
SHIFT ROD MTD-747-0620A
...
18
LOWER SHIFT ROD MTD-747-0621
...
19
LOWER HANDLE MTD-749-0951A
...
20
UPPER HANDLE (RH) MTD-749-0952A
...
21
UPPER HANDLE (LH) MTD-749-0953A
...
22
Rod-Clutch Lock MTD-950-0963
...
23
Cable "Z" Fitting MTD-946-0778
...
24
Halogen Light Harness MTD-929-0059
...
25
Carriage Bolt: 5/16-18 x 1.5" MTD-710-0262
...
26
Carriage Bolt: 5.16-18 x 1.0" MTD-710-04071
...
27
TT Screw: 1/4-20 x 0.5" MTD-710-0599
...
28
Hex Screw 1/4-20 MTD-710-3015
...
29
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
31
Hex Screw AB:1/4-15 x 0.750" MTD-710-0895
...
35
LOCK NUT 1/4 MTD-912-3027
...
37
Hex Screw 5/16-18 MTD-710-0643
...
38
Chute Flange Keeper MTD-731-0851A
...
39
Lower Chute MTD-731-1300E
...
40
Cable Guide: Chute Tilt MTD-731-1313C
...
41
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
43
5/16 Washer MTD-736-0159
...
45
SPECIAL WASHER MTD-736-0506A
...
46
Chute Deflector Control Cable MTD-946-0896
...
47
Chute Deflector Cable w/ Clip MTD-946-0901
...
48
Lock Wash. 5/16" I.D. MTD-936-0119
...
49
Torsion Spring MTD-732-0746
...
50
Cable Bracket MTD-784-5594
...
51
Handle, Chute Tilt MTD-784-5604A-0637
...
52
HEATED GRIPS HARNESS ASSEMBLY W/DIODE MTD-629-1094A
...
53
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
54
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
55
Special Screw, #10-16 x .625 MTD-710-04669
...
56
Hex Sems Nut: 1/4-20 MTD-712-0271
...
57
HEX NUT MTD-712-0693
...
58
LOCK RING MTD-716-0398
...
59
Knob MTD-920-0232
...
60
Lens/Lamp Assembly Housing MTD-925-1672
...
61
Rubber Bumper MTD-735-0199A
...
62
TOGGLE SWITCH (SINGLE) MTD-925-1756
...
63
Headlight Bulb MTD-925-1759
...
64
Washer MTD-736-0509
...
65
Handle Panel MTD-731-04450
...
66
Flat Washer MTD-736-0226
...
67
Headlight Retainer MTD-747-1136
...
68
Cotter Pin: 3/32 x.75 MTD-714-0507
...
69
Cam Rod MTD-747-0877
...
70
Brkt., Handle Support - RH MTD-784-5680-0637
...
71
HANDLE BRACKET (LH) MTD-784-5679-0637
...
72
Cam Handle Lock MTD-748-0362
...
73
Handle Lock Pawl MTD-948-0363
...
74
Compression Spring:.36 x 1.0 MTD-732-0145
...
75
Hex Cap Screw: 3/8-24 x 1.5 MTD-710-0459A
...
76
KIT-SHIFT HANDLE:S MTD-753-05395
...
77
Jam Nut, 3/8-24 MTD-712-0116
...
78
Comp. Spring:.39 x.6 x.88 MTD-732-0193
...
79
Bell Washer MTD-736-0105
...
80
Brkt., Handle Support - RH MTD-784-5682-0637
...
81
LH Handle Support Bracket MTD-784-5681
...
82
Clevis Pin MTD-711-0653
...
83
HANDLE PANEL ASSEMBLY MTD-684-0103A
