MTD Gold 24BF510E204 (2009) Log Splitter

Model: 24BF510E204 (2009)

Save Part Not Listed?
product name

-SAFETY RECALL

...

No Parts Available for this Schematic

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM Briggs & Stratton Engines MTD-759-3338
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 Honda Engine MTD-FF-22
...
xx
Pre Filter Briggs & Stratton Engines MTD-BS-493537S
...
xx
AIR FILTER Briggs & Stratton Engines MTD-BS-491588S
...
xx
Air Filter Honda Engine MTD-17211-ZL8-023
...
xx
Fuel Filter Briggs & Stratton Engines MTD-BS-298090S
...
xx
Cylinder Assembly MTD-918-0769A
...
xx
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
xx
Inlet Filter MTD-737-04093
...
xx
Vented Dipstick MTD-737-0348A
...
xx
Flexible Coupling MTD-917-0891
...
xx
Adjustable Gibbs MTD-781-0351
...
xx
Hydraulic Valve Control MTD-747-04539A
...
xx
Grip MTD-720-04088
...
xx
Valve Handle Link MTD-913-04036
...
xx
Chain Hitch MTD-713-0433A
...
xx
Wheel Assembly MTD-634-0186
...
xx
Hub Cap MTD-734-0873

General Assembly

...
...
1
Clevis Pin, .25 x 1.00 MTD-711-04585
...
2
Handle Valve Link MTD-913-04036
...
3
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
4
LOGSPLITTER VALVE MTD-918-04533
...
4
LOGSPLITTER VALVE MTD-918-04534
...
4
Valve (Model 570) MTD-918-0481A
...
5
Hydraulic Cylinder MTD-918-0769A
...
5
Kit Seal 4.5" for XINGHUI cylinder 918-0769A. Not shown MTD-953-05607
...
5
Kit Seal 4.5" for ENERGY cylinder 918-0769A Not shown MTD-953-05608
...
6
Grip MTD-720-04088
...
7
Hydraulic Hose, 3.4-16 MTD-727-04166
...
8
Hydro Fitting, 90 x 3.4 x .75 MTD-737-0153
...
9
Hydro Fitting, 90 x 3.4 x 1/2 MTD-737-0192
...
10
Nipple Fitting, 1.2 x 1.89 MTD-737-0238
...
11
Hydraulic Valve Control MTD-747-04539A
...
12
Hex Screw, 3.8-24 x 1.50 MTD-710-0459A
...
13
Hex Screw, 1.2-20 x 2.75 MTD-710-1018
...
14
Hex Screw, 1.2-13 x 3.25 MTD-710-1806
...
15
Jam Nut, 3.8-24 MTD-712-0711
...
16
Hex Lock Nut, 1.2-13 MTD-712-3022
...
17
Hex Lock Nut, 1.2-20 MTD-912-3058
...
18
Wedge MTD-719-0550A
...
19
Adjust Gibs, .625 x .625 x 2.00 MTD-781-0351
...
20
Back Plate MTD-781-0790A-0637
...
21
Self-Tapping Screw, 3.8-16-1.000 MTD-710-0654A
...
22
Dislodger Bracket MTD-781-04426-0662
...
22
Dislodger Bracket MTD-781-04426-0638
...
23
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
24
Hose Clamp MTD-726-0132
...
25
Return Hose MTD-727-0443
...
26
Filter Housing MTD-753-06643
...
27
ADAPTER MTD-737-0312
...
28
Hose Guard (510/570) MTD-781-0526A
...
29
Hose Guard (510/570) MTD-781-0538A
...
30
CLEVIS PIN MTD-711-1587
...
31
Cotter Pin 1/8" Dia. MTD-714-0470
...
32
BEAM ASSEMBLY (POWDER BLACK) MTD-681-04071A-0637
...
33
SCREW 5/16-18 x .750 MTD-710-04484
...
34
Log Tray Bracket MTD-781-04179-0637
...
35
Log Tray Bracket MTD-781-04180-0637
...
36
Hitch Coupling Assembly MTD-681-04030
...
37
Hex Screw, 3.8-16 x 3.00 MTD-710-0521
...
38
Hex Screw, 3.86 x 3.50 MTD-710-3085
...
39
Clevis Pin, 5.16 x 2.5 MTD-911-0813
...
40
Flange Lock Nut, 3.8-16 MTD-712-04065
...
41
Tow Chain MTD-713-0433A
...
42
Spiral Pin MTD-715-0120
...
43
Spring Pin MTD-732-0194
...
44
Compression Spring, .66 x 1.8 MTD-932-3127
...
45
Flat Washer .375 ID x .738 OD MTD-736-0185
...
46
Tongue Latch Rod MTD-747-1261
...
47
Tongue Latch - Gray MTD-781-1045-0662
...
47
Tongue Latch - Red MTD-781-1045-0638
...
48
JACK STAND(POWDER BLACK) MTD-781-0789-0637
...
49
TONGUE TUBE(OYSTER GRAY) MTD-781-0788-0662
...
49
TONGUE TUBE(MTD RED) MTD-781-0788-0638
...
50
Push Cap, 5.8 MTD-726-0214
...
51
Compression Spring, .625 x 4.0 MTD-732-0583
...
52
Flat Washer, .635 x .93 x .06 MTD-936-0116
...
53
Lock Rod MTD-781-0690
...
54
FRAME (POWDER BLACK) MTD-981-04040A-0637
...
55
Hex Screw, 3.8-16 x 3.50 MTD-710-3085
...
56
Flange Lock Nut, 3.8-16 MTD-712-04065
...
57
Self-Tapping Screw, 3.8-16 x 1.250 MTD-710-0502A
...
58
Flat Washer, .407 x .812 x .135 MTD-736-3010
...
59
Vented Dipstick MTD-737-0348A
...
60
Hex Screw, 5.16-18 x 1.00 MTD-710-0376
...
61
Hex Screw, 5.16-18 x 3.25 MTD-710-3056
...
62
Flange Lock Nut, 5.16-18 MTD-712-04063
...
63
Gear Pump MTD-918-04127
...
63
FLEXIBLE COUPLING 7/16"& 7/8"ID MTD-918-0686
...
64
COUPLING SHIELD MTD-719-0353
...
65
Flex Coupling MTD-917-0891
...
65
Set Screws MTD-710-1842A
...
65
Square Key 3/16" x .75 MTD-714-0122
...
65
Coupling, .500 MTD-718-04392
...
65
Coupling, .875 MTD-718-04395
...
65
Spider Bushing MTD-735-04103
...
66
Inlet Hose MTD-727-04130
...
67
Rubber Hydro Hose MTD-727-0502
...
68
45 DEGREE PIPE ELBOW MTD-737-0329
...
69
Inlet Filter MTD-737-04093
...
70
Rear Coupling Support Bracket MTD-781-0097-0637
...
71
Hex Washer Screw, 5.16-18 x 1.000 MTD-710-0602
...
72
Hex Washer Screw, 5.16-18 x .875 MTD-710-0650
...
73
Flange Lock Nut, 5.16-18 MTD-712-04063
...
74
Fender (Black, 510/570) MTD-731-2496A
...
74
Fender (Red, 550) MTD-731-2499A
...
75
Flat Washer, .343 x .880 x .062 MTD-736-0371
...
76
Complete Wheel Assembly MTD-634-0186
...
76
Wheel Assembly Not shown MTD-634-0186
...
76
Dust Seal Not shown MTD-921-0168
...
76
Cone Bearing Not shown MTD-941-04298
...
77
Slotted Nut, 3/4-16 MTD-712-0359
...
78
Cotter Pin, 5.32 x 1.25 MTD-714-0162
...
79
Hub Cap MTD-734-0873
...
80
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
81
Light Assembly Kit (570) MTD-625-0062
...
82
LIGHT BRACKET ASSEMBLY (LH)(POWDER BLACK) MTD-681-0164-0637
...
83
Jam Nut, 3.8-16 (570) MTD-912-3008
...
84
Flange Lock Nut, 5.16-18 (570) MTD-712-04063
...
85
RH Light Bracket (570) MTD-781-1027A-0637

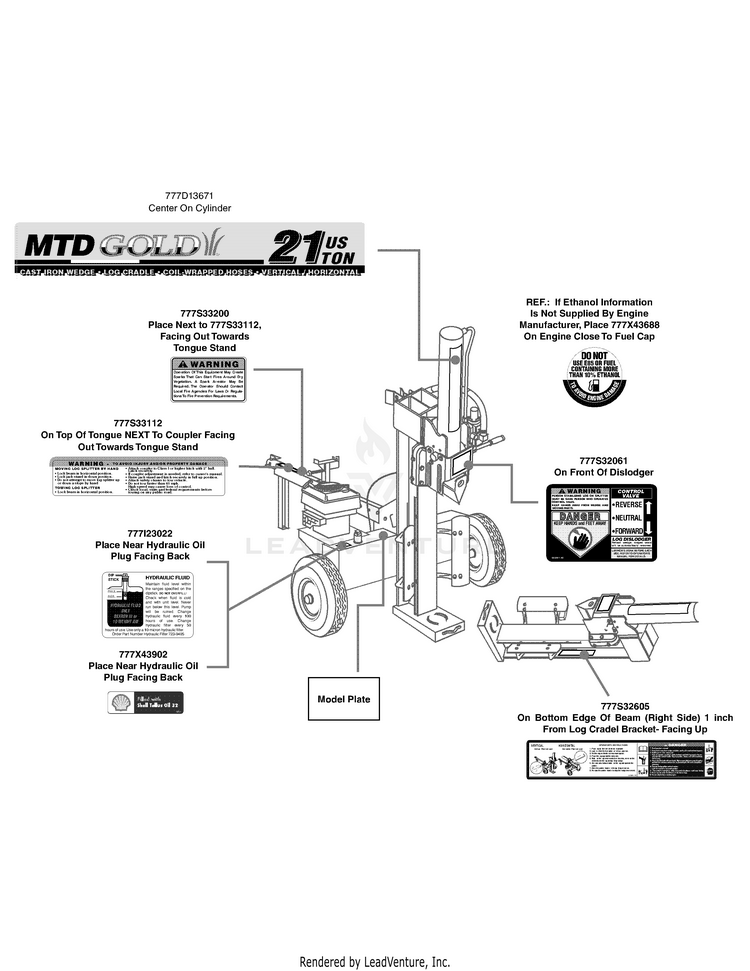

Label Map MTD Gold 510

...
...
777D13671
LABEL-LOGSPLITTER GOLD 21 TON MTD-777D13671
...
777S33200
LABEL-WARNING SPARKS MTD-777S33200
...
777S33112
LABEL-LOGSPLITTER TOW WARNING MTD-777S33112
...
777I23022
Label-Logsplitter MTD-777I23426
...
777X43902
LABEL-LOGSPLITTER SHELL PL-T32 MTD-NA
...
777S32605
LABEL-BEAM DNGR IN MTD-777S32605
...
777S32061
Label-Logsplitter MTD-777S33682
...
777X43688
LABEL-ETHANOL MTD-777X43688
