MTD Gold 21AB45M8704 (2015) Tiller

Model: 21AB45M8704 (2015)

Back To Assemblies

Save Part Not Listed?
product name

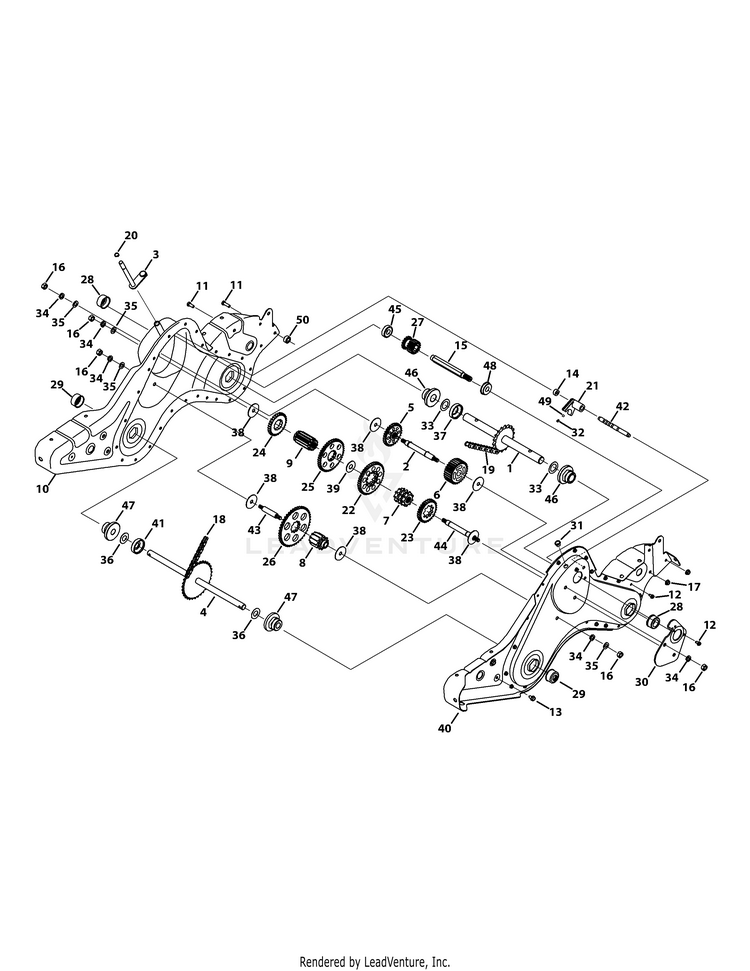

Transmission

...
...
1
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
2
Shaft Assembly, Jack MTD-611-0128
...
3
Shaft Assembly, Shift Input MTD-611-0129
...
4
Shaft Assembly, Wheel, 33T MTD-611-04074A
...
5
30T REVERSE IDLER GEAR ASSEMBLY MTD-617-0058A
...
6
GEAR ASSEMBLY (FORWARD TINE) MTD-917-0059B
...
7
SPROCKET ASSEMBLY TINE INPUT 9T MTD-617-0060A
...
8
Sprocket Assembly, 10T Whl Input MTD-617-0061
...
9
11T GEAR ASSEMBLY MTD-617-0062A
...
10
RH Chain Case Housing Assembly MTD-686-0108A-0637
...
11
Hex Head Screw, 5/16-18 x 100 MTD-710-0376
...
12
Screw, 1/4-20 x 0625 MTD-710-1652
...
13
SCREW 5/16-18 x .750 MTD-710-04484
...
14
Spacer, 505 ID x 88 OD x 440 MTD-750-0664
...
15
INPUT SHAFT MTD-711-1349B
...
16
Nut, Hex, 7/16-20 MTD-712-0378
...
17
Nut, Flangelock, 5/16-18 MTD-712-04063
...
18
Endless Chain, #420 x 50 Links MTD-913-0367
...
19
Endless Chain, #50 x 54 Links MTD-913-0484
...
20
Snap Ring, 500 MTD-716-0865
...
21
Clutch Collar MTD-717-0853A
...
22
SPUR GEAR 44T MTD-717-1582B
...
23
Gear Spur, 30T MTD-717-1583
...
24
Gear Spur, 30T MTD-717-1584
...
25
Gear Spur, 44T MTD-717-1585
...
26
Gear Spur, 44T MTD-717-1587
...
27
Gear Spur, 16T MTD-717-1594
...
28
Shaft Seal, 10 MTD-921-0378
...
29
Shaft Seal, 75 MTD-721-0379
...
30
Positioner Gear Bracket MTD-786-0238A
...
31
Tapered Cap Plug MTD-726-0277
...
32
Compression Spring, 230 OD MTD-732-04778
...
33
Washer, Flat, 103 x 162 x 03 MTD-936-0163
...
34
Washer, Lock, 7/16 MTD-936-0171
...
35
Fl-Wash. .469" I.D. x .88" MTD-736-0226
...
36
Washer, Flat, 760 ID x 150 OD MTD-936-0493
...
37
Spacer, 10 ID x 20 OD x5 LG MTD-950-0570
...
38
Washer, Thrust, 445 x 192 x 040 MTD-736-05030
...
39
Washer, Flat,1595 x 635 x 062 MTD-736-3088
...
40
LH Chain Case Housing MTD-686-04129-0637
...
41
Spacer, 75 x 20 x 50 MTD-950-0671
...
42
Shaft Detent, 5 DIA MTD-738-0645
...
43
Shaft, Jack, 625 x 2385 MTD-738-0648
...
44
JACK SHAFT-.625 x 5.00 x 7/16-20 MTD-738-04424A
...
45
Ball Bearing, 17 x 40 x 12:6203 MTD-941-0600
...
46
BEARING MTD-941-0420B
...
47
BEARING MTD-741-0421B
...
48
Ball Bearing, 17 x 40 x 12:6203 MTD-941-0563
...
49
DETENT BALL .250 MTD-741-0862
...
50
Spacer, 315 x 750 x 375 LG MTD-750-0258
...
xx
GEARCASE ASSEMBLY (not shown) MTD-986-04074G
