MTD Gold 21A-392A004 (2010) Tiller

Model: 21A-392A004 (2010)

Back To Assemblies

Save Part Not Listed?
product name

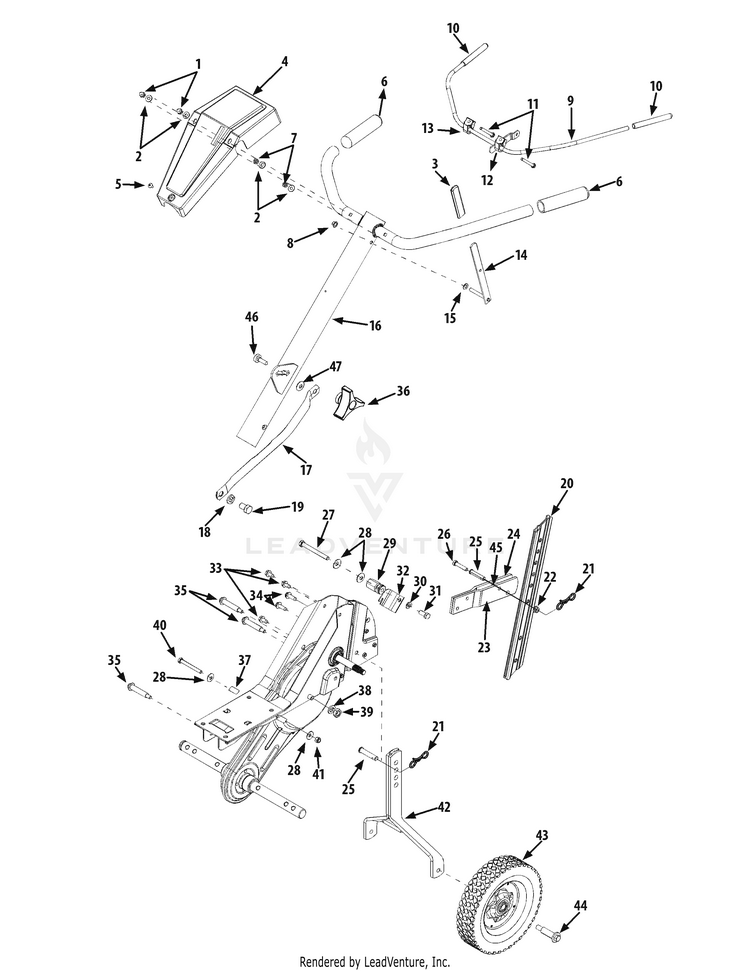

Handle, Depth Stake & Wheels

...
...
1
Acorn Lock Nut 1/4-20 MTD-712-0442
...
2
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
3
Reverse Handle Grip MTD-720-0270A
...
4
Handle Cover w/o throttle MTD-731-1600
...
5
Truss Machine Screw, #10 x 1/2" MTD-710-0779A
...
6
Handle Grip MTD-720-0274
...
7
HEX NUT MTD-712-3006
...
8
Cap Speed Nut MTD-726-0135
...
9
Clutch Handle Assembly MTD-686-0083-0637
...
10
Clutch Grip MTD-720-0269
...
11
Hex Bolt, 1/4-20 x 2.25" MTD-710-0641
...
12
HANDLE CLUTCH HOLDER MTD-931-1645B
...
13
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
14
Reverse Handle Assembly MTD-686-0014C-0637
...
15
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
16
Handle Assembly Complete MTD-649-04040-0691
...
17
Handle Brace MTD-749-1401A-0691
...
18
L-Wash. 1/2" I.D. MTD-736-0921
...
19
Hex Bolt, 1/2-20 MTD-710-3194
...
20
Depth Bar MTD-786-0005-0637
...
21
Cotter Pin, Bow Tie MTD-714-04043
...
22
Hex Flange L-Nut, 5/16-18 MTD-712-04063
...
23
Tail Piece Bracket, Left MTD-786-0003-0637
...
24
Tail Piece Bracket, Right MTD-786-0004-0637
...
25
Clevis Pin MTD-711-0415
...
26
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
27
Hex Bolt, 5/16-18 x 3" MTD-710-0189
...
28
Bell Washer, .340" x .872" MTD-736-0242
...
29
Hex Nut MTD-711-1036A
...
30
L-Washer, 5/16" MTD-936-0119
...
31
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
32
Cable Guide Bracket MTD-786-0129-0637
...
33
Hex Washer Screw, 5/16-18 x .62" MTD-710-0604A
...
34
Hex Washer TT-Tap Screw MTD-710-0602
...
35
Shoulder Bolt, 5/16-18 MTD-738-0934A
...
36
Hand Knob MTD-720-0195
...
37
Spacer MTD-750-0470
...
38
Lock Washer, 7/16 MTD-936-0171
...
39
Jam Nut, 7/16-20 MTD-912-0240
...
40
Hex Bolt, 5/16-18 x 2.75" MTD-710-0176
...
41
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
42
Wheel Hanger Bracket Assembly MTD-686-0081A-0637
...
43
Wheel, 8 x 1.75 MTD-734-1268
...
44
Shoulder Screw, .496 x 1.445 MTD-738-0929
...
45
Spacer MTD-750-0890
...
46
Carriage Bolt, 5/16-18 x 1 MTD-710-1236
...
47
Bell Washer, .34" MTD-736-0242
