MTD Gold 17AE2ACG004 (2009) Z-Series

Model: 17AE2ACG004 (2009)

Back To Assemblies

Save Part Not Listed?
product name

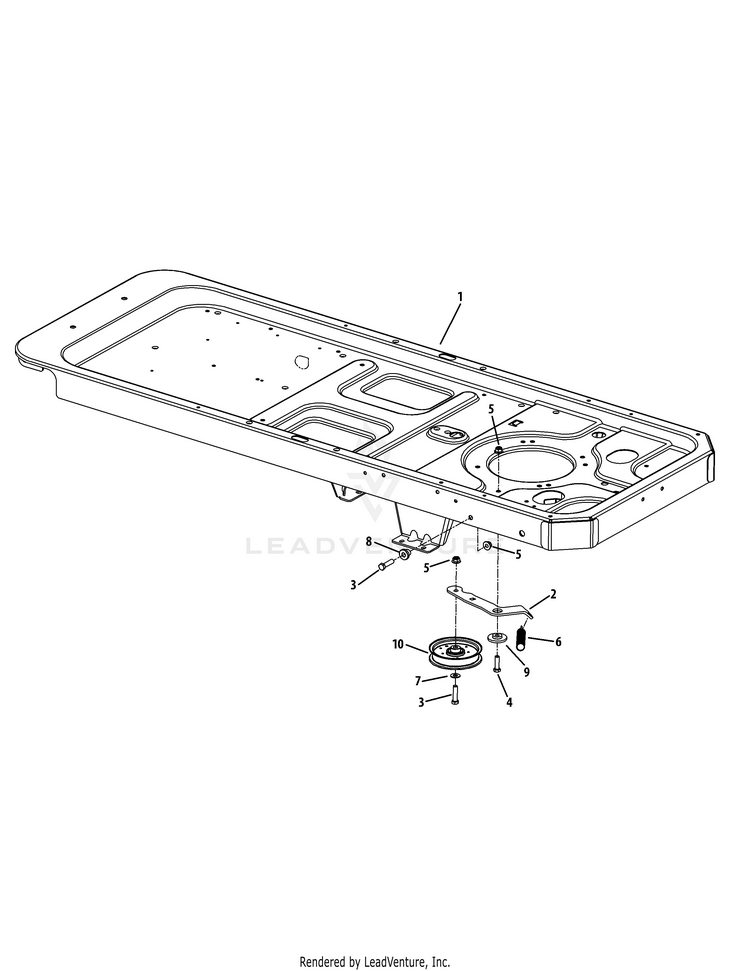

Frame & Drive Idler Assembly

...
...
1
RZT FRAME MTD-603-04680A
...
2
Idler Arm, Drive MTD-703-05829
...
3
Hex Screw, 3/8-16 x 1.5 MTD-710-0520
...
4
Hex Screw, 3/8-16 x 1.25 MTD-710-3005
...
5
Flange Nut, 3/8-16 MTD-712-04065
...
6
Extension Spring, .75 x 5.06 MTD-732-0626
...
7
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
8
Shoulder Spacer, .39 x 1.0 x .7 MTD-738-04058
...
9
Shoulder Spacer .884 x .190 MTD-738-04162C
...
10
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
