MTD Gold 17AE2ACG004 (2009) Z-Series

Model: 17AE2ACG004 (2009)

Back To Assemblies

Save Part Not Listed?
product name

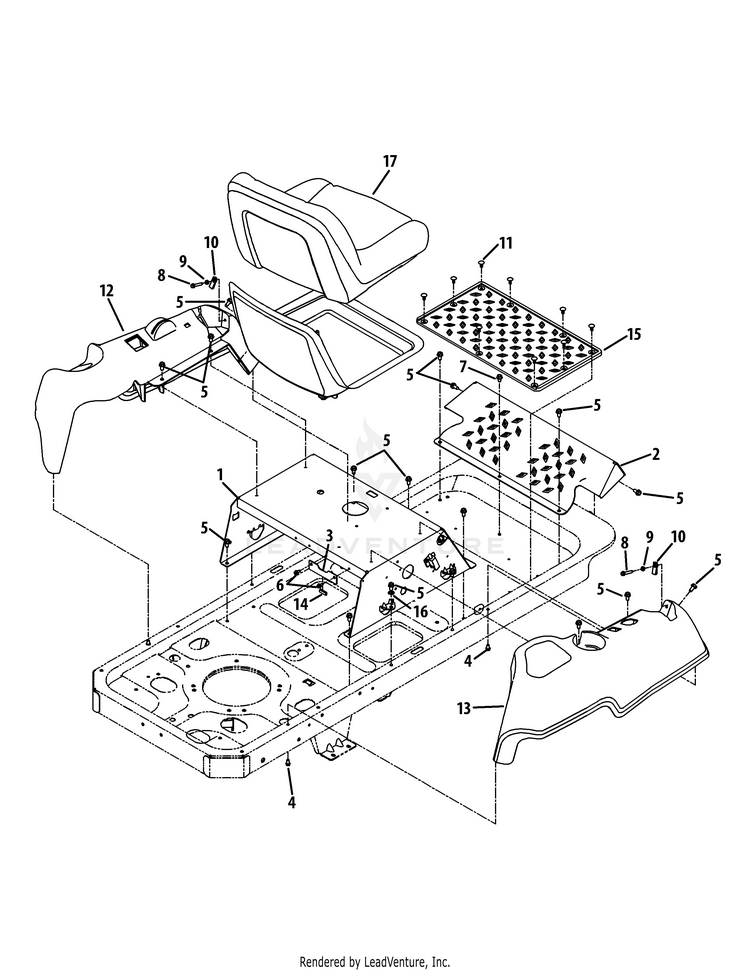

Operator's Platform

...
...
1
SEAT FRAME ASSEMBLY (BLACK JACK) replace with (1) 603-04946-0691 Seat Frame Assembly; (1) 703-08734-0691 Seat Pivot Bracket; (2) 732-04849 Compression Seat Springs. MTD-603-04663-0691
...
1
SEAT FRAME ASSEMBLY (BLACK JACK) MTD-603-04946-0691
...
1
SEAT PIVOT BRACKET(BLACK JACK) (Not shown) MTD-703-08734-0691
...
1
Compression Seat Spring (Not shown) MTD-732-04849
...
2
FOOT REST BRACKET (BLACK JACK) MTD-703-05373B-0691
...
3
Battery Hold-Down Bracket MTD-703-05894-0637
...
4
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
7
Hex Washer Screw, 5/16-18 x .625 MTD-710-0604A
...
8
Hex Washer Screw, 1/4-20 x 1.500 MTD-710-0778
...
9
Jam Nut, 1/4-20 MTD-912-0298
...
10
U-Type Nut, 1/4-20 MTD-712-04092
...
11
Ratchet Clip MTD-726-3046
...
12
CONSOLE (LH) MTD-731-04662E
...
13
CONSOLE (RH) MTD-731-04663D
...
14
Trim Strip MTD-731-0511
...
15
Foot Pat MTD-735-04082C
...
16
Lock Washer, 3/8 MTD-736-0148
...
17
HI BACK SEAT, BLACK (ARM/OPT) MTD-757-05231
