MTD Gold 14AT808H300 (2003) Garden Tractor

Model: 14AT808H300 (2003)

Back To Assemblies

Save Part Not Listed?
product name

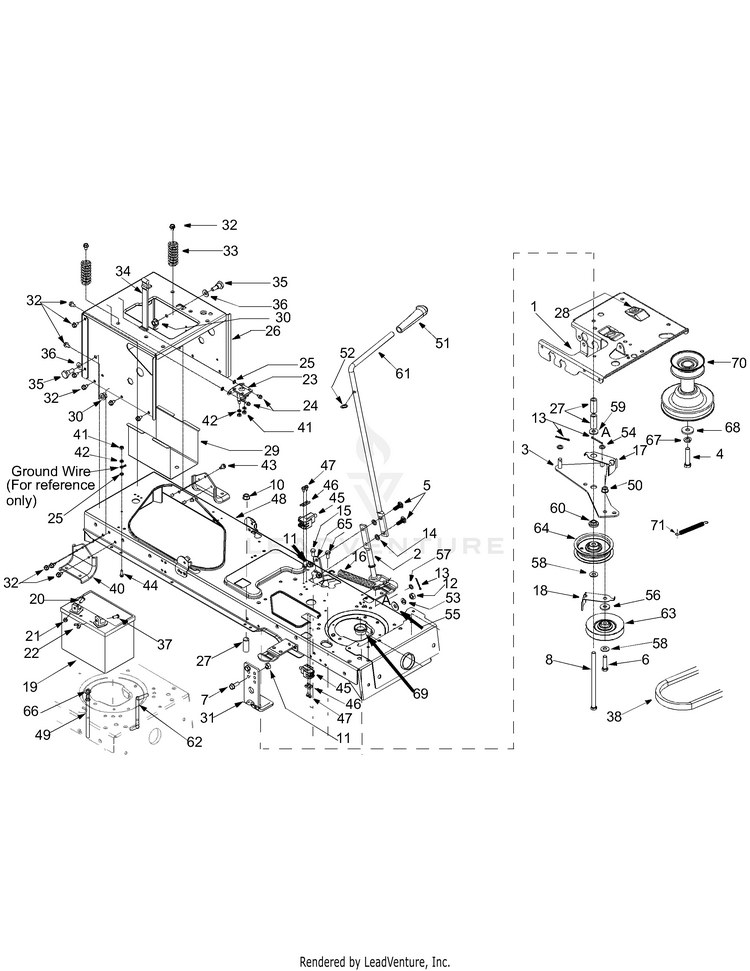

PTO, Battery, Frame

...
...
1
Steering Support Bracket MTD-783-04612-0637
...
2
ENGAGEMENT LEVER ASSEMBLY MTD-647-0064
...
3
Engagement Plate Assembly MTD-983-04060
...
4
Hex Bolt 7/16-20 x 2.0 MTD-710-1002
...
5
Carriage Screw 5/16-18 x 1.0 MTD-710-0276
...
6
Hex Screw 3/8-16 x 1.5 MTD-710-0344
...
7
Screw, 5/16 x .75 MTD-710-0726
...
8
Hex Screw 3/8-16 x 7.0 MTD-710-3261
...
10
Flange Lock Nut 3/8-16 MTD-912-0431
...
11
HEX FLANGE NUT MTD-712-3004A
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Cotter Pin MTD-714-0470
...
14
Speed Nut MTD-726-0201
...
15
Hex Cap Screw 5/16-18 x .625 MTD-710-3025
...
16
Extension Spring MTD-732-0944
...
17
BELT GUARD MTD-732-0991A
...
18
Belt Guard MTD-732-1013A
...
19
BATTERY MTD-925-1707D
...
20
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
21
Hex Sems Nut, 1/4-20 MTD-712-0271
...
22
WING NUT 1/4-20 MTD-712-3087
...
23
Solenoid MTD-925-1426A
...
24
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
25
Lock Washer, 1/4 MTD-736-0222
...
26
UPPER HITCH PLATE MTD-783-1033A
...
27
SPACER .385ID x 1.54" MTD-748-0415B
...
28
Hex Split Flange Bearing MTD-741-0708
...
29
BATTERY TRAY MTD-783-0349
...
30
Flange Lock Nut, 7/16-20 MTD-712-0459
...
31
DECK UP STOP BRACKET MTD-783-04467
...
32
Self Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
33
Compression Spring MTD-732-3080A
...
34
BATTERY STRAP MTD-723-0444
...
35
Shoulder Screw, .625 x .5, 7/16-20 MTD-738-1020
...
36
Bell Washer, .45 x 1.0 x .062 MTD-736-0407
...
37
Shoulder Screw MTD-738-1132
...
38
PTO Belt MTD-954-0228
...
40
AXLE BRACKET MTD-783-0693A-0637
...
41
HEX NUT MTD-712-3006
...
42
L-Wash. 1/4" I.D. MTD-936-0329
...
43
TT Screw 5/16-18 x 0.5 MTD-710-0607
...
44
TT Screw 1/4-20 x 0.75 MTD-710-0642
...
45
Safety Switch MTD-925-1657A
...
46
Switch Plate MTD-17962
...
47
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
48
LOWER FRAME ASSEMBLY MTD-683-0304C
...
49
BELT GUARD PIN MTD-911-1428
...
50
Push Nut Retainer MTD-712-0229
...
51
PTO KNOB MTD-731-2111B
...
52
Flat Washer MTD-736-0108
...
53
Lock Wash. 5/16" I.D. MTD-936-0119
...
54
Flat Washer MTD-736-0140
...
55
Bell Washer MTD-736-0242
...
56
Flat Washer MTD-736-0258
...
57
FLAT WASHER MTD-736-0275
...
58
Flat Washer MTD-736-0300
...
59
Flat Washer MTD-736-3072
...
60
Shoulder Spacer MTD-738-0372B
...
61
PTO ENGAGEMENT HANDLE MTD-747-1112D-0637
...
62
BELT KEEPER ROD MTD-747-1243
...
63
Idler Pulley MTD-756-0487
...
64
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
65
Bracket MTD-783-0744A
...
66
Lock Wash. 5/16" I.D. MTD-936-0119
...
67
Lock Washer MTD-736-0171
...
68
Flat Washer MTD-736-0322
...
69
Spacer MTD-750-0956
...
70
Engine Pulley MTD-756-1182A
...
71
SPR:EXTN:.50 DIA X 5.0 LG See mower deck Hooks to side of frame and idler plate MTD-732-04197
